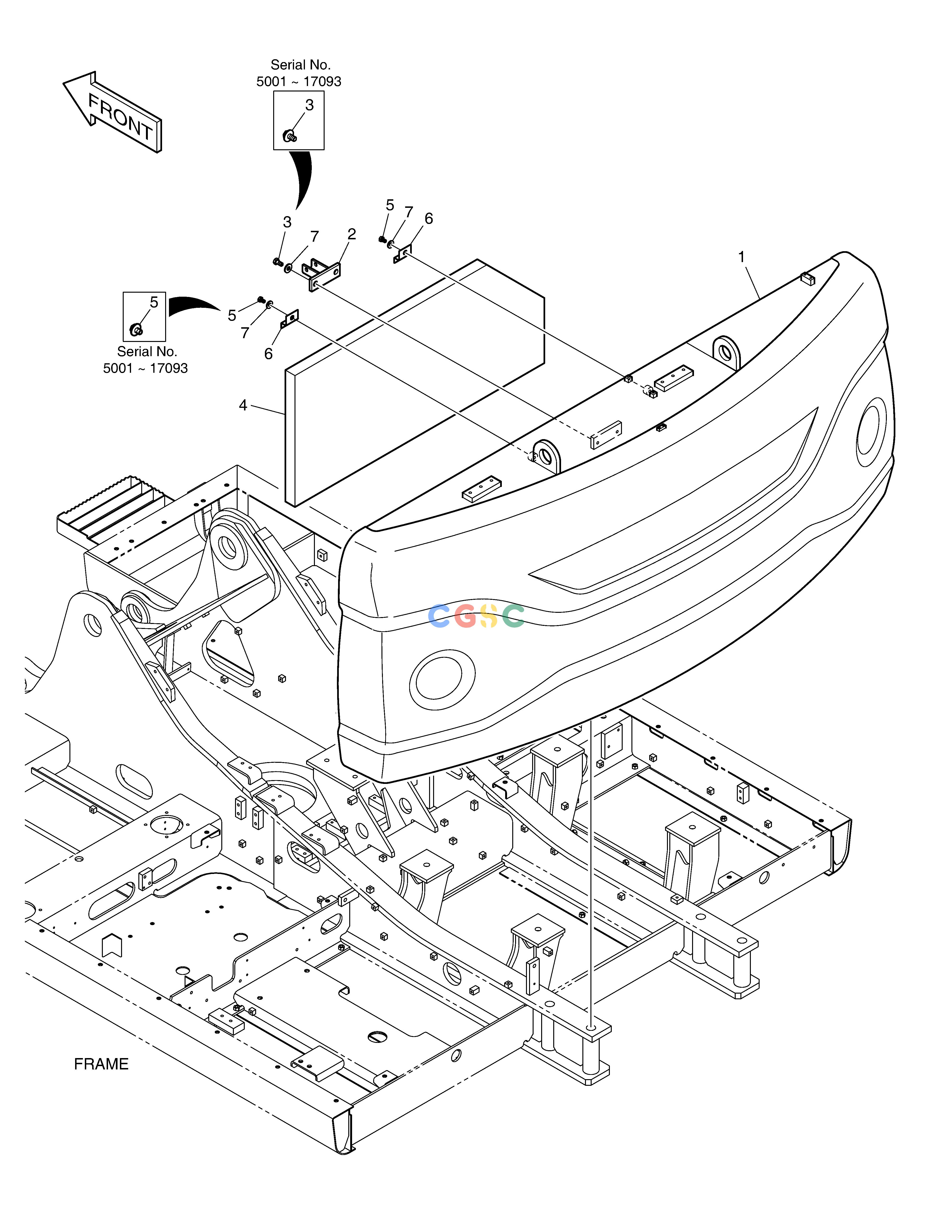

斗山零件查询COUNTER WEIGHT - 3.8TON(NOISE KIT - DX220A) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160702-00629
|
[1] |
|
|
| -. |
160702-00629A
|
[1] |
|
160702-00629B
|
| -. |
160702-00629B
|
[1] |
|
160702-00629C
|
| -. |
160702-00629C
|
[1] |
|
160702-00629E
|
| -. |
160702-00629E
|
[1] |
|
|
| 1. |
160702-00630
|
[1] |
|
|
| 2. |
K1002454B
|
[1] |
BRACKET
|
|
| 3. |
DS0025015
|
[2] |
BOLT
|
|
| 3. |
S0515066
|
[2] |
BOLT
|
|
| 4. |
K1011304
|
[1] |
FOAM
|
|
| 5. |
DS0025022
|
[2] |
BOLT
|
|
| 5. |
S0514866
|
[2] |
BOLT
|
|
| 6. |
621-01572
|
[2] |
PLATE
|
|
| 7. |
120804-00079
|
[4] |
WASHER
|
|
