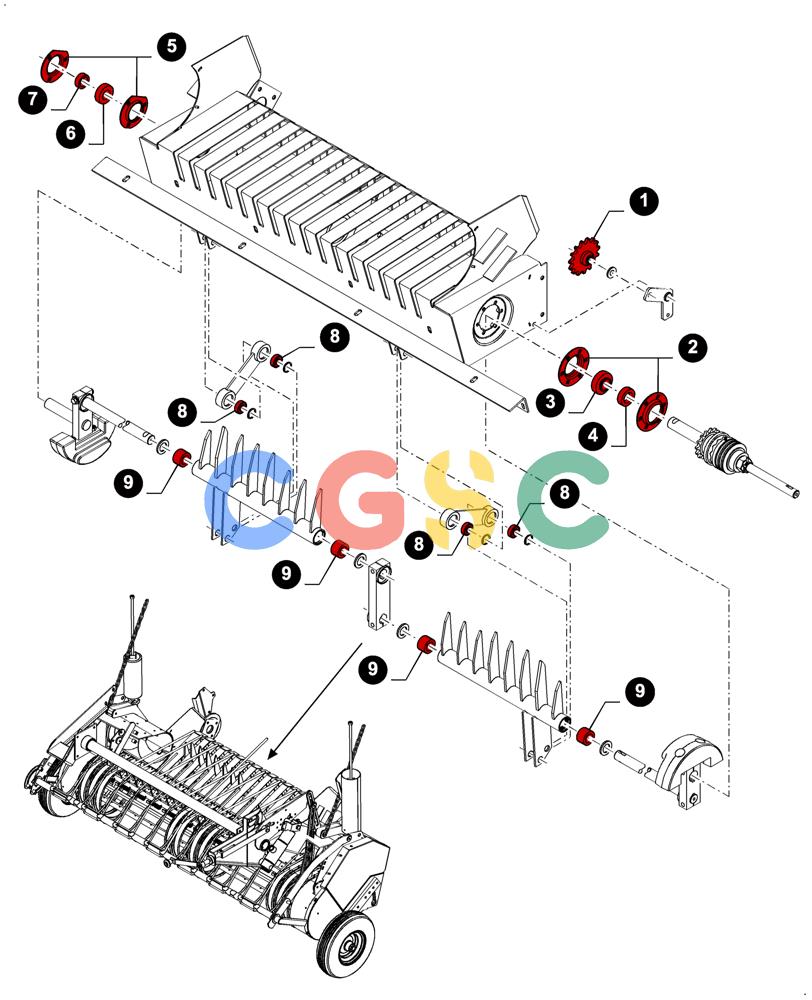

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (00.00RB212) - MAINTENANCE PARTS, STUFFER FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
428 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
165271
|
[1] |
DRIVEN SPROCKET
|
NH
Idler Superseded by part number: 86627870, 80165271
|
| 2. |
86635012
|
[2] |
FLANGE
|
NH
|
| 3. |
571588R92
|
[1] |
BALL BEARING,1.3755" ID x 72 mm OD x 1"
|
IH
Superseded by part number: 47066
|
| 4. |
517645R11
|
[1] |
COLLAR
|
IH
Locking, Includes set-screw Superseded by part number: 47577188
|
| 5. |
87758678
|
[2] |
FLANGE
|
PA
|
| 6. |
617668R92
|
[1] |
BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"
|
IH
Ball Superseded by part number: 84484181
|
| 7. |
557995R11
|
[1] |
COLLAR
|
IH
Locking, Includes set-screw Superseded by part number: 47508396
|
| 8. |
T39594
|
[4] |
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
|
CAS
Superseded by part number: 87029275
|
| 9. |
87038966
|
[4] |
BUSHING,220mm ID x 270mm OD x 93mm L
|
PA
|
