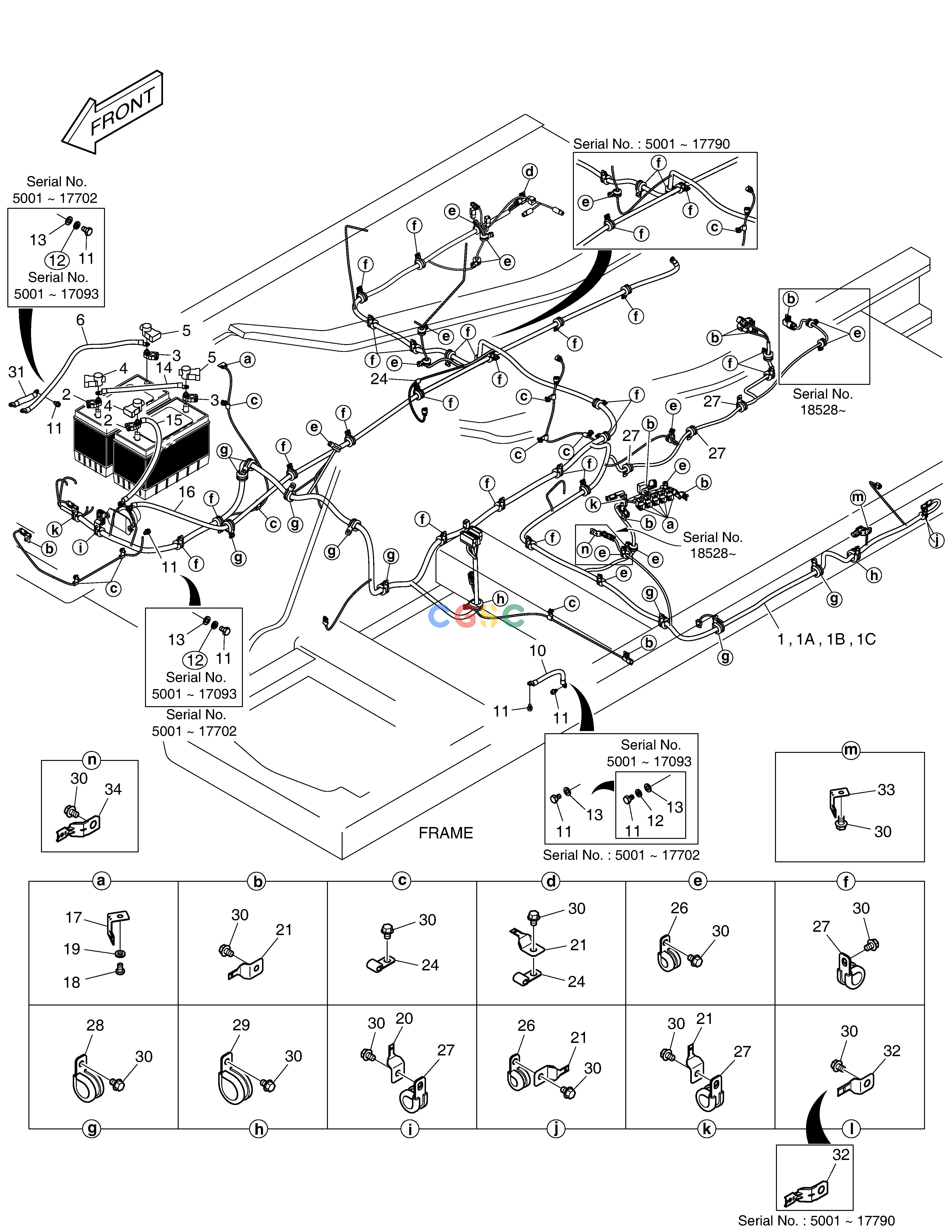

斗山零件查询ELECTRIC WIRING - ROPS DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
772 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02812
|
[-] |
|
|
| 1. |
310207-03553A
|
[1] |
|
|
| 1. |
310207-03553B
|
[1] |
|
|
| 1. |
310207-03553C
|
[1] |
|
|
| 10. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 11. |
S0511653
|
[4] |
BOLT
|
|
| 11. |
120106-00701
|
[4] |
BOLT
|
|
| 12. |
S5102603
|
[4] |
. WASHER
|
|
| 13. |
S5010613
|
[4] |
WASHER
|
|
| 13. |
120804-00076
|
[4] |
WASHER
|
|
| 14. |
2553-1275D46
|
[1] |
CABLE;BATT-BATT
|
|
| 15. |
2553-1275D69
|
[1] |
CABLE;BATTERY RELAY
|
|
| 16. |
2553-1275D81
|
[1] |
CABLE;BATT RY-STARTER
|
|
| 17. |
2195-3500
|
[1] |
BRACKET
|
|
| 18. |
S0504453
|
[1] |
BOLT
|
|
| 19. |
S5102303
|
[1] |
. WASHER
|
|
| 1A. |
K1000814
|
[1] |
DIODE
|
|
| 1B. |
K1000815
|
[1] |
DIODE
|
|
| 1C. |
300617-00044
|
[1] |
|
|
| 2. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 20. |
2197-1660
|
[1] |
BRACKET
|
|
| 21. |
2197-1661
|
[12] |
BRACKET
|
|
| 21. |
2197-1661
|
[11] |
BRACKET
|
|
| 24. |
2124-1509D1
|
[9] |
CLIP
|
|
| 24. |
2124-1509D1
|
[10] |
CLIP
|
|
| 26. |
124-00208D2
|
[14] |
CLAMP
|
|
| 26. |
124-00208D2
|
[11] |
CLAMP
|
|
| 27. |
124-00208D3
|
[29] |
CLIP
|
|
| 28. |
124-00208D4
|
[9] |
CLIP
|
|
| 29. |
124-00208D5
|
[2] |
CLIP
|
|
| 3. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 30. |
K1001029
|
[74] |
BOLT
|
|
| 30. |
K1001029
|
[69] |
BOLT
|
|
| 31. |
310203-00020
|
[1] |
|
|
| 32. |
110406-02760A
|
[1] |
BRACKET
|
|
| 32. |
K1026565
|
[1] |
BRACKET
|
|
| 33. |
110406-01536
|
[5] |
|
|
| 34. |
110406-02760A
|
[1] |
BRACKET
|
|
| 4. |
2160-1212
|
[2] |
CAP,BATT. TML(+)
|
|
| 5. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
| 6. |
2553-1275D78
|
[1] |
CABLE;PUMP-BATT RELAY
|
|
