纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (10-015-00[01]) - HYDRAULIC MOTOR - VIBRATION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
729 次

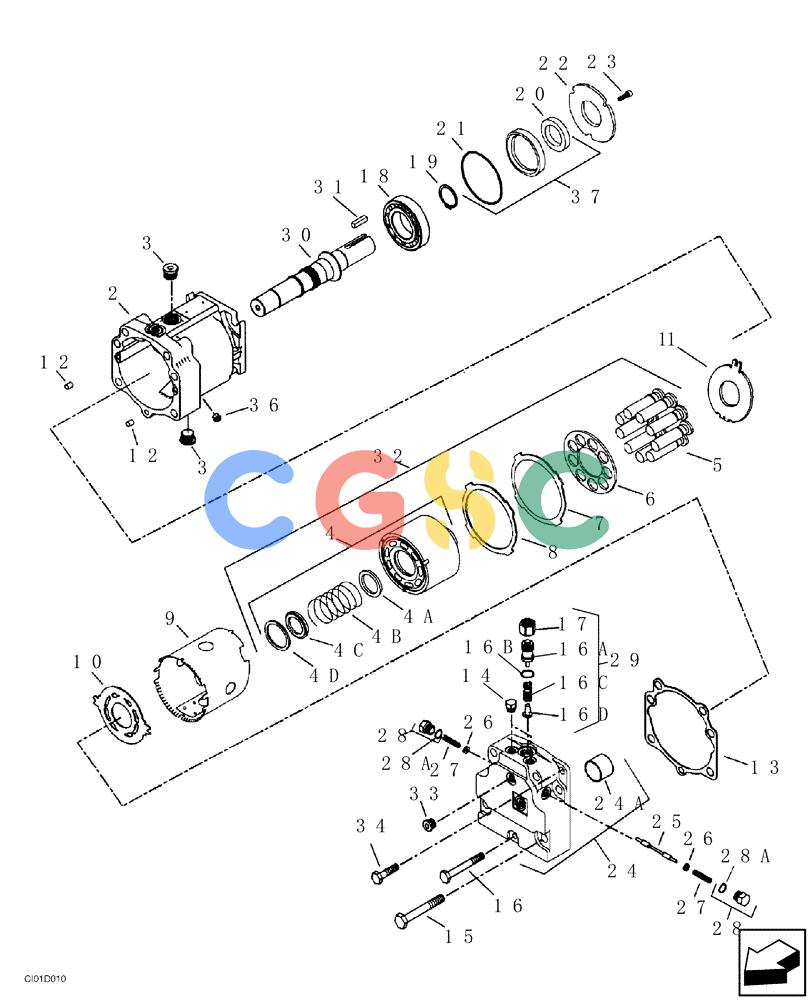

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ND090930 | [1] | HYDRAULIC MOTOR | STA |
| 2. | ND102598 | [1] | BOX | STA |
| 3. | ND102661 | [2] | PLUG | STA |
| 4. | ND102581 | [1] | CYLINDER BLOCK | STA |
| 4A. | ND102574 | [1] | SPRING | STA |
| 4B. | ND102575 | [1] | SPRING | STA |
| 4C. | ND102578 | [1] | SPRING CUP | STA |
| 4D. | ND102665 | [1] | RING | STA |
| 5. | ND102358 | [9] | PISTON | STA |
| 6. | ND102573 | [1] | PLATE | STA |
| 7. | ND102576 | [1] | SHIM | STA |
| 8. | ND102577 | [1] | SHIM | STA |
| 9. | ND102592 | [1] | HOUSING | STA |
| 10. | ND102583 | [1] | PLATE | STA |
| 11. | ND102594 | [1] | PLATE | STA |
| 12. | ND102656 | [2] | PIN | STA |
| 13. | ND102586 | [1] | GASKET | STA |
| 14. | ND102658 | [2] | PLUG | STA |
| 15. | ND102670 | [4] | SCREW | STA |
| 16. | ND102668 | [1] | SCREW | STA |
| 16A. | ND102387 | [1] | SCREW | STA |
| 16B. | ND102655 | [1] | O-RING | STA |
| 16C. | ND102628 | [1] | SPRING | STA |
| 16D. | ND102626 | [1] | CONE | STA |
| 17. | ND102645 | [1] | NUT | STA |
| 18. | ND102367 | [1] | BALL BEARING | STA Superseded by part number: 379438R91 |
| 19. | ND102666 | [1] | SNAP RING | STA |
| 20. | ND102679 | [1] | SEAL | STA |
| 21. | ND102651 | [1] | O-RING | STA |
| 22. | ND102585 | [1] | PLATE | STA |
| 23. | ND102673 | [3] | SCREW | STA |
| 24. | ND102602 | [1] | COVER | STA |
| 24A. | ND102621 | [1] | BUSHING | STA |
| 25. | ND102630 | [1] | PISTON | STA |
| 26. | ND102631 | [1] | SPRING CUP | STA |
| 27. | ND102364 | [2] | SPRING | STA |
| 28. | ND102422 | [2] | PLUG | STA |
| 28A. | ND102654 | [2] | O-RING | STA |
| 29. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 30. | ND102599 | [1] | SHAFT | STA |
| 31. | ND102643 | [1] | KEY | STA |
| 32. | ND102609 | [1] | ROTOR | STA |
| 33. | ND102660 | [1] | PLUG | STA |
| 34. | ND102669 | [1] | SCREW | STA |
| 37. | ND102596 | [1] | SEAL KIT | STA |
| . . | ND102610 | [1] | SEAL KIT | STA |
