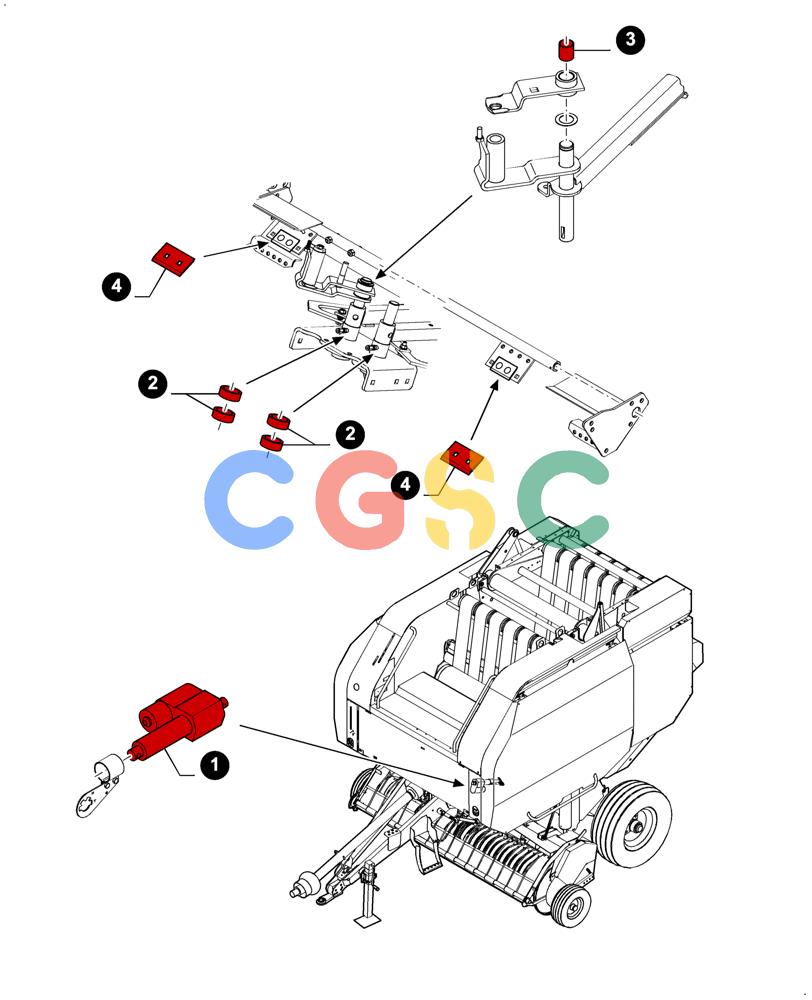

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (00.00RB220) - MAINTENANCE PARTS, TWINE WRAP Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
724 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9843435
|
[1] |
ACTUATOR
|
NH
Twine wrap
|
| . . |
9843435R
|
[1] |
REMAN-ELECTRIC ACTUATOR
|
NH
RB454, RB464 Both (7/07-)
|
| . . |
9843435C
|
[1] |
CORE-ELECTRIC ACTUATOR
|
NH
Return Number
|
| 2. |
182294
|
[4] |
DRIVE BUSHING,25.1mm ID x 28.6mm OD x 25.4mm L
|
NH
Twine arm pivot
|
| 3. |
86628558
|
[1] |
BUSHING,25.45mm ID x 28.68mm OD x 31.75mm L
|
NH
Twine arm drive bracket
|
| 4. |
617945
|
[2] |
KNIFE SECTION
|
NH
Twine cutting
|
