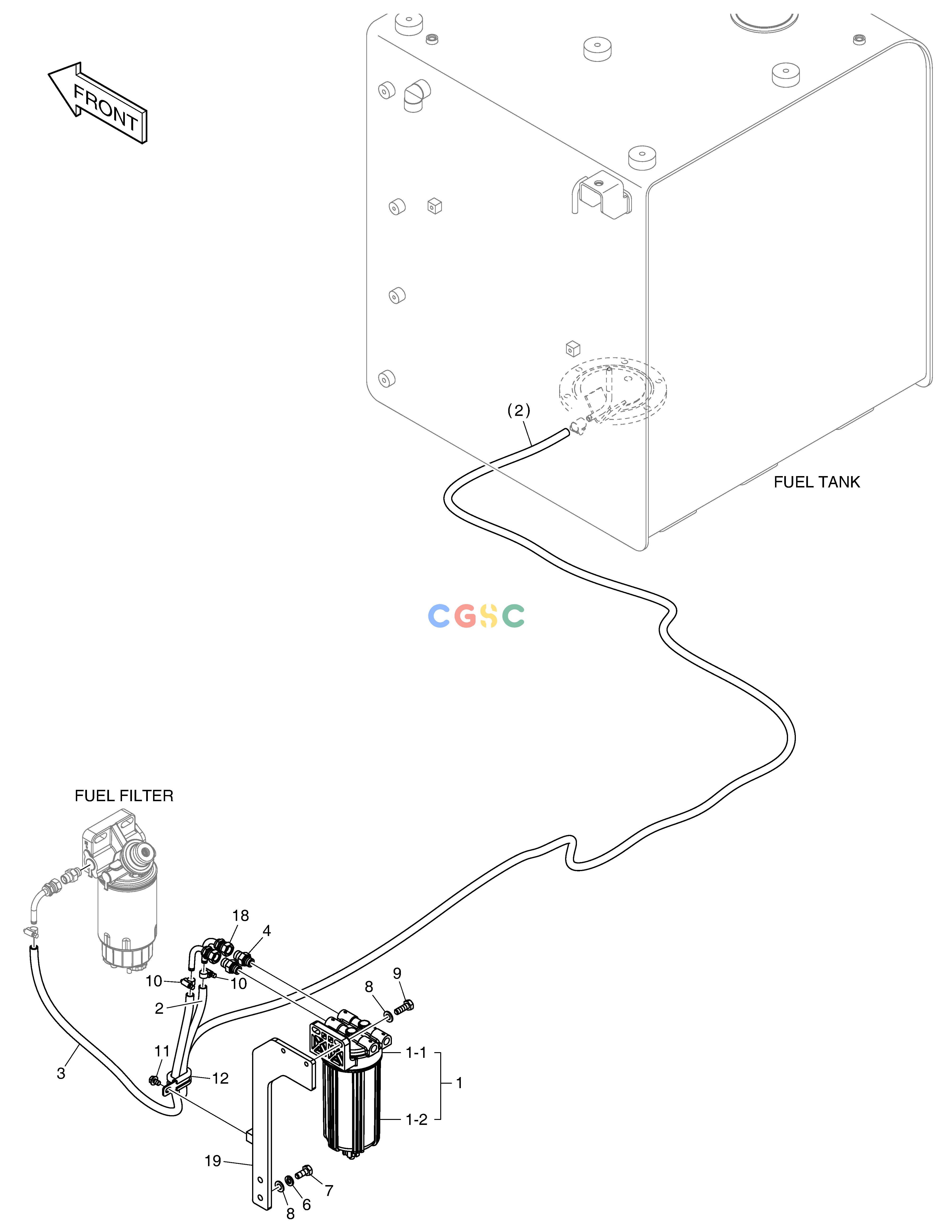

斗山零件查询FUEL PIPING - DUAL PRE FILTER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
909 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13981
|
[-] |
|
|
| 1. |
240304-00025A
|
[1] |
|
240304-00025B
|
| 1. |
240304-00025B
|
[1] |
|
|
| 1-1. |
400612-00083
|
[1] |
. GASKET
|
|
| 1-2. |
400508-00104
|
[1] |
. CARTRIDGE
|
|
| 10. |
S8470014
|
[2] |
CLAMP
|
|
| 11. |
K1001029
|
[1] |
BOLT
|
|
| 12. |
124-00209D1
|
[1] |
CLIP
|
|
| 18. |
K1002864
|
[2] |
ELBOW
|
|
| 19. |
110413-00188
|
[1] |
|
|
| 2. |
DS2105026
|
[1] |
HOSE
|
|
| 3. |
DS2105029
|
[1] |
HOSE D8.73-D15.08-580L
|
DS2105109
|
| 3. |
DS2105109
|
[1] |
|
|
| 4. |
DS2479004
|
[2] |
ADAPTER
|
|
| 6. |
S5102603
|
[2] |
. WASHER
|
|
| 7. |
S0512066
|
[2] |
. BOLT
|
|
| 8. |
120804-00076
|
[4] |
WASHER
|
|
| 9. |
S0512266
|
[2] |
BOLT
|
|
