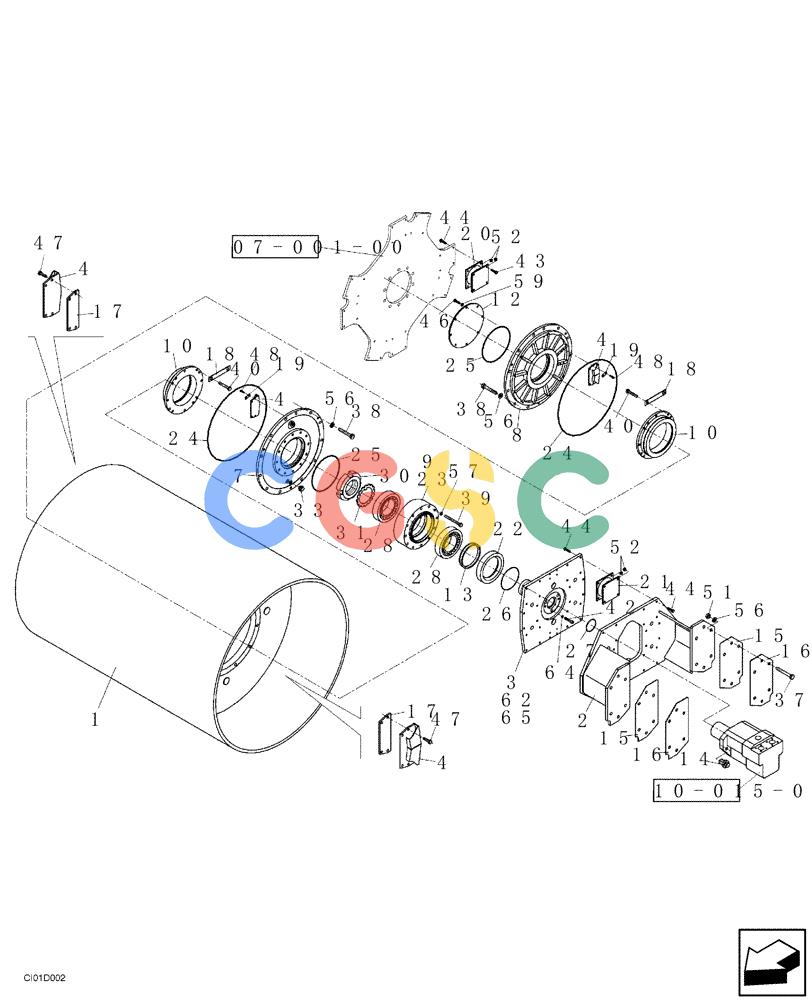

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (12-008-00[01]) - VIBRATORY DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND011848 | [1] | DRUM | STA |
| 2. | ND018616 | [1] | SUPPORT | STA |
| 3. | ND012007 | [1] | PLATE | STA |
| 4. | ND030914 | [4] | OILER | STA |
| 7. | ND011710 | [1] | COVER | STA |
| 8. | ND011785 | [1] | COVER | STA |
| 9. | ND018184 | [1] | HUB | STA |
| 10. | ND024347 | [2] | FLANGE | STA |
| 12. | ND031193 | [1] | COVER | STA |
| 13. | ND029017 | [1] | RING | STA |
| 14. | ND054715 | [2] | SCREW | STA |
| 15. | ND052831 | [6] | SPACER | STA |
| 16. | ND052829 | [2] | SPACER | STA |
| 17. | ND031828 | [2] | PLATE | STA |
| 18. | ND042357 | [8] | WASHER | STA |
| 19. | ND052827 | [8] | WASHER | STA |
| 20. | ND090010 | [8] | PAD | STA |
| 21. | ND090009 | [6] | PAD | STA Superseded by part number: ND106544 |
| 22. | ND079060 | [1] | OIL SEAL | STA210 x 240 x 15 |
| 23. | ND068985 | [1] | RING | STA |
| 24. | ND053110 | [2] | O-RING | STA650 x 5 Superseded by part number: ND108238 |
| 25. | ND050406 | [2] | O-RING | STA Superseded by part number: ND108239 |
| 26. | ND052113 | [1] | O-RING | STA190 x 3 Superseded by part number: ND108235 |
| 27. | ND050390 | [1] | RING | STA127 x 3 Superseded by part number: ND108236 |
| 28. | ND069049 | [2] | BALL BEARING,130mm ID x 180mm OD x 32mm W | STA |
| 30. | ND069123 | [1] | NUT | STAM130 x 2 |
| 31. | ND069141 | [1] | WASHER | STA |
| 33. | ND065651 | [4] | PLUG | STA |
| 35. | ND103371 | [1] | HYDRAULIC MOTOR | STA |
| 37. | ND021249 | [12] | BOLT | STAM20 x 120 |
| 38. | ND021243 | [24] | BOLT | STAM20 x 70 |
| 39. | ND021236 | [12] | BOLT | STAM16 x 130 |
| 40. | ND021333 | [16] | BOLT | STAM16 x 50 |
| 42. | ND024285 | [3] | BOLT | STAM14 x 25 |
| 43. | ND021210 | [32] | BOLT | STAM12 x 50 |
| 44. | ND021312 | [80] | BOLT | STAM12 x 40 |
| 46. | ND021309 | [8] | BOLT | STAM12 x 25 |
| 47. | ND021295 | [8] | BOLT | STAM8 x 25 |
| 48. | ND021293 | [8] | BOLT | STAM8 x 16 |
| 51. | ND021853 | [12] | NUT | STAM20 |
| 52. | ND034086 | [112] | NUT | STAM12 |
| 56. | ND035944 | [36] | WASHER | STAID 20 |
| 57. | ND035943 | [12] | WASHER | STAID 16 |
| 59. | ND035942 | [8] | WASHER | STAID 12 |
| 62. | ND064202 | [1] | HYD CONNECTOR | STA Superseded by part number: ND104623 |
| 64. | ND073356 | [3] | PACKING RING | STA14 x 18 x 1,5 |
| 65. | ND073350 | [1] | SEAL | STA10 x 16 x 1 |
