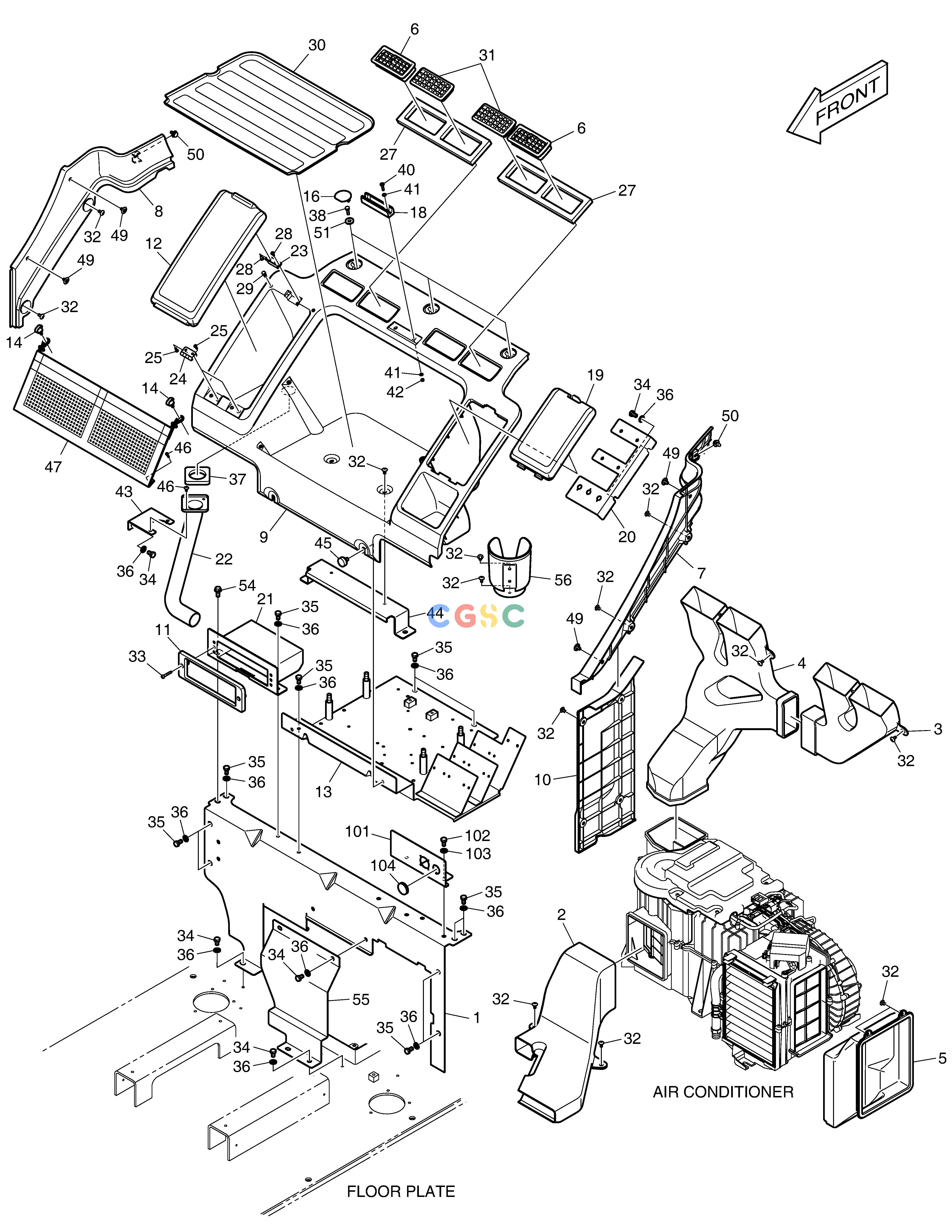

斗山零件查询HEATER COVER - ROPS DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
112 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220204-00290B
|
[-] |
|
|
| 1. |
250120-00138
|
[1] |
|
|
| 10. |
220204-00169A
|
[1] |
|
|
| 101. |
250120-00040
|
[1] |
|
|
| 102. |
2120-2166D25
|
[2] |
BOLT
|
|
| 103. |
2114-1898D14
|
[2] |
WASHER
|
|
| 104. |
K1026510
|
[1] |
CAP;RUBBER
|
|
| 11. |
220204-00016C
|
[1] |
|
|
| 12. |
220204-00011E
|
[1] |
|
|
| 13. |
250120-00015C
|
[1] |
|
|
| 14. |
120705-00084A
|
[2] |
|
|
| 16. |
110508-00204E
|
[3] |
|
|
| 18. |
250122-00008A
|
[1] |
|
|
| 19. |
220204-00012E
|
[1] |
|
|
| 2. |
460103-00039B
|
[1] |
DUCT,FOOT
|
|
| 20. |
250105-00048A
|
[1] |
|
|
| 21. |
250120-00003B
|
[1] |
|
|
| 22. |
460103-00020B
|
[1] |
|
|
| 23. |
2125-1095A
|
[1] |
CATCH
|
|
| 24. |
110927-00026
|
[2] |
|
|
| 25. |
S3452573
|
[8] |
SCREW M4X0.7X10
|
|
| 27. |
180102-00052A
|
[2] |
|
|
| 28. |
S3644163
|
[4] |
SCREW
|
|
| 29. |
K1002385
|
[2] |
STOPPER
|
|
| 3. |
460103-00015B
|
[1] |
|
|
| 30. |
101555-00019B
|
[1] |
|
|
| 31. |
101546-00011
|
[2] |
LOUVER
|
|
| 32. |
2120-2166D52
|
[22] |
. BOLT
|
|
| 33. |
2120-2166D15
|
[2] |
BOLT
|
|
| 34. |
2120-2166D12
|
[9] |
BOLT
|
|
| 35. |
2120-2166D25
|
[12] |
BOLT
|
|
| 36. |
2114-1898D14
|
[21] |
WASHER
|
|
| 37. |
180102-00881
|
[1] |
FOAM
|
|
| 38. |
2120-2166D36
|
[3] |
BOLT
|
|
| 4. |
460103-00012B
|
[1] |
|
|
| 40. |
2120-2166D23
|
[2] |
SCREW
|
|
| 41. |
2114-1898D4
|
[4] |
WASHER
|
|
| 42. |
S4012233
|
[2] |
NUT
|
|
| 43. |
110423-00011
|
[1] |
|
|
| 44. |
250120-00011
|
[1] |
|
|
| 45. |
K1003427
|
[2] |
BOLT
|
|
| 46. |
2120-2166D53
|
[4] |
. SCREW
|
|
| 47. |
101551-00003A
|
[1] |
|
|
| 49. |
K1006933
|
[4] |
SCRIVET
|
|
| 5. |
460103-00014B
|
[1] |
|
|
| 50. |
2124-1607
|
[2] |
CLIP;TRIM
|
|
| 51. |
120808-00070
|
[3] |
|
|
| 54. |
S2008856
|
[1] |
BOLT M8X1.25X20
|
|
| 55. |
250120-00073
|
[1] |
|
|
| 56. |
110929-00003C
|
[1] |
|
|
| 6. |
415-00043B
|
[2] |
NOZZLE;REAR
|
|
| 7. |
220204-00009E
|
[1] |
|
|
| 8. |
220204-00010E
|
[1] |
|
|
| 9. |
220204-00310
|
[1] |
|
|
