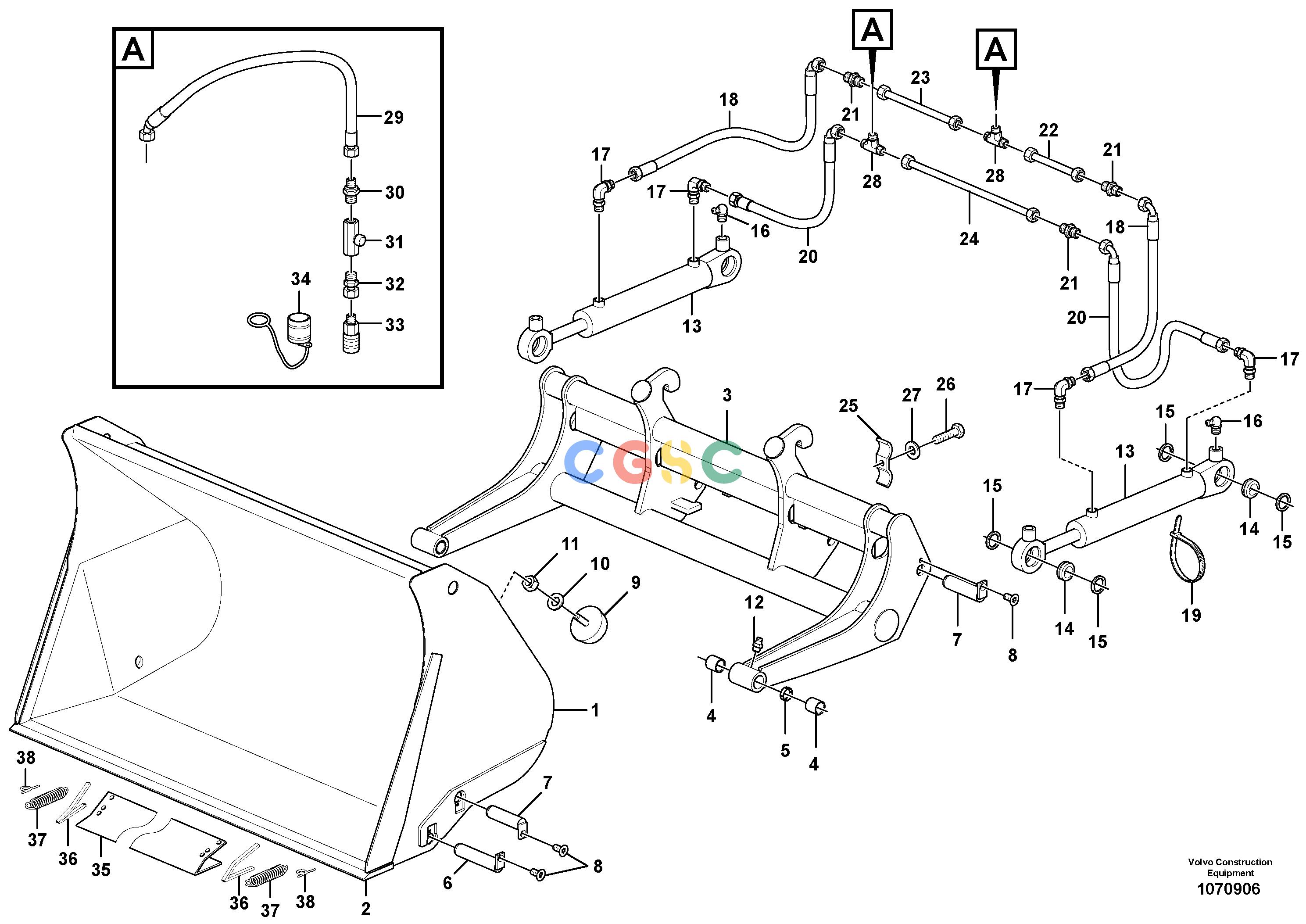

沃尔沃零件查询CWL ATTACHMENTS Tipping bucketATTACHMENTS, COMPACT WHEEL LOADERS, GEN. G,H NoneNoneL30G, L35G, 1,5 M3, 2000 MM, ZAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
ZM2878484
|
[1] |
High tipping bucket
|
|
| 1. |
ZM2815230
|
[1] |
Bucket
|
|
| 2. |
ZM2809792
|
[1] |
Cutting edge
|
2000 mm
|
| 3. |
VOE2815064
|
[1] |
Carrier
|
|
| 4. |
VOE11305362
|
[4] |
Bushing
|
|
| 5. |
ZM2806546
|
[2] |
Spacer washer
|
|
| 6. |
VOE2812595
|
[2] |
Bolt
|
|
| 7. |
VOE11305354
|
[4] |
Bolt
|
|
| 8. |
VOE948396
|
[6] |
Hex. socket screw
|
M12x25
|
| 9. |
VOE11305353
|
[2] |
Rubber stop
|
|
| 10. |
VOE60110353
|
[2] |
Washer
|
|
| 11. |
VOE971096
|
[2] |
Flange nut
|
M12
|
| 12. |
VOE983718
|
[2] |
Lubricating nipple
|
M8x1
|
| 13. |
ZM2814106
|
[2] |
Hydraulic cylinder
|
|
| 14. |
VOE6645259
|
[4] |
Link bearing
|
|
| 15. |
VOE11305258
|
[8] |
Retaining ring
|
|
| 16. |
VOE983719
|
[1] |
Lubricating nipple
|
AM8x1
|
| 17. |
VOE11305199
|
[4] |
Fitting
|
|
| 18. |
VOE11305752
|
[2] |
Hose assembly
|
|
| 19. |
VOE4881440
|
[2] |
Cable tie
|
|
| 20. |
ZM2807015
|
[2] |
Hose
|
|
| 21. |
VOE957057
|
[3] |
Nipple
|
L15
|
| 22. |
ZM2807456
|
[1] |
Pipe, cpl.
|
210 mm
|
| 23. |
ZM2815123
|
[1] |
Pipe
|
1410 mm
|
| 24. |
ZM2815122
|
[1] |
Pipe
|
1195 mm
|
| 25. |
VOE11305087
|
[3] |
Tube fitting
|
|
| 26. |
VOE13945444
|
[3] |
Screw
|
|
| 27. |
VOE13955894
|
[3] |
Washer
|
|
| 28. |
VOE957125
|
[2] |
T-nipple
|
L15
|
| 29. |
VOE11306395
|
[2] |
Hose assembly
|
|
| 30. |
VOE11306933
|
[2] |
Fitting
|
|
| 31. |
ZM2812923
|
[2] |
Valve
|
|
| 32. |
VOE11305198
|
[2] |
Fitting
|
|
| 33. |
ZM2800538
|
[2] |
Quick-coupling
|
|
| 34. |
VOE11305090
|
[2] |
Dust cover
|
|
| 35. |
ZM2815075
|
[1] |
Guard
|
|
| 36. |
VOE11305167
|
[2] |
Edge protection
|
|
| 37. |
VOE11315002
|
[2] |
Tension spring
|
|
| 38. |
ZM2801364
|
[2] |
Eye
|
|
