纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (12-012-00[01]) - VIBRATORY - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
303 次

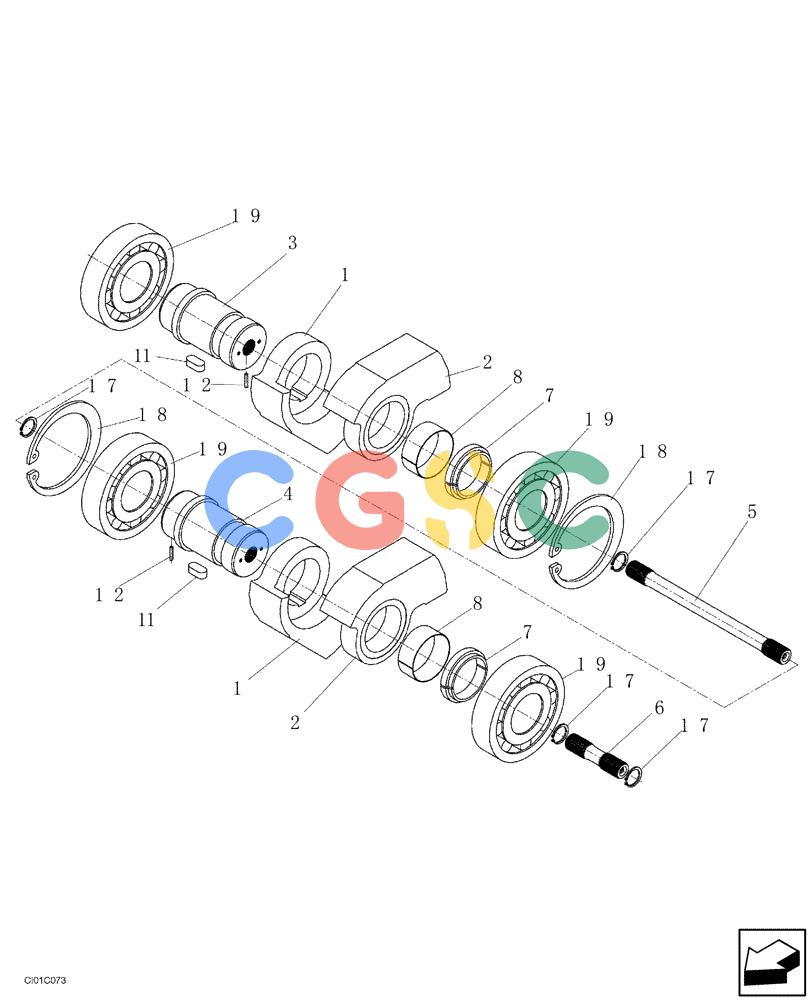

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND011944 | [2] | ECCENTRIC | STA |
| 2. | ND011946 | [2] | ECCENTRIC | STA |
| 3. | ND018216 | [1] | SHAFT | STA |
| 4. | ND018214 | [1] | SHAFT | STA |
| 5. | ND018218 | [1] | SHAFT | STA |
| 6. | ND030947 | [1] | SHAFT | STA |
| 7. | ND024475 | [2] | RING | STA |
| 8. | ND023115 | [2] | BUSHING | STA |
| 11. | ND033854 | [2] | KEY | STA |
| 12. | ND051104 | [2] | PIN | STA6 x 32 |
| 17. | ND069838 | [4] | SNAP RING | STA |
| 18. | ND069916 | [2] | SNAP RING | STA |
| 19. | ND068950 | [4] | ROLLER BEARING | STA Superseded by part number: 84410880 |
