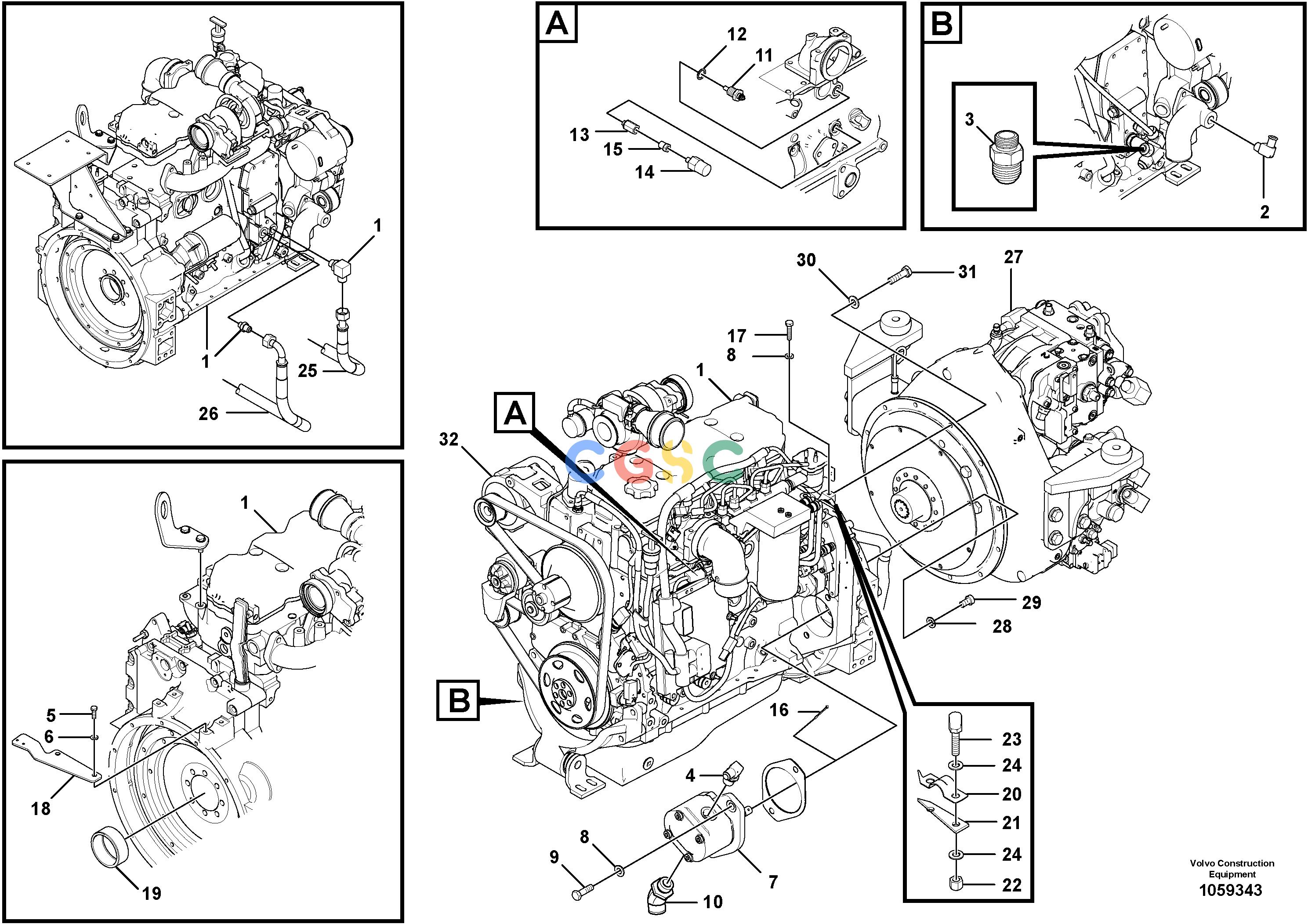

沃尔沃零件查询DD100 Engine AssemblyS/N 50001 -12777399-12766364VOE12777399NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
142 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE12761799
|
[1] |
Engine
|
|
| 1. |
VOE12781302
|
|
Engine
|
|
| 1. |
VOE12781297
|
|
Engine
|
|
| 1. |
VOE12781300
|
|
Engine
|
|
| 1. |
VOE12781305
|
|
Engine
|
|
| |
RM43919927
|
[1] |
Oil filter
|
|
| |
RM19295856
|
[1] |
Starter apparatus
|
|
| 2. |
RM13425582
|
[1] |
Adapter
|
|
| 3. |
RM95303392
|
[1] |
Adapter
|
|
| 4. |
RM95650339
|
[1] |
Adapter
|
|
| 5. |
RM96701917
|
[4] |
Hexagon screw
|
|
| 6. |
RM96741046
|
[4] |
Plain washer
|
|
| 7. |
RM43908524
|
[0000] |
Gear pump
|
|
| 7. |
RM43908524
|
[1] |
Gear pump
|
S/N - 50625
|
| 7. |
VOE12804899
|
[1] |
Hydraulic pump
|
S/N 50626 -
|
| 8. |
RM96738596
|
[4] |
Plain washer
|
|
| 9. |
RM96702444
|
[2] |
Hexagon screw
|
|
| 10. |
RM95003091
|
[1] |
Elbow nipple
|
|
| 11. |
RM58943796
|
[1] |
Oil temperature sensor
|
|
| 12. |
RM95097671
|
[1] |
O-ring
|
|
| 13. |
RM46647046
|
[1] |
Adapter
|
|
| 14. |
RM13407796
|
[1] |
Pressure switch
|
|
| 15. |
RM46647038
|
[1] |
Adapter
|
|
| 16. |
RM95997839
|
[1] |
Cotter Pin
|
|
| 17. |
RM96702311
|
[2] |
Hexagon screw
|
|
| 18. |
RM43890813
|
[1] |
Cable Mtg Brack
|
|
| 19. |
RM59532093
|
[1] |
Adapter
|
|
| 20. |
RM59580571
|
[1] |
Cable clamp
|
|
| 21. |
RM59617985
|
[1] |
Shim
|
|
| 22. |
RM96704580
|
[2] |
Jam nut
|
|
| 23. |
RM96705736
|
[2] |
Hexagon screw
|
|
| 24. |
RM96738554
|
[4] |
Plain washer
|
|
| 25. |
RM13204375
|
[1] |
Hose assembly
|
|
| 26. |
RM59685065
|
[1] |
Hose
|
|
| 27. |
|
[1] |
Pump installation
|
|
| 28. |
RM96704325
|
[8] |
Plain washer
|
|
| 29. |
RM95068110
|
[8] |
Hex. socket screw
|
|
| 30. |
RM96741046
|
[12] |
Plain washer
|
|
| 31. |
RM96701917
|
[12] |
Hexagon screw
|
|
| 32. |
RM13852256
|
[1] |
Alternator
|
|
