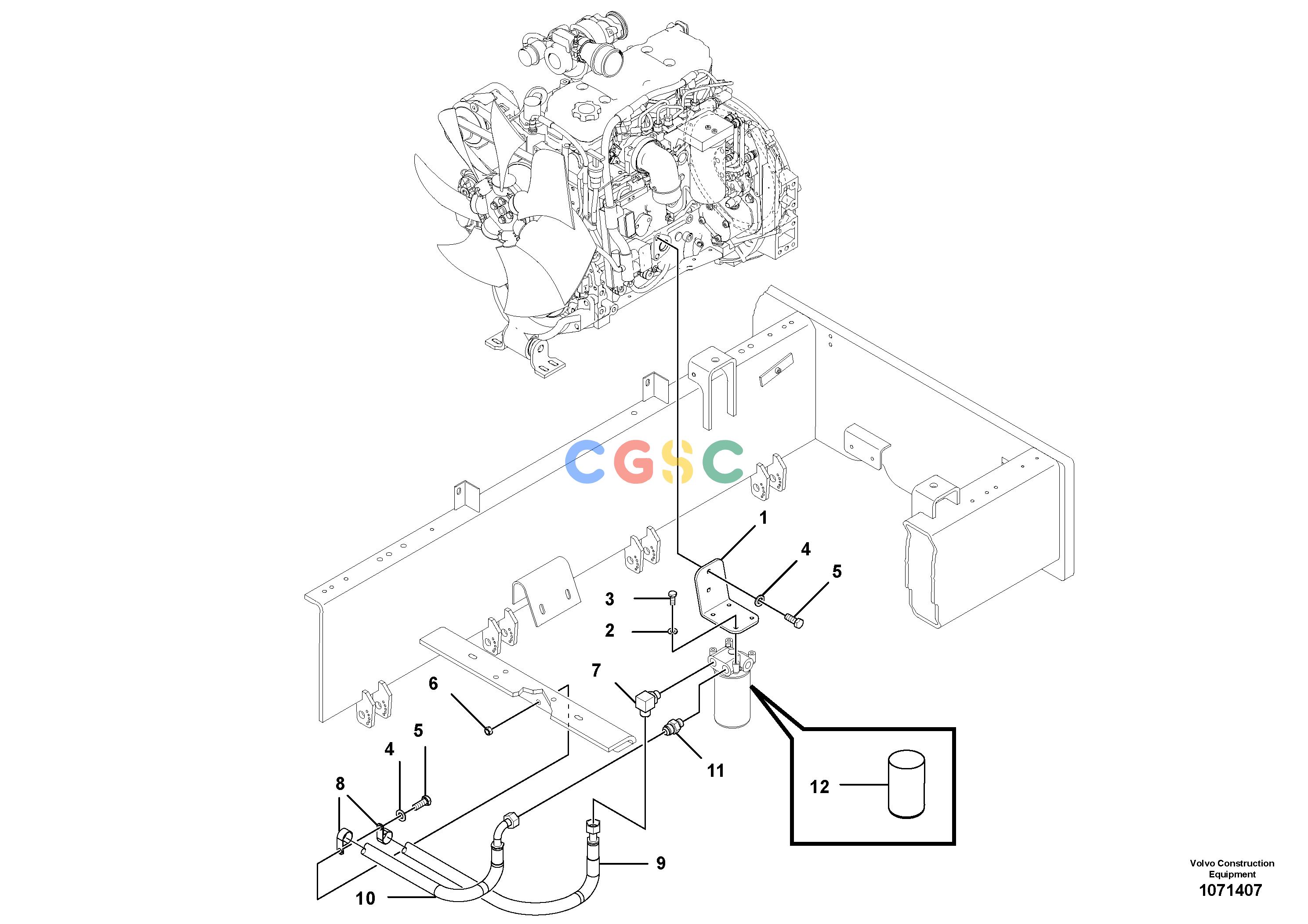

沃尔沃零件查询DD100 Oil filter with fitting partsS/N 50001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM43852805
|
[1] |
Lube Oil Bracke
|
|
| 2. |
VOE13955894
|
[8] |
Washer
|
|
| 3. |
RM96702824
|
[8] |
Hexagon screw
|
|
| 4. |
RM96738596
|
[5] |
Plain washer
|
S/N -50321
|
| 4. |
RM96738596
|
[4] |
Plain washer
|
S/N 50322-
|
| 5. |
RM96702311
|
[3] |
Hexagon screw
|
S/N -50321
|
| 5. |
RM96702311
|
[2] |
Hexagon screw
|
S/N 50322-
|
| 6. |
RM96719174
|
[1] |
Hexagon nut
|
S/N -50321
|
| 7. |
RM95376141
|
[1] |
Adapter
|
|
| 8. |
RM95457586
|
[2] |
Clamp
|
S/N -50321
|
| 9. |
RM13204375
|
[1] |
Hose assembly
|
|
| 10. |
RM59685065
|
[1] |
Hose
|
|
| 11. |
RM95303392
|
[1] |
Adapter
|
|
| 12. |
RM43919927
|
[1] |
Oil filter
|
|
