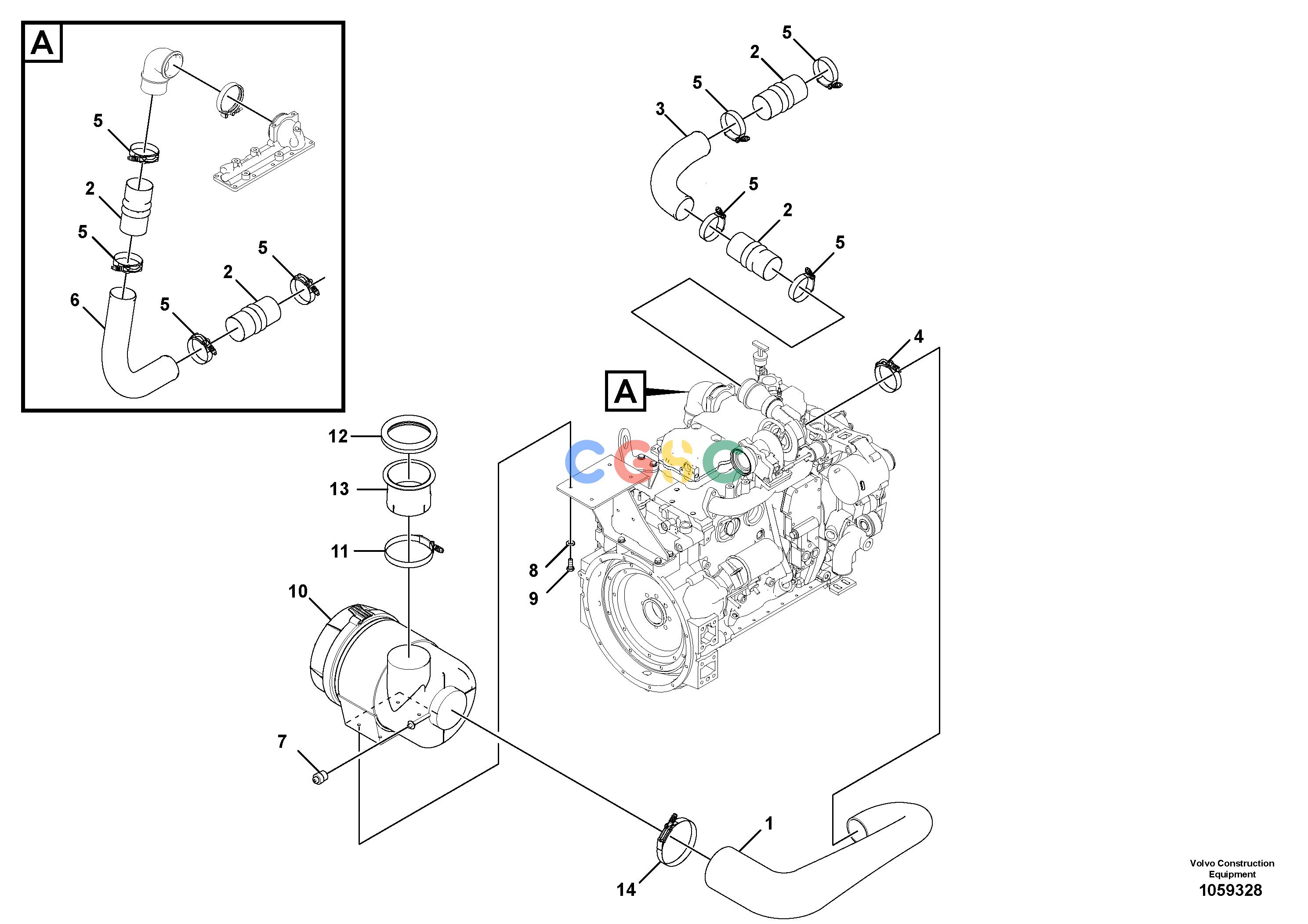

沃尔沃零件查询DD100 Air filter with fitting partsS/N 50001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM43851377
|
[1] |
Hose
|
|
| 2. |
RM13232202
|
[4] |
Connector
|
S/N - 50470
|
| 2. |
VOE12776936
|
[4] |
Connector
|
S/N 50471 -
|
| 3. |
RM43820695
|
[1] |
Pipe
|
S/N - 50470
|
| 3. |
VOE12792292
|
[1] |
Pipe
|
S/N 50471 -
|
| 4. |
RM54680095
|
[1] |
Clamp
|
|
| 5. |
RM54680079
|
[8] |
Clamp
|
|
| 6. |
RM43851526
|
[1] |
Cac Tube 3"od
|
S/N - 50470
|
| 6. |
VOE12792293
|
[1] |
Pipe
|
S/N 50471 -
|
| 7. |
RM50266907
|
[1] |
Indicator
|
|
| 8. |
VOE13955894
|
[8] |
Washer
|
|
| 9. |
RM96702824
|
[8] |
Hexagon screw
|
|
| 10. |
RM43902444
|
[1] |
Air cleaner
|
S/N -50321
|
| 10. |
VOE12769642
|
[1] |
Air cleaner
|
S/N 50322-
|
| |
RM43904168
|
[1] |
Air filter insert
|
S/N -50321
|
| |
VOE12769593
|
[1] |
Air filter insert
|
S/N 50322-
|
| |
RM43904176
|
[1] |
Safety filter
|
S/N -50321
|
| |
VOE12769591
|
[1] |
Air filter insert
|
S/N 50322-
|
| 11. |
RM13459359
|
[1] |
Spring clamp
|
|
| 12. |
RM59946863
|
[REQ] |
Trim moulding kit
|
L = 488 MM
|
| 13. |
RM43851922
|
[1] |
Tube
|
|
| |
RM43851906
|
[1] |
Extension Tube
|
|
| |
RM43851914
|
[1] |
Flange plate
|
|
| 14. |
RM19288604
|
[1] |
Clamp
|
|
