纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (12-020-01[01]) - CAB - VITRE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
849 次

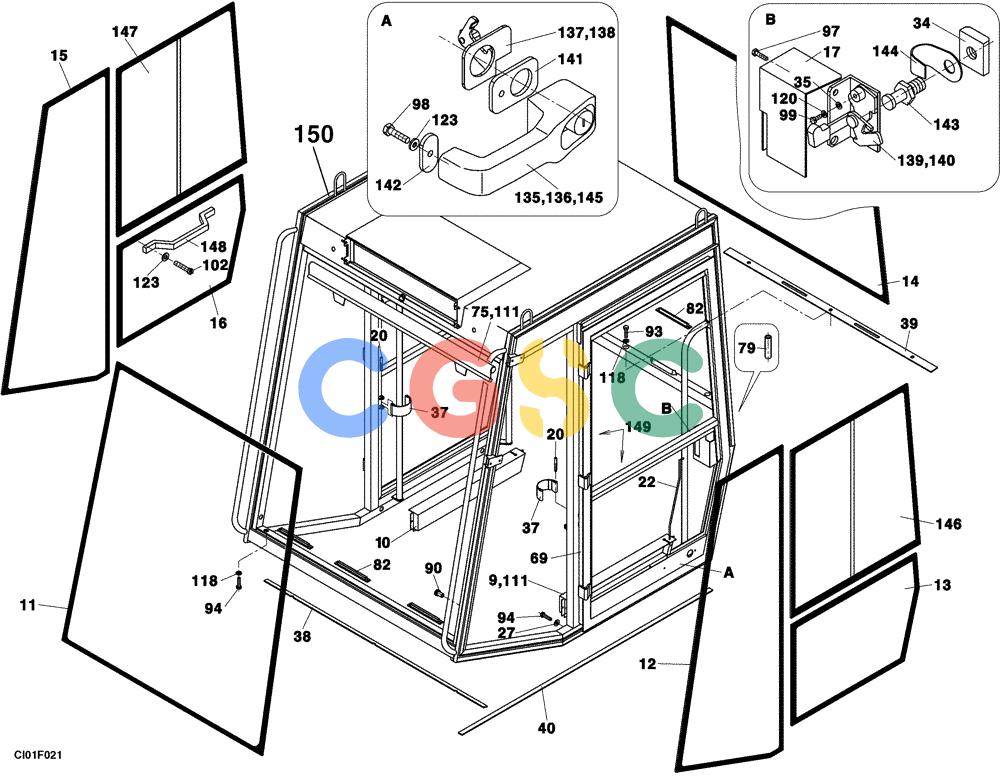

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 9. | ND103116 | [1] | COVER | STA |
| 10. | ND103117 | [1] | COVER | STA |
| 11. | ND082385 | [1] | GLASS | STA |
| 12. | ND082386 | [1] | GLASS | STA |
| 13. | ND100999 | [1] | CAB GLASS | STA |
| 14. | ND082390 | [1] | GLASS | STA |
| 15. | ND082388 | [1] | GLASS | STA |
| 16. | ND101000 | [1] | CAB GLASS | STA |
| 17. | ND103149 | [2] | COVER | STA |
| 20. | ND051029 | [4] | PIN | STA |
| 22. | ND103159 | [2] | TIE-ROD | STA |
| 27. | ND050532 | [7] | WASHER | STA |
| 34. | ND103185 | [2] | NUT | STA |
| 35. | ND103184 | [4] | WASHER | STA |
| 37. | ND117114 | [2] | BELT | STA |
| 38. | ND050486 | [1] | GASKET | STA |
| 39. | ND029690 | [1] | GASKET | STA |
| 40. | ND074328 | [2] | GASKET | STA |
| 45. | ND104369 | [2] | PLATE | STA |
| 69. | ND101589 | [1] | DOOR SEAL | STA8500 mm |
| 75. | ND063886 | [1] | SUNSHADE | STA |
| 79. | ND069511 | [2] | SWIVEL CONNECTION | STA |
| 82. | ND090000 | [5] | PLUG | STA |
| 90. | ND069933 | [4] | RIVET | STAM8 |
| 93. | ND021201 | [3] | BOLT | STAM10 x 65 |
| 94. | ND021301 | [7] | BOLT | STAM10 x 20 |
| 96. | ND021287 | [6] | BOLT | STAM6 x 12 |
| 97. | ND021285 | [4] | BOLT | STAM5 x 12 |
| 98. | ND021289 | [4] | BOLT | STAM6 x 20 |
| 102. | ND024134 | [4] | BOLT | STAM6 x 12 |
| 109. | ND025007 | [6] | SELF-TAP SCREW | STAM4 x 12 |
| 111. | ND024966 | [17] | SELF-TAP SCREW | STAM4 x 12 |
| 118. | ND029250 | [6] | WASHER | STAID 10,5 |
| 120. | ND029248 | [19] | WASHER | STAID 6,4 |
| 123. | ND029309 | [22] | SPRING WASHER | STAID 6,1 |
| 135. | ND101385 | [1] | HANDLE | STA |
| 136. | ND101386 | [1] | HANDLE | STA |
| 137. | ND101387 | [1] | LEVER | STA |
| 138. | ND101388 | [1] | LEVER | STA |
| 139. | ND101389 | [1] | LOCK | STA |
| 140. | ND101390 | [1] | LOCK | STA |
| 141. | ND101391 | [2] | WASHER | STA |
| 142. | ND101392 | [2] | WASHER | STA |
| 143. | ND101393 | [2] | PIN | STA |
| 144. | ND101394 | [2] | COVER | STA |
| 145. | ND101395 | [2] | KEY | STAKEY, LOCK |
| 146. | ND101384 | [1] | SEAT/SLOT | STA |
| 147. | ND101383 | [1] | SEAT/SLOT | STA |
| 148. | ND078409 | [2] | HANDLE | STA250 mm |
| 149. | ND103219 | [1] | SEALING STRIP | STA6000 mm |
| 150. | ND001404 | [1] | CAB FRAME | STA |
