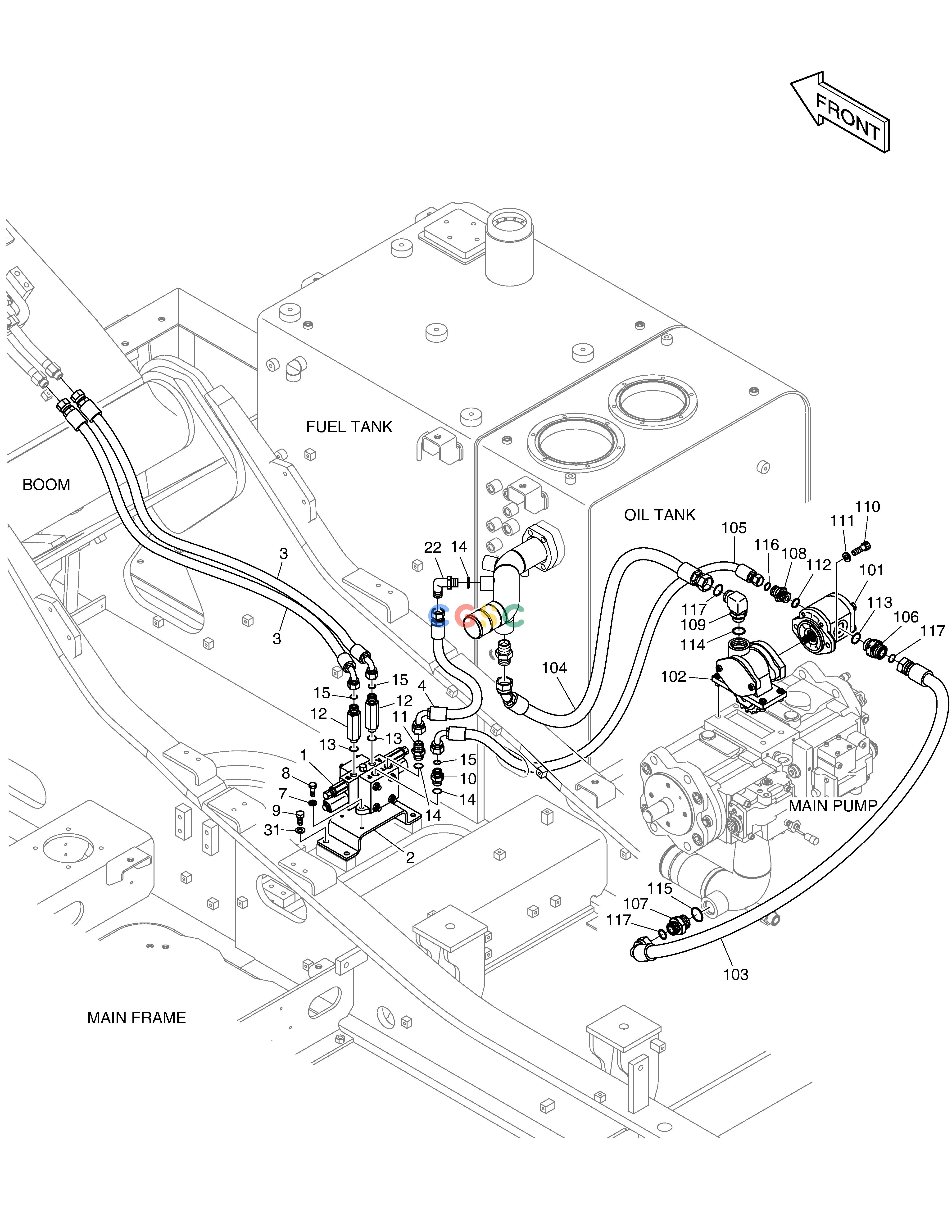

斗山零件查询MAIN PIPING-ROTATION DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
861 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13882
|
[-] |
|
|
| 1. |
426-00284B
|
[1] |
VALVE;ONE SPOOL
|
|
| 10. |
DS2232012
|
[1] |
ADAPTER
|
|
| 101. |
K1000410
|
[1] |
PUMP;GEAR
|
|
| 102. |
K1006551
|
[1] |
PTO ASS'Y
|
|
| 102. |
K1001252B
|
[1] |
PTO ASS'Y
|
K1006551
|
| 103. |
2184-1197D31
|
[1] |
HOSE
|
|
| 104. |
DS2012392
|
[1] |
HOSE
|
|
| 105. |
DS20132451
|
[1] |
|
|
| 106. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 107. |
DS2232003
|
[1] |
ADAPTER
|
|
| 108. |
DS2338004
|
[1] |
|
|
| 109. |
2181-2294D2
|
[1] |
ELBOW
|
|
| 11. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 110. |
S2212266
|
[2] |
BOLT
|
|
| 111. |
S5102603
|
[2] |
. WASHER
|
|
| 112. |
S8000181
|
[1] |
O-RING
|
|
| 113. |
S8000231
|
[1] |
O-RING
|
|
| 114. |
S8000241
|
[1] |
O-RING
|
|
| 115. |
S8000291
|
[1] |
O-RING
|
|
| 116. |
S8030081
|
[1] |
O-RING
|
|
| 117. |
S8030121
|
[3] |
O-RING
|
|
| 12. |
DS2232108
|
[2] |
ADAPTER
|
|
| 13. |
S8000141
|
[2] |
O-RING
|
|
| 14. |
S8000181
|
[3] |
O-RING
|
|
| 15. |
S8030081
|
[3] |
O-RING
|
|
| 2. |
K1000352A
|
[1] |
BRACKET
|
|
| 22. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 3. |
DS2013672
|
[2] |
HOSE
|
|
| 31. |
120804-00076
|
[4] |
WASHER
|
|
| 4. |
DS2054472
|
[1] |
|
|
| 7. |
S5110503
|
[3] |
WASHER
|
|
| 8. |
S2209066
|
[3] |
BOLT
|
|
| 9. |
S0512066
|
[4] |
. BOLT
|
|
