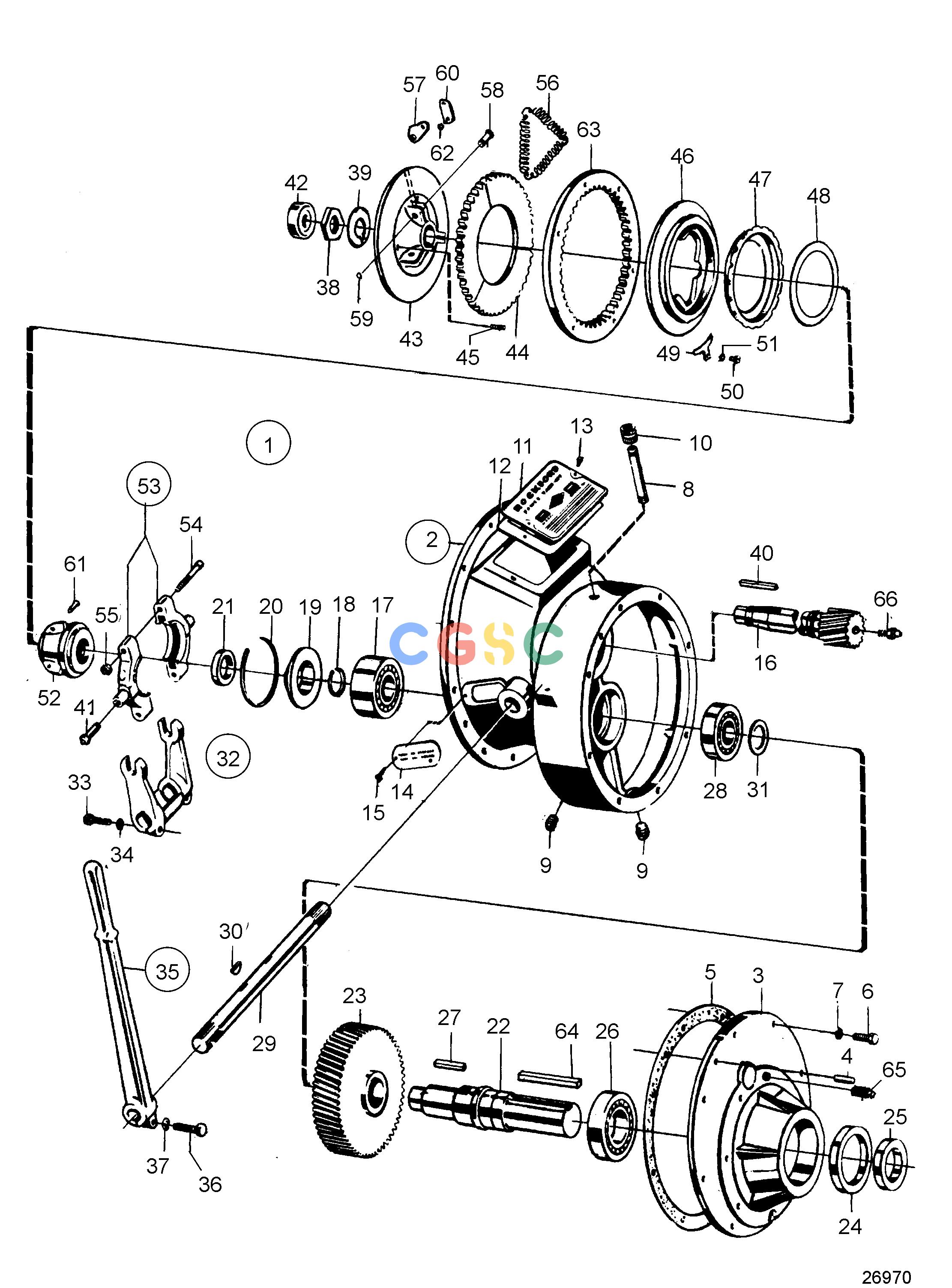

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EClutch, Elastic CouplingClutch Rockford Borg Warner 8'' Utv 2, 8:1, 10'' Utv 2, 8:1: 820803EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
820803
|
[1] |
Friction clutch
|
Rockford BW 10''
|
| 2. |
828083
|
[1] |
Housing
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
819964
|
[1] |
Gasket
|
|
| 6. |
940115
|
[8] |
Hexagon screw
|
|
| 7. |
942336
|
[8] |
Spring washer
|
|
| 8. |
|
|
|
|
| 9. |
952357
|
[2] |
Plug
|
|
| 11. |
815347
|
[1] |
Instruction
|
|
| 12. |
815334
|
[1] |
Gasket
|
|
| 13. |
950044
|
[2] |
Cross recessed screw
|
|
| 14. |
|
|
|
|
| 15. |
950027
|
[1] |
Cross recessed screw
|
|
| 16. |
827512
|
[1] |
Axle shaft
|
|
| 17. |
181653
|
[1] |
Bearing
|
|
| 18. |
827513
|
[1] |
Lock ring
|
|
| 19. |
827514
|
[1] |
Retainer
|
|
| 20. |
827515
|
[1] |
Lock ring
|
|
| 21. |
827516
|
[1] |
Sealing ring
|
|
| 22. |
819976
|
[1] |
Shaft
|
|
| 23. |
819975
|
[1] |
Gear
|
|
| 24. |
819962
|
[1] |
Retainer
|
|
| 25. |
819967
|
[1] |
Oil
|
|
| 26. |
181654
|
[1] |
Ball bearing
|
|
| 27. |
819963
|
[1] |
Key
|
|
| 28. |
181651
|
[1] |
Bearing
|
|
| 29. |
815319
|
[1] |
Shaft
|
|
| 30. |
815320
|
[2] |
Woodruff key
|
|
| 31. |
819978
|
[1] |
Washer
|
|
| 32. |
815337
|
[1] |
Release fork
|
|
| 33. |
955535
|
[2] |
Hexagon screw
|
|
| 34. |
942336
|
[2] |
Spring washer
|
|
| 35. |
815318
|
[1] |
Control arm
|
|
| 36. |
940162
|
[1] |
Hexagon screw
|
|
| 37. |
942336
|
[1] |
Spring washer
|
|
| 38. |
815327
|
[1] |
Nut
|
|
| 39. |
827517
|
[1] |
Lock washer
|
|
| 40. |
827518
|
[1] |
Key
|
|
| 41. |
815387
|
[1] |
Fitting
|
|
| 42. |
183456
|
[1] |
Bearing
|
|
| 43. |
827519
|
[1] |
Plate
|
|
| 44. |
815354
|
[1] |
Disc
|
|
| 45. |
815369
|
[3] |
Spring
|
|
| 46. |
815385
|
[1] |
Plate
|
|
| 47. |
825593
|
[1] |
Nut
|
|
| 48. |
825594
|
[1] |
Washer
|
|
| 49. |
815378
|
[1] |
Lock
|
|
| 50. |
827520
|
[1] |
Screw
|
|
| 51. |
940155
|
[1] |
Toothed washer
|
|
| 52. |
827521
|
[1] |
Engaging sleeve
|
|
| 53. |
815360
|
[1] |
Release bearing
|
|
| 54. |
955661
|
[2] |
Hexagon screw
|
|
| 55. |
950373
|
[2] |
Lock nut
|
|
| 56. |
815382
|
[1] |
Spring
|
|
| 57. |
815370
|
[3] |
Intermediate lever
|
|
| 58. |
815362
|
[3] |
Pin
|
|
| 59. |
815358
|
[3] |
Lock ring
|
|
| 60. |
815371
|
[6] |
Link
|
|
| 61. |
815361
|
[6] |
Pin
|
|
| 62. |
815359
|
[6] |
Lock ring
|
|
| 63. |
815353
|
[1] |
Gear ring
|
|
| 64. |
815909
|
[1] |
Key
|
|
| 65. |
952358
|
[1] |
Plug
|
|
| 66. |
827632
|
[1] |
Lubricator
|
|
