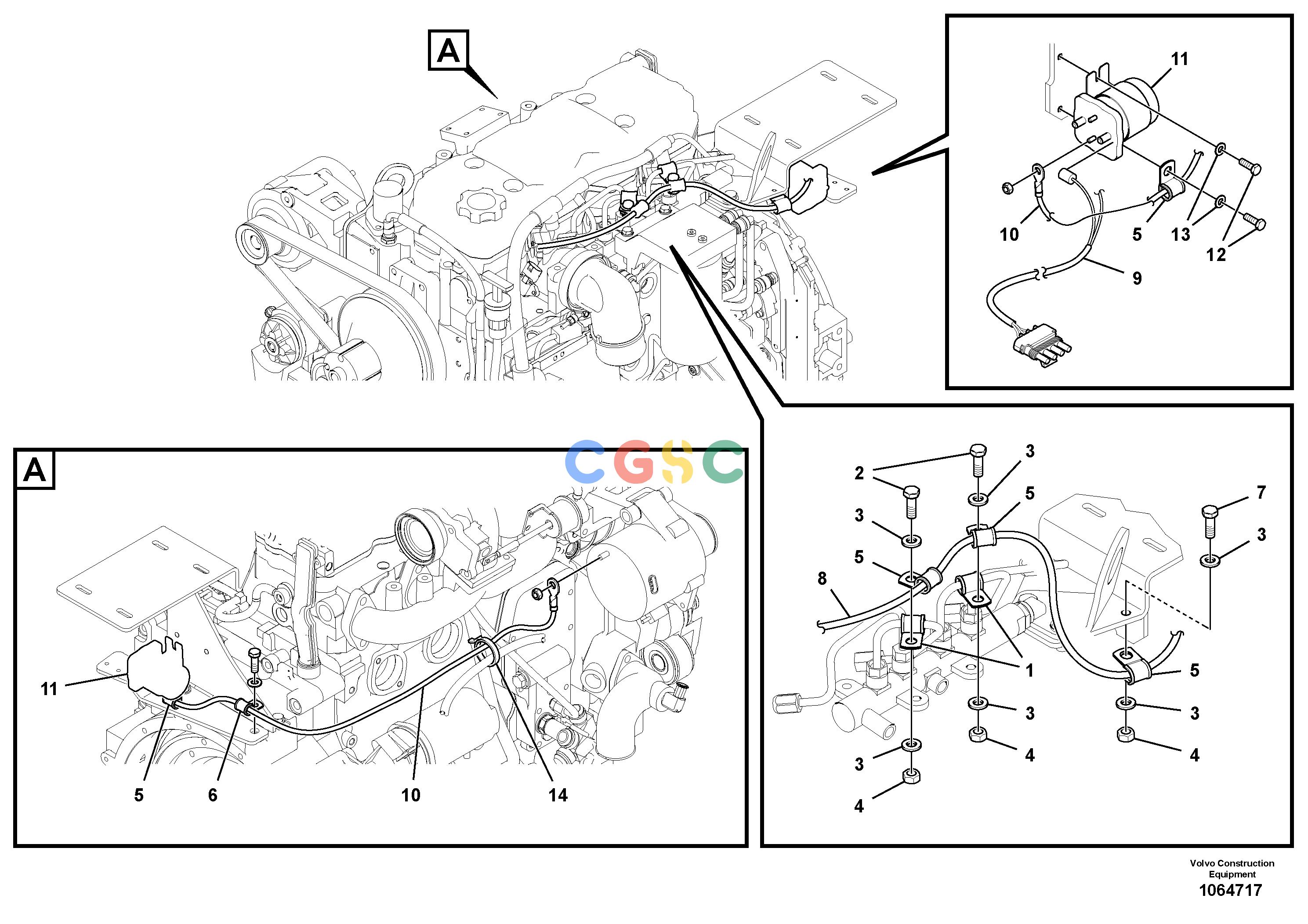

沃尔沃零件查询DD100 Grid Heater InstallationS/N 50001 - NoneNone46641593, 12790738Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
599 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM59371922
|
[2] |
Clamp
|
|
| 2. |
RM96701958
|
[2] |
Hexagon screw
|
|
| 3. |
VOE955892
|
[4] |
Plain washer
|
|
| 4. |
RM96702873
|
[2] |
Jam nut
|
|
| 5. |
RM59374405
|
[5] |
Clamp
|
|
| 6. |
RM59661413
|
[1] |
Clamp
|
|
| 7. |
RM96704564
|
[1] |
Hexagon screw
|
|
| 8. |
RM46641643
|
[1] |
Cable
|
|
| 9. |
RM12796751
|
[1] |
Cable harness
|
|
| 10. |
RM43809318
|
[1] |
Electronic unit
|
|
| 11. |
RM13887732
|
[1] |
Relay
|
|
| 12. |
RM96714225
|
[2] |
Hexagon screw
|
|
| 13. |
RM96704663
|
[2] |
Plain washer
|
|
| 14. |
RM95373973
|
[2] |
Locking wire
|
|
