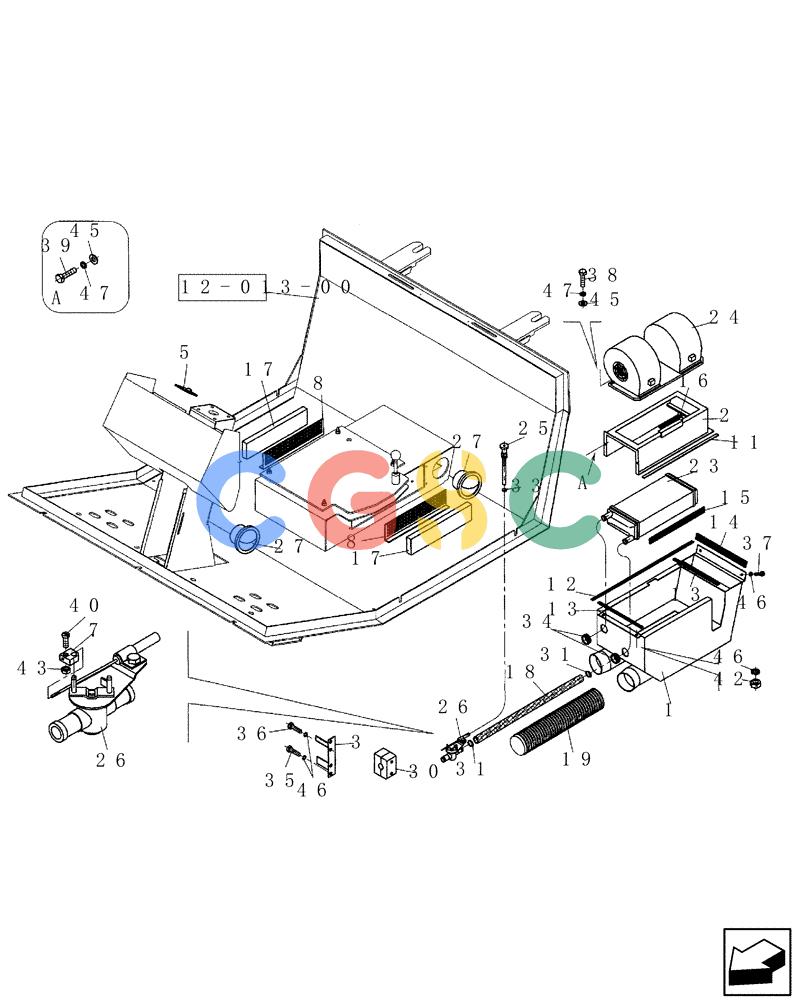

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (12-022-03[01]) - HEATING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND018516 | [1] | BOX | STA |
| 2. | ND031959 | [1] | SUPPORT | STA |
| 3. | ND054228 | [1] | SUPPORT | STA |
| 5. | ND053444 | [1] | SWITCH | STA |
| 7. | ND053448 | [1] | CLAMP | STA |
| 8. | ND031723 | [2] | GRILLE | STA |
| 11. | ND076327 | [1] | SEAL | STA2 x 10 - 1450 mm |
| 12. | ND076156 | [2] | FOAM | STA2 x 10 - 475 mm |
| 13. | ND076158 | [3] | FOAM | STA2 x 10 - 206 mm |
| 14. | ND076160 | [1] | FOAM | STA4 x 20 - 230 mm |
| 15. | ND076162 | [1] | FOAM | STA4 x 10 - 254 mm |
| 16. | ND076164 | [1] | FOAM | STA2 x 10 - 100 mm |
| 17. | ND076166 | [2] | AIR FILTER | STA20 x 63 x 285 |
| 18. | ND076168 | [1] | HOSE | STA500 mm |
| 19. | ND075848 | [2] | HOSE | STA550 mm |
| 23. | ND064882 | [1] | HEAT EXCHANGER | STA Superseded by part number: ND108146 |
| 24. | ND064881 | [1] | BLOWER | STA24V |
| 25. | ND090785 | [1] | FLEXIBLE CONTROL | STA |
| 26. | ND090033 | [1] | DRAINCOCK/TAP SUPPLY | STA |
| 27. | ND089999 | [4] | RING | STA |
| 28. | ND064524 | [2] | GRILLE | STA |
| 30. | ND064809 | [1] | CLAMP | STA |
| 31. | ND069479 | [4] | CLAMP | STA16-25 |
| 32. | ND078445 | [1] | SECURING STRAP | STA200 mm |
| 33. | ND079515 | [1] | GROMMET | STA11 x 4 |
| 34. | ND079513 | [2] | GROMMET | STA15 x 2 |
| 35. | ND024234 | [2] | BOLT | STAM6 x 30 |
| 36. | ND021287 | [2] | BOLT | STAM6 x 12 |
| 37. | ND023801 | [2] | SCREW | STAM6 x 16 Superseded by part number: ND021289 |
| 38. | ND110227 | [2] | BOLT | STAM5 x 20 |
| 39. | ND021285 | [4] | BOLT | STAM5 x 12 |
| 40. | ND024109 | [9] | BOLT | STAM4 x 10 |
| 42. | ND021847 | [2] | NUT | STAM6 |
| 43. | ND026413 | [1] | NUT | STAM4 |
| 45. | ND029289 | [6] | WASHER | STAID 5,5 |
| 46. | ND029309 | [8] | SPRING WASHER | STAID 6,1 |
| 47. | ND029308 | [6] | WASHER | STAID 5,1 |
