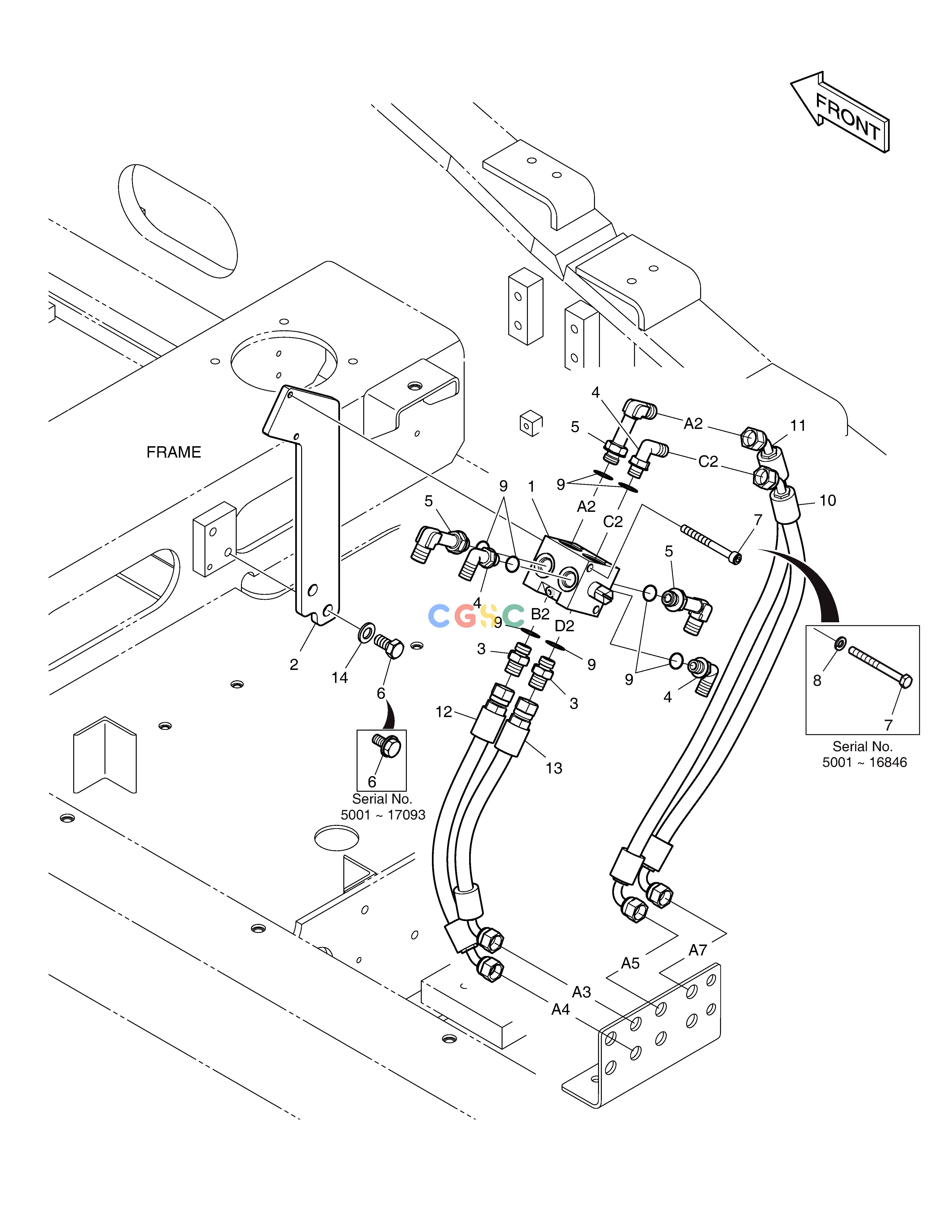

斗山零件查询PATTERN CHANGE PIPING(1) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
614 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07077
|
[-] |
|
|
| 1. |
K1014874
|
[1] |
VALVE;SELECTOR
|
|
| 10. |
DS2090019
|
[1] |
HOSE
|
|
| 11. |
DS2090022
|
[1] |
HOSE
|
|
| 12. |
DS2092080
|
[1] |
HOSE
|
|
| 13. |
DS2095031
|
[1] |
HOSE
|
|
| 14. |
120804-00077
|
[2] |
WASHER
|
|
| 2. |
K1015780
|
[1] |
BRACKET
|
|
| 3. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 4. |
2181-1702D5
|
[3] |
ELBOW
|
|
| 5. |
2181-1702D51
|
[3] |
ELBOW
|
|
| 6. |
DS0025018
|
[2] |
BOLT
|
|
| 6. |
S0515066
|
[2] |
BOLT
|
|
| 7. |
S0557066
|
[2] |
BOLT
|
|
| 7. |
S2210266
|
[2] |
|
|
| 8. |
S5102503
|
[2] |
. WASHER
|
|
| 9. |
S8000141
|
[8] |
O-RING
|
|
