神钢零件查询(6D16-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-006) - FLYWHEEL HOUSING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
819 次

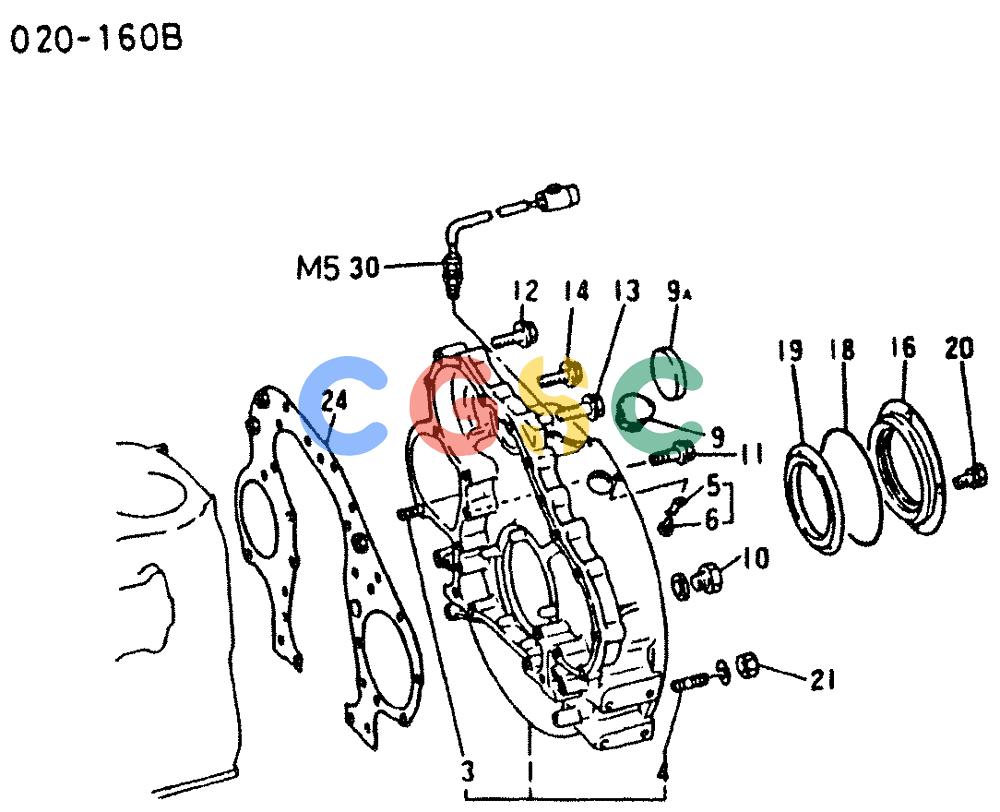

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME070945 | [1] | FLYWHEEL HOUSING ASSY M10X1.5,FOR M0 ONLY | |
| . . | VAME070948 | [1] | HOUSING, FLYWHEEL M10X1.5 | HOUSING, FLYWHEEL M10X1.5 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING,FLYWHEEL |
| 3. | VAMF404578 | [1] | STUD | KOBSTUD,FOR STARTER 12X45 |
| 4. | VAMF404548 | [12] | STUD | KOBSTUP 10X30 |
| 5. | VAME031062 | [1] | POINTER | KOBPOINTER |
| 6. | VAME350047 | [1] | SCREW,W/WSR 5X10 | |
| 9. | VAME020359 | [1] | PLUG | KOBPLUG,DUST Superseded by part number: VAME609555 |
| 9A. | VAME030870 | [1] | CAP | KOBCAP,SEALING |
| 10. | VAMF665007 | [1] | SCREW | KOBPLUG 20 |
| . . | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 11. | VAMH000723 | [1] | BOLT | KOBBOLT,FLANGE 10X70 |
| 12. | VAMH000716 | [5] | BOLT | KOBBOLT,FLANGE 10X55 |
| 13. | VAMH000712 | [1] | SCREW | KOBBOLT,FLANGE 10X65 |
| 14. | VAMH000709 | [1] | BOLT | KOBBOLT,FLANGE 10X50 |
| 15. | VAME034976 | [1] | OIL SEAL | KOBOILSEAL,RE |
| 16. | VA3110702401 | [1] | O-RING | KOBPACKING,RUBBER Superseded by part number: 3110702401 |
| 19. | VAME030857 | [1] | SEAL | KOBSLINGER,OILSEAL RE |
| 20. | VAMF241251 | [5] | SCREW | KOBBOLT,W/WSR 8X16 |
| 21. | VAMF430006 | [12] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [12] | WASHER | KOBWASHER,SPG 10 |
| 24. | VAME071093 | [1] | PLATE, GEAR PLATE,RE D=136.5 | PLATE, GEAR PLATE,RE D=136.5 |
| 30. | VAMC845235 | [1] | SENDER UNIT | KOBSPEED Superseded by part number: 240067A1 |
