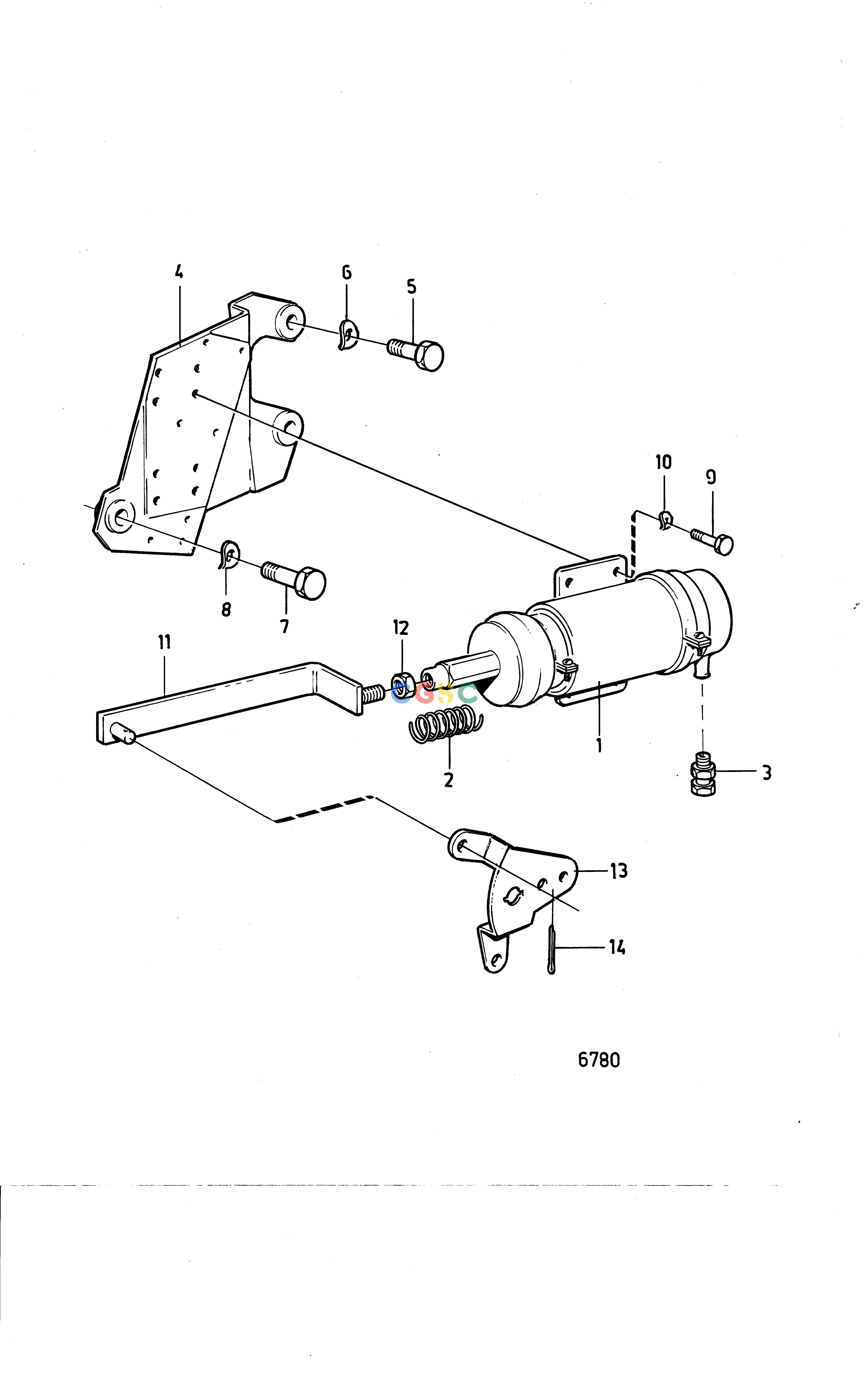

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EControlsStop Solenoid and Installation Components: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
464 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
881531
|
[1] |
Stop solenoid
|
12V
|
| 1. |
881532
|
[1] |
Magnet
|
24V
|
| 2. |
843401
|
[1] |
Return spring
|
|
| 3. |
881191
|
[1] |
Grommet
|
Early type
|
| 4. |
846171
|
[1] |
Bracket
|
|
| 5. |
955561
|
[2] |
Hexagon screw
|
|
| 6. |
940280
|
[2] |
Spring washer
|
|
| 7. |
955536
|
[1] |
Hexagon screw
|
|
| 8. |
942336
|
[1] |
Spring washer
|
|
| 9. |
955512
|
[4] |
Hexagon screw
|
|
| 10. |
941906
|
[4] |
Spring washer
|
|
| 11. |
821121
|
[1] |
Pull link
|
|
| 12. |
955857
|
[1] |
Hexagon nut
|
|
| 13. |
848677
|
[1] |
Intermediate lever
|
|
| 14. |
907824
|
[1] |
Split pin
|
|
