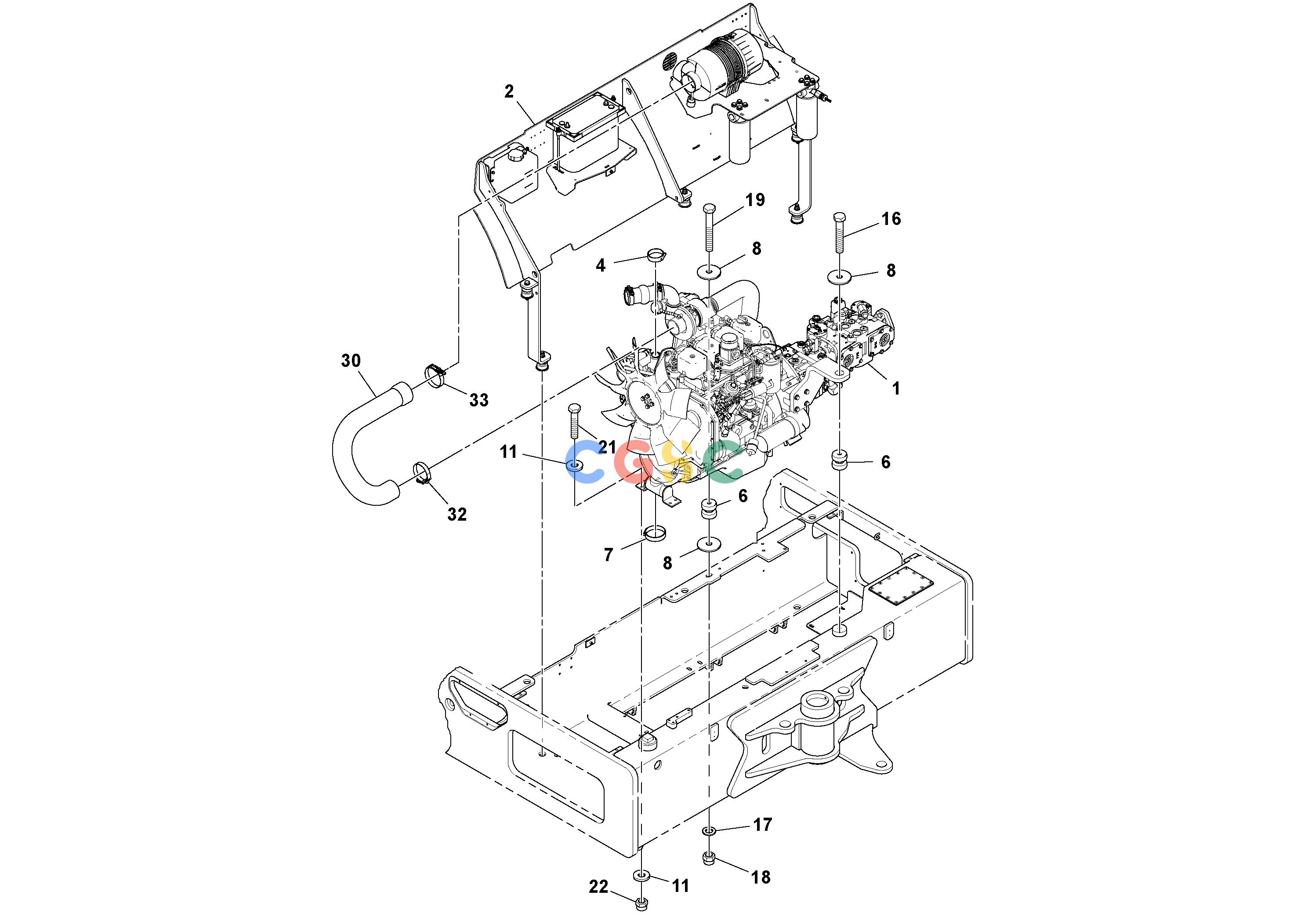

沃尔沃零件查询DD112/DD118/DD120 Engine InstallationS/N 197518 -13275573_0401-NoneNoneNoneS/N -194585, 13276670Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
571 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Engine
|
|
| 2. |
|
[1] |
Drum Skirt
|
& VALVE INSTALLATION
|
| 4. |
RM95220893
|
[1] |
Hose clamp
|
|
| 6. |
RM58879784
|
[2] |
Rubber damper
|
|
| 7. |
RM95286266
|
[1] |
Hose clamp
|
|
| 8. |
RM58879768
|
[3] |
Washer
|
|
| 11. |
RM96712849
|
[26] |
Plain washer
|
|
| 16. |
RM96704937
|
[1] |
Hexagon screw
|
|
| 17. |
RM96738612
|
[1] |
Plain washer
|
|
| 18. |
RM96704630
|
[1] |
Jam nut
|
|
| 19. |
RM96705504
|
[1] |
Hexagon screw
|
|
| 21. |
RM96719265
|
[4] |
Hexagon screw
|
|
| 22. |
RM96704614
|
[8] |
Jam nut
|
|
| 30. |
RM13230990
|
[1] |
Air hose
|
|
| 32. |
RM54680087
|
[3] |
Clamp
|
|
| 33. |
RM54680103
|
[1] |
Clamp
|
|
