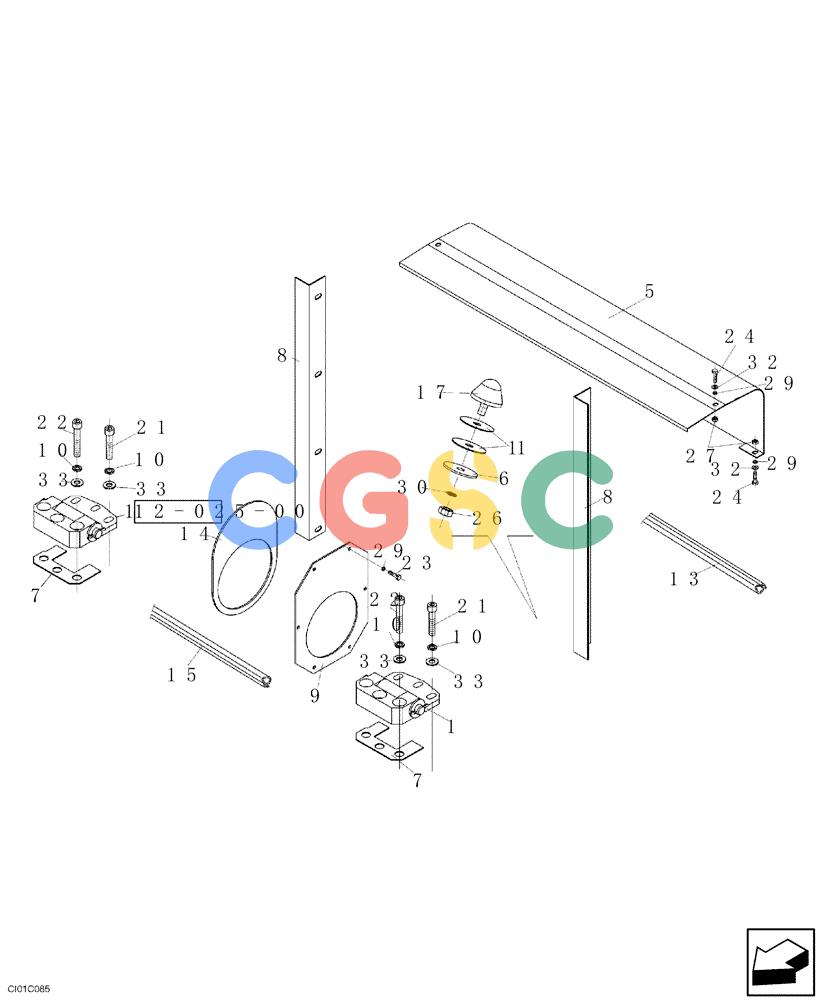

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (12-024-00[01]) - ENGINE COVER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
955 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND052496 | [2] | HINGE | STA |
| 5. | ND104560 | [1] | COVER | STA |
| 6. | ND103516 | [2] | WASHER | STA |
| 7. | ND052341 | [2] | WASHER | STA |
| 8. | ND031754 | [2] | ANGLE | STA |
| 9. | ND052382 | [1] | PLATE | STA |
| 10. | ND042815 | [12] | WASHER | STAID 12 Superseded by part number: ND029267 |
| 11. | ND104572 | [4] | WASHER | STA |
| 13. | ND075753 | [1] | SEAL | STA1610mm |
| 14. | ND075755 | [1] | GASKET | STA455mm |
| 15. | ND076144 | [1] | SEAL | STA1160mm |
| 17. | ND079088 | [2] | BUMPER | STA |
| 21. | ND024272 | [6] | BOLT | STAM12 x 35 |
| 22. | ND024274 | [6] | BOLT | STAM12 x 45 |
| 23. | ND021287 | [6] | BOLT | STAM6 x 12 |
| 24. | ND023801 | [6] | SCREW | STAM6 x 16 Superseded by part number: ND021289 |
| 26. | ND026416 | [2] | NUT | STAM8 Superseded by part number: ND034087 |
| 27. | ND026415 | [12] | NUT | STAM6 Superseded by part number: ND027300 |
| 29. | ND029309 | [18] | SPRING WASHER | STAID 6,1 |
| 30. | ND029310 | [2] | WASHER | STAID 8,2 |
| 32. | ND029248 | [18] | WASHER | STAID 6,4 |
| 33. | ND035942 | [12] | WASHER | STAID 12 |
