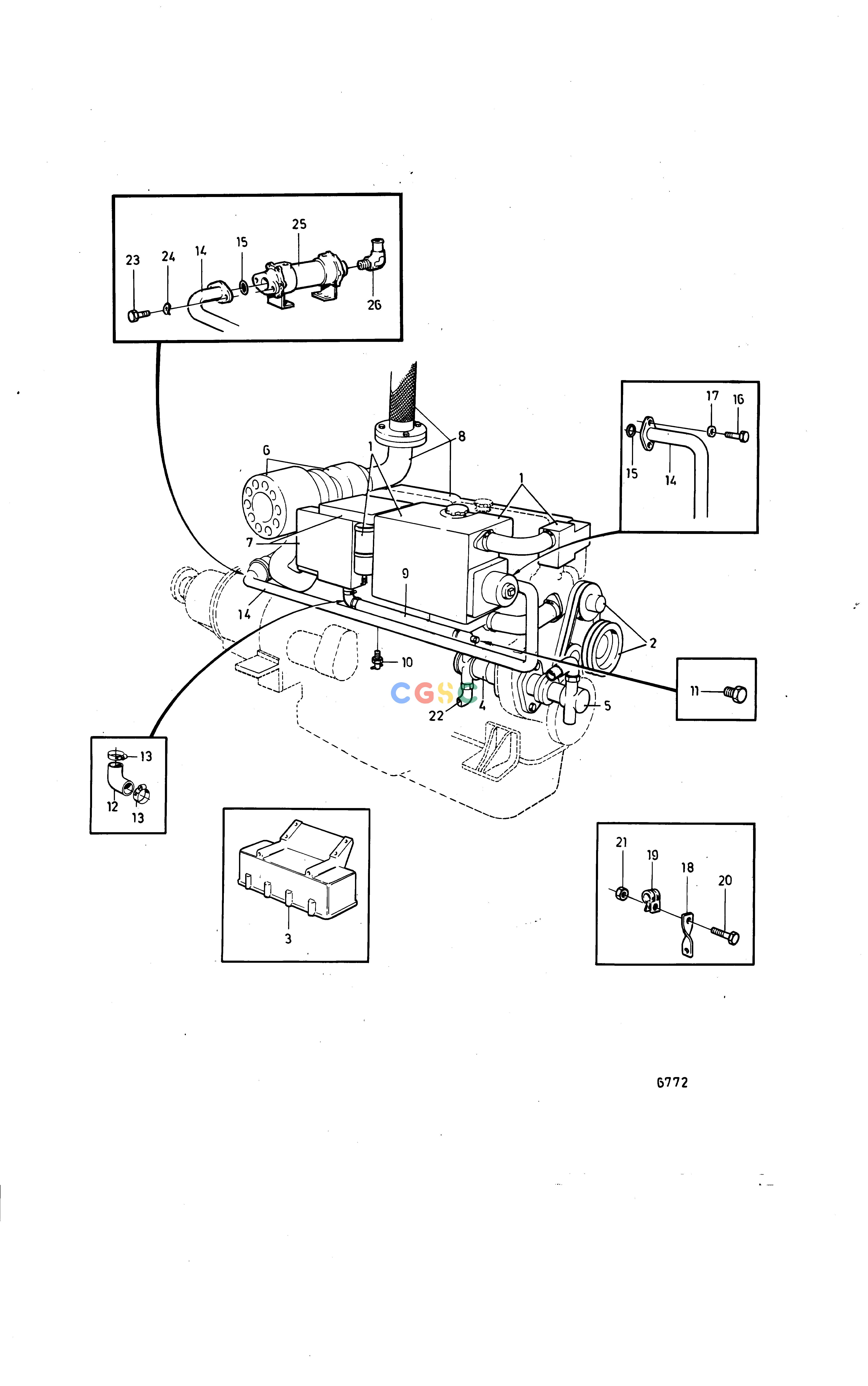

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ECooling SystemCooling System with Plate Heat Exch., Induction and Exh. Manifold.EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
275 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7743260_033
|
|
heat exchanger and thermostat with installation comps
|
|
| 1. |
|
|
|
|
| 2. |
7743260_041
|
|
circulation pump and drive device with installation comps
|
|
| 2. |
|
|
|
|
| 3. |
7743260_036
|
|
oil cooler and installation comps
|
|
| 3. |
|
|
|
|
| 4. |
7743260_038
|
|
sea water pump and installation comps
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
7743260_043
|
|
turbo and air filter with installation comps
|
|
| 6. |
|
|
|
|
| 7. |
7743260_047
|
|
induction manifold and aftercooler with installation comps
|
|
| 7. |
|
|
|
|
| 8. |
7743260_049
|
|
exhaust manifold with installation comps
|
|
| 8. |
|
|
|
|
| 9. |
843881
|
[1] |
Tube
|
|
| 10. |
82745
|
[1] |
Shut-off cock
|
|
| 11. |
192134
|
[1] |
Plug
|
|
| 12. |
837670
|
[1] |
Hose bend
|
|
| 13. |
994561
|
[2] |
Hose clamp
|
|
| 14. |
847099
|
[1] |
Coolant pipe
|
|
| 15. |
836778
|
[2] |
Gasket
|
|
| 16. |
940135
|
[2] |
Hexagon screw
|
|
| 17. |
941907
|
[2] |
Spring washer
|
|
| 18. |
965553
|
[1] |
Bracket
|
|
| 19. |
943717
|
[2] |
Clamp
|
|
| 20. |
950046
|
[1] |
Cross recessed screw
|
|
| 21. |
950352
|
[1] |
Lock nut
|
|
| 22. |
837276
|
[1] |
Anchorage
|
|
| 23. |
940135
|
[2] |
Hexagon screw
|
|
| 24. |
941907
|
[2] |
Spring washer
|
|
| 25. |
844114
|
[1] |
Oil cooler
|
See group 4A
|
| 26. |
836759
|
[1] |
Hose attachment
|
|
