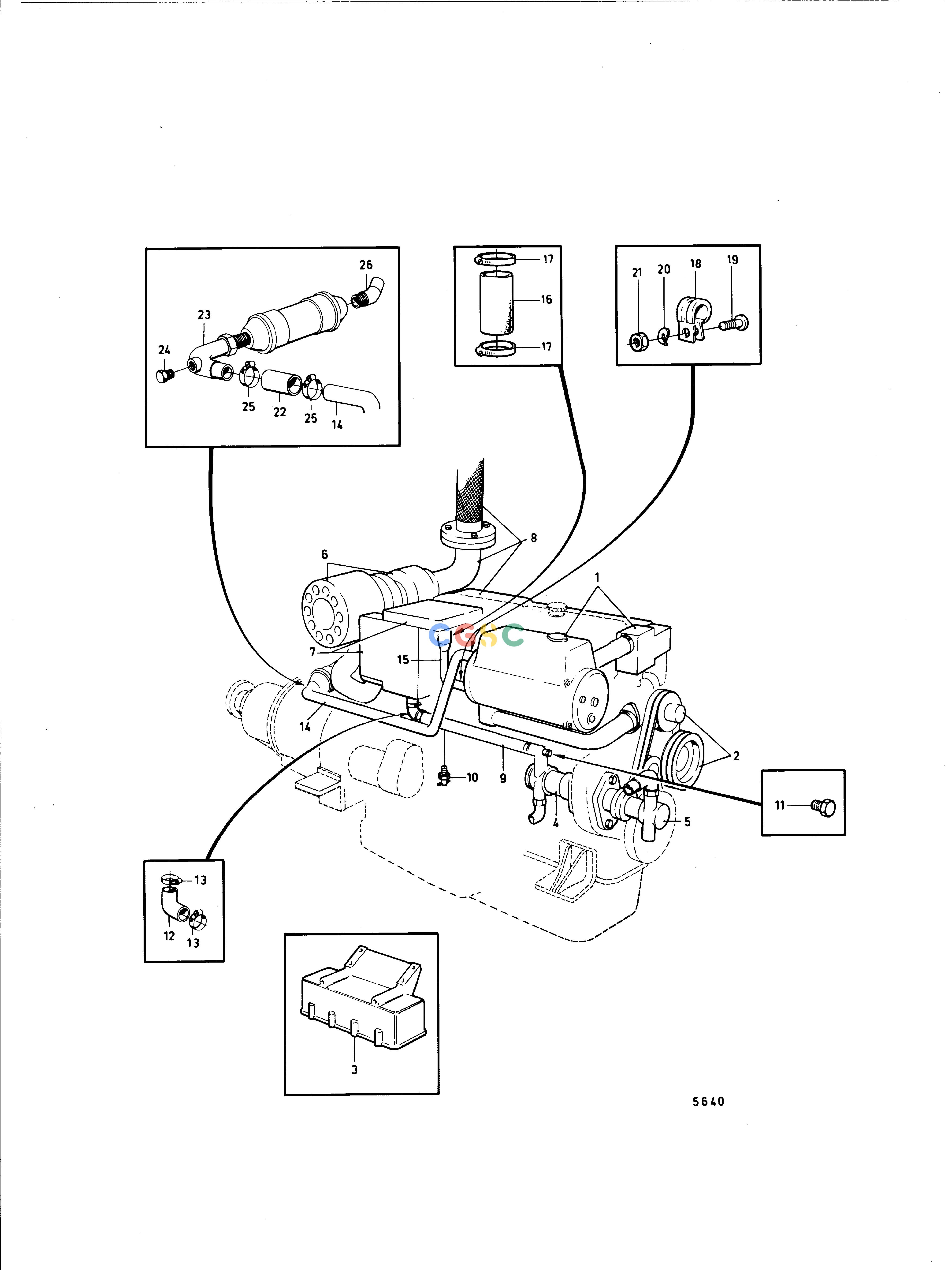

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ECooling SystemCooling System with Tube Heat Exch.Induction and Exhaust ManifoldEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
645 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7743260_034
|
|
tube heat exchanger and thermostat with installation comps
|
|
| 1. |
|
|
|
|
| 2. |
7743260_040
|
|
circulation pump and drive device with installation comps
|
|
| 2. |
|
|
|
|
| 3. |
7743260_036
|
|
oil cooler and installation comps
|
|
| 3. |
|
|
|
|
| 4. |
7743260_037
|
|
sea water pump and installation comps
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
7743260_042
|
|
turbo and air filter with installation comps
|
|
| 6. |
|
|
|
|
| 7. |
7743260_046
|
|
induction manifold and after cooler with installation comps
|
|
| 7. |
|
|
|
|
| 8. |
7743260_048
|
|
exhaust manifold with installation comps
|
|
| 8. |
|
|
|
|
| 9. |
843881
|
[1] |
Tube
|
|
| 10. |
82745
|
[1] |
Shut-off cock
|
|
| 11. |
192134
|
[1] |
Plug
|
|
| 12. |
837670
|
[1] |
Hose bend
|
|
| 13. |
994561
|
[2] |
Hose clamp
|
|
| 14. |
844854
|
[1] |
Tube
|
|
| 15. |
844801
|
[1] |
Tube
|
|
| 16. |
858471
|
[1] |
Hose
|
L=75mm
|
| 17. |
994562
|
[2] |
Hose clamp
|
|
| 18. |
952635
|
[1] |
Clamp
|
|
| 18. |
943717
|
[2] |
Clamp
|
|
| 19. |
950046
|
[3] |
Cross recessed screw
|
|
| 20. |
941906
|
[3] |
Spring washer
|
|
| 21. |
955825
|
[3] |
Hexagon nut
|
|
| 22. |
942707
|
[1] |
Hose
|
L=170mm
|
| 23. |
942334
|
[1] |
Hose attachment
|
|
| 24. |
192134
|
[1] |
Plug
|
|
| 25. |
994560
|
[2] |
Hose clamp
|
|
| 26. |
836759
|
[1] |
Hose attachment
|
|
