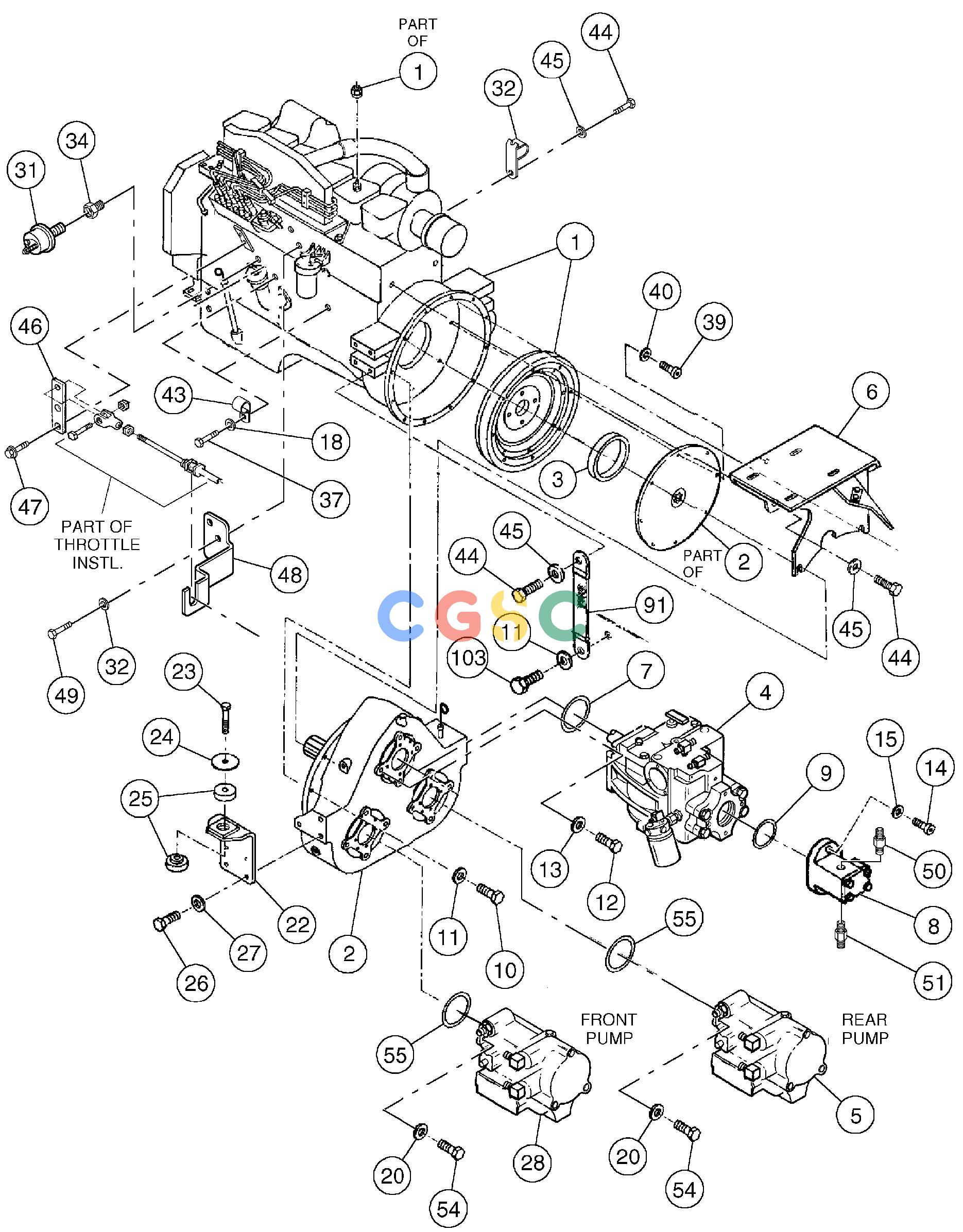

沃尔沃零件查询DD136HF Engine InstallationS/N 53593 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
506 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM13846837
|
[1] |
Engine 6bt-5.9
|
|
| 1. |
RM35387489
|
[1] |
Oil filter
|
|
| 1. |
RM59477570
|
[1] |
Fuel filter
|
|
| 1. |
RM35289081
|
[1] |
None
|
|
| 1. |
RM13378898
|
[1] |
None
|
|
| 1. |
RM54726948
|
[1] |
Alternator
|
|
| 1. |
RM13378880
|
[1] |
Starter motor
|
|
| 2. |
RM43910660
|
[1] |
Pump gearbox
|
|
| 3. |
RM59532093
|
[1] |
Adapter
|
|
| 4. |
|
[1] |
propulsion Pump
|
|
| 5. |
|
[1] |
Vibration Pump Assembly
|
Rear
|
| 6. |
RM13159686
|
[1] |
Bracket
|
|
| 7. |
RM95086708
|
[1] |
O-ring
|
|
| 8. |
RM43842442
|
[1] |
Steering pump
|
|
| 9. |
RM95988713
|
[1] |
O-ring
|
|
| 10. |
VOE997436
|
[12] |
Hexagon screw
|
|
| 11. |
RM96741046
|
[13] |
Plain washer
|
|
| 12. |
RM95919569
|
[4] |
Hexagon screw
|
|
| 13. |
RM59537266
|
[4] |
Plain washer
|
|
| 14. |
RM95055265
|
[2] |
Hex. socket screw
|
|
| 15. |
RM59565036
|
[2] |
Washer
|
|
| 18. |
VOE13955894
|
[6] |
Washer
|
|
| 20. |
RM59539569
|
[4] |
Washer
|
|
| 22. |
RM59077743
|
[2] |
Engine anchorage
|
|
| 23. |
RM96704937
|
[2] |
Hexagon screw
|
|
| 24. |
RM58879768
|
[2] |
Washer
|
|
| 25. |
RM58965872
|
[2] |
Spacer
|
|
| 26. |
RM95919817
|
[8] |
Hexagon screw
|
|
| 27. |
RM59565044
|
[8] |
Washer
|
|
| 28. |
|
[1] |
Vibration Pump Assembly
|
Front
|
| 31. |
RM58878000
|
[1] |
Oil pressure sensor
|
|
| 32. |
RM59726075
|
[4] |
Clamp
|
|
| 34. |
RM59118513
|
[1] |
Adapter
|
|
| 37. |
RM96702816
|
[2] |
Hexagon screw
|
|
| 39. |
RM95068110
|
[8] |
Hex. socket screw
|
|
| 40. |
RM59731380
|
[8] |
Washer
|
|
| 43. |
RM95368338
|
[2] |
Hose clamp
|
|
| 44. |
RM96701495
|
[5] |
Hexagon screw
|
|
| 45. |
RM96738596
|
[5] |
Plain washer
|
|
| 46. |
RM59091900
|
[1] |
Bracket
|
|
| 47. |
RM96701958
|
[2] |
Hexagon screw
|
|
| 48. |
RM59280826
|
[1] |
Bracket
|
|
| 49. |
RM96739768
|
[2] |
Hexagon screw
|
|
| 50. |
RM95371217
|
[1] |
Tooth adapter
|
|
| 51. |
RM59922500
|
[1] |
Adapter
|
|
| 54. |
RM95309829
|
[4] |
Screw
|
|
| 55. |
RM95028494
|
[2] |
O-ring
|
|
| 91. |
RM59409508
|
[1] |
Strap
|
|
| 103. |
RM96702279
|
[1] |
Hexagon screw
|
|
