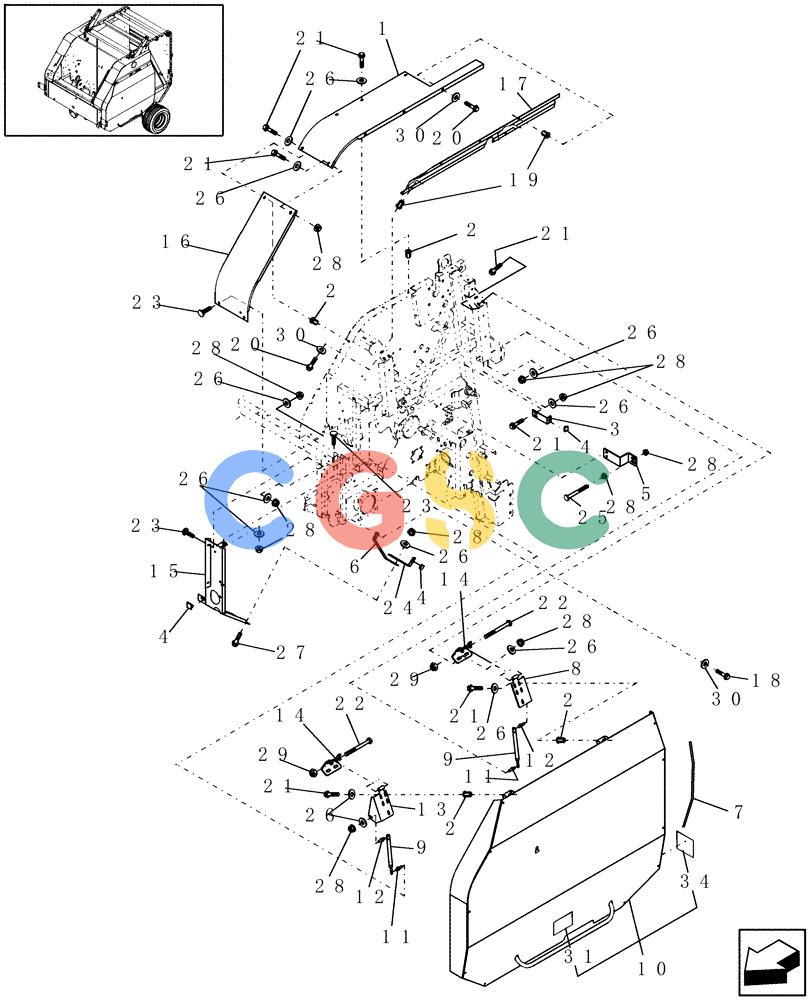

| 1. |
86620775
|
[1] |
SHIELD
|
PA
LH
|
| 2. |
86610200
|
[14] |
THREADED INSERT,M8 x 1.25
|
NH
M8
|
| 3. |
87037609
|
[1] |
ANGLE
|
PA
145mm Lg.
|
| 4. |
9617869
|
[2] |
BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk
|
NH
Rubber, 3/16" Thk
|
| 5. |
87608706
|
[1] |
ANGLE
|
NH
|
| 6. |
87597253
|
[1] |
ANGLE
|
NH
|
| 7. |
86516805
|
[1] |
SOFT TRIM,31-3/4" L
|
NH
Edging
|
| 8. |
86837233
|
[1] |
HINGE
|
PA
|
| 9. |
86628348
|
[2] |
GAS STRUT
|
NH
|
| 10. |
87037616
|
[1] |
DOOR ASSY.
|
PA
LH, North America, Decals Ref. 31 & 34 are Not Included. Superseded by part number: 87041538, 87041538, 87041542
|
| 11. |
86634307
|
[2] |
STUD
|
NH
Short, Ball End Superseded by part number: 87603835
|
| 12. |
86628347
|
[2] |
STUD,M8 x 36.5mm OAL, 10mm OD Ball
|
NH
Long, Ball End
|
| 13. |
86837232
|
[1] |
HINGE
|
PA
|
| 14. |
87037410
|
[2] |
HINGE
|
PA
Lower, Square-Shaped
|
| 15. |
87601922
|
[1] |
SHIELD
|
NH
LH, North America Superseded by part number: 87673600
|
| 15. |
87673600
|
[1] |
SHIELD
|
NH
LH, Europe & R.O.W.
|
| 16. |
86620774
|
[1] |
SHIELD
|
NH
Superseded by part number: 86620763
|
| 17. |
86620786
|
[1] |
PANEL
|
PA
LH Superseded by part number: 87047012
|
| 18. |
677808
|
[2] |
SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"
|
NH
HWH, 1/4"-20 x 5/8"
|
| 19. |
86610198
|
[5] |
INSERT,M6 x 1
|
NH
Threaded, M6
|
| 20. |
844-6020
|
[5] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 21. |
844-8020
|
[19] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 22. |
814-8070
|
[2] |
BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8
|
CAS
Superseded by part number: 7120024
|
| 23. |
811-8020
|
[9] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 24. |
87608704
|
[1] |
BRACKET
|
NH
|
| 25. |
814-8050
|
[1] |
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 43130
|
| 26. |
322358
|
[34] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 27. |
9804260
|
[2] |
BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8
|
NH
|
| 28. |
825-2408
|
[24] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 29. |
832-46408
|
[2] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 30. |
322357
|
[6] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 31. |
86631518
|
[1] |
DANGER DECAL
|
NH
English
|
| 31. |
86632801
|
[1] |
DECAL
|
NH
DANGER, French
|
| 34. |
86626958
|
[1] |
WARNING DECAL
|
NH
English
|
| 34. |
86626961
|
[1] |
WARNING DECAL
|
PA
French
|
