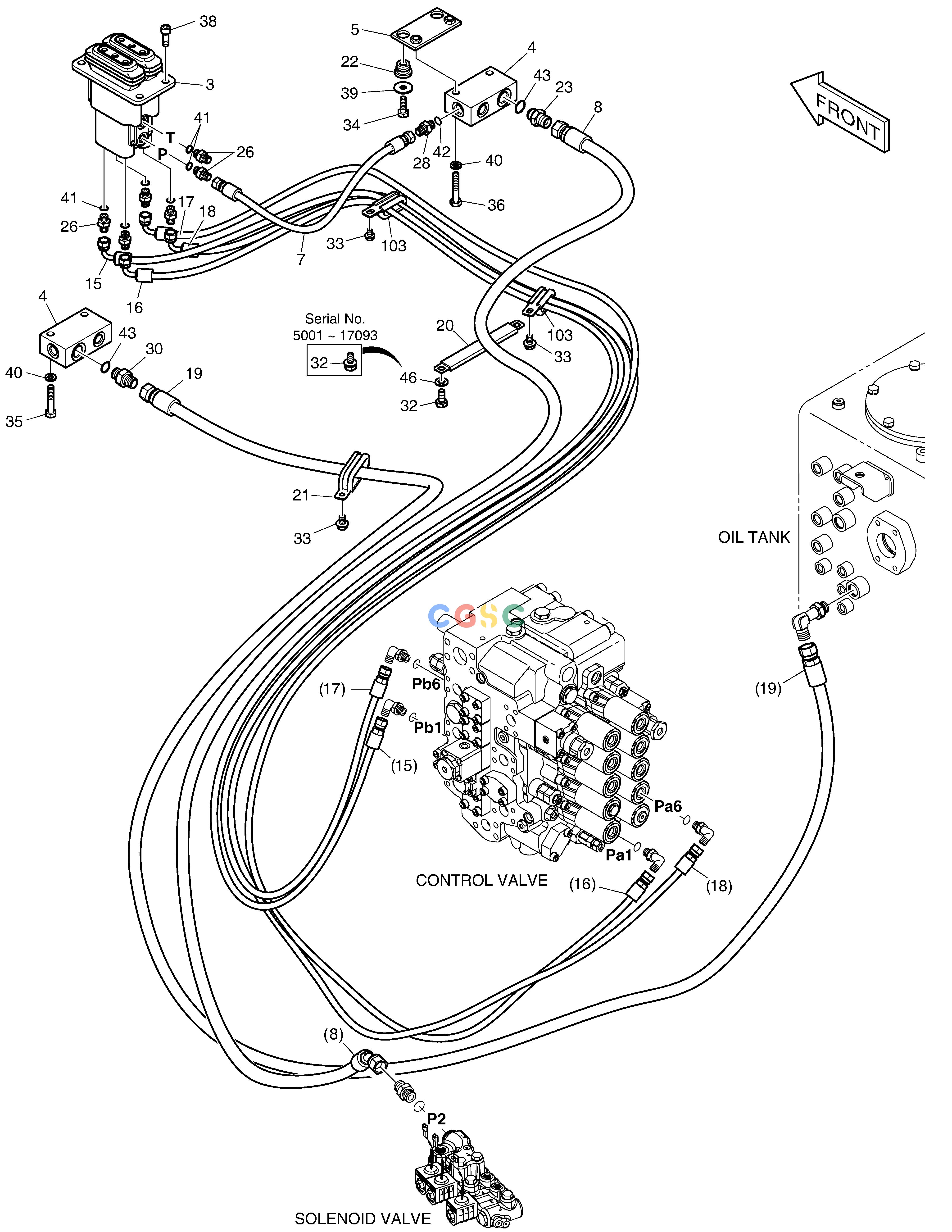

斗山零件查询PILOT PIPING(3) - ROPS DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11337A
|
[-] |
|
|
| -. |
420212-11337B
|
[-] |
|
|
| -. |
420212-11337C
|
[-] |
|
|
| -. |
420212-11337
|
[-] |
|
|
| 103. |
124-00209D3
|
[2] |
CLIP
|
|
| 15. |
DS2093189
|
[1] |
HOSE
|
|
| 16. |
DS2093191
|
[1] |
HOSE
|
|
| 17. |
DS2093190
|
[1] |
HOSE
|
|
| 18. |
DS2093192
|
[1] |
HOSE
|
|
| 19. |
DS2053897
|
[1] |
HOSE
|
|
| 19. |
DS2053833
|
[1] |
HOSE
|
|
| 20. |
120202-00009
|
[1] |
|
|
| 21. |
124-00209D8
|
[1] |
CLIP
|
|
| 22. |
198-00016
|
[2] |
RUBBER
|
|
| 23. |
2471-1135
|
[1] |
FILTER
|
|
| 26. |
2181-1126D14
|
[6] |
ADAPTER
|
|
| 28. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 3. |
420-00467A
|
[1] |
VALVE,PEDAL
|
|
| 30. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 32. |
DS0025042
|
[2] |
BOLT
|
|
| 32. |
S0511966
|
[2] |
BOLT
|
|
| 33. |
K1001029
|
[3] |
BOLT
|
|
| 34. |
S0512266
|
[2] |
BOLT
|
|
| 35. |
S0558666
|
[2] |
BOLT
|
|
| 36. |
S0558766
|
[2] |
BOLT
|
|
| 38. |
S2212266
|
[4] |
BOLT
|
|
| 39. |
2114-1058D10
|
[2] |
WASHER
|
|
| 39. |
120804-00078
|
[2] |
WASHER
|
|
| 4. |
2423-1470
|
[2] |
BLOCK
|
|
| 40. |
2114-2031D5
|
[4] |
WASHER
|
|
| 41. |
S8000111
|
[6] |
O-RING
|
|
| 42. |
S8000141
|
[1] |
O-RING
|
|
| 43. |
S8000181
|
[2] |
O-RING
|
|
| 46. |
120804-00076
|
[2] |
WASHER
|
|
| 5. |
621-02151
|
[1] |
PLATE
|
|
| 7. |
DS2094006
|
[1] |
HOSE
|
|
| 8. |
DS2054356
|
[1] |
HOSE
|
|
