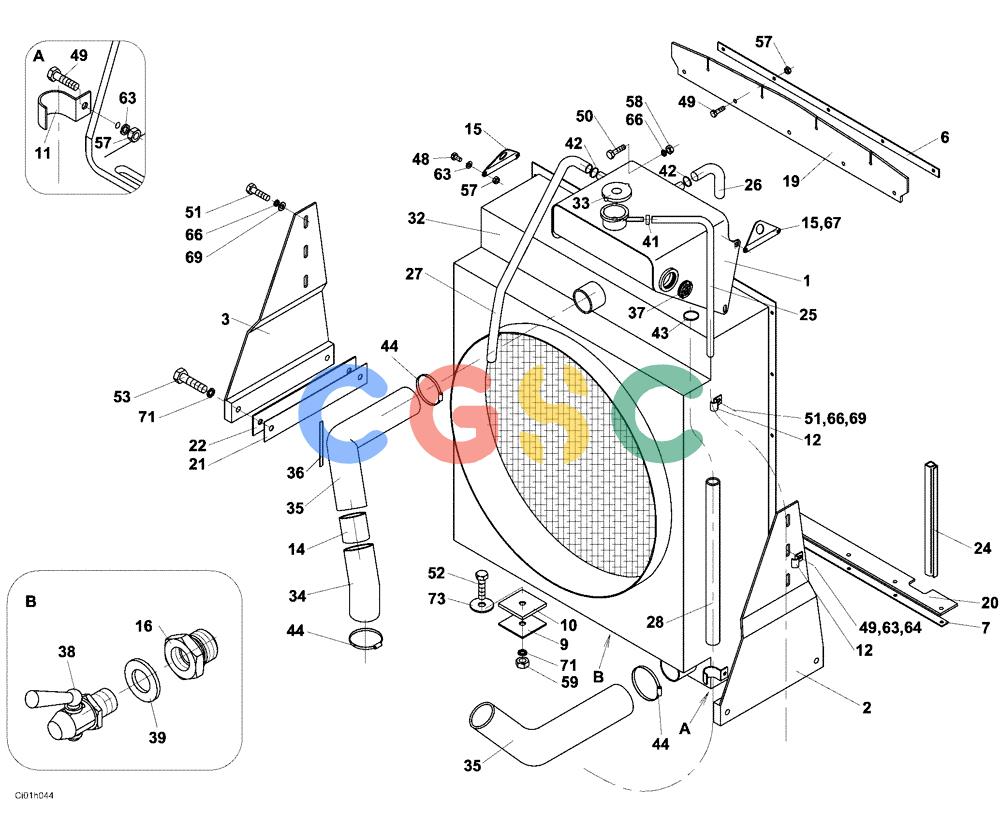

纽荷兰零件查询(CV2000) - VIBRATORY ROLLER (02-002-00[01]) - WATER CIRCUIT - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
638 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104640 | [1] | RESERVOIR | STA |
| 2. | ND104707 | [1] | BRACKET | STA |
| 3. | ND104708 | [1] | SUPPORT | STA |
| 6. | ND104735 | [1] | PLATE | STA |
| 7. | ND104734 | [1] | PLATE | STA |
| 9. | ND052391 | [2] | SPACER | STA |
| 10. | ND052393 | [2] | SPACER | STA |
| 11. | ND104773 | [1] | CLIP | STA |
| 12. | ND053345 | [3] | CLAMP | STA |
| 14. | ND054151 | [1] | TUBE | STA |
| 15. | ND054213 | [2] | BRACKET | STA |
| 16. | ND104358 | [1] | HYD CONNECTOR | STA |
| 19. | ND104691 | [1] | PORT | STA |
| 20. | ND104706 | [1] | PORT | STA |
| 21. | ND104764 | [4] | SHIM | STA |
| 22. | ND104770 | [2] | SHIM | STA |
| 24. | ND106257 | [2] | PROTECTION STRIP | STA |
| 25. | ND076325 | [1] | HOSE | STA Superseded by part number: ND139633 |
| 26. | ND075728 | [1] | HOSE | STA |
| 27. | ND076323 | [1] | HOSE,520.00 mm | STA Superseded by part number: ND107513 |
| 28. | ND106260 | [1] | HOSE | STA |
| 32. | ND065001 | [1] | COOLER | STA |
| 33. | ND090690 | [1] | COVER | STA |
| 34. | ND090755 | [1] | HOSE | STA |
| 35. | ND079346 | [2] | HOSE | STA |
| 36. | ND106910 | [1] | STRAP | STA |
| 37. | ND070149 | [1] | SIGHTGLASS | STA |
| 38. | ND093192 | [1] | DRAINCOCK/TAP SUPPLY | STA |
| 39. | ND073324 | [1] | SEALING RING | STA |
| 41. | ND069521 | [1] | CLAMP | STA |
| 42. | ND105776 | [4] | CLAMP | STA Superseded by part number: ND107318 |
| 43. | ND105777 | [2] | CLAMP | STA Superseded by part number: ND107319 |
| 44. | ND105775 | [6] | HOSE CLAMP | STA |
| 48. | ND021289 | [11] | BOLT | STAM6 x 20 |
| 50. | ND021294 | [1] | BOLT | STA |
| 51. | ND021295 | [6] | BOLT | STA |
| 52. | ND021312 | [2] | BOLT | STA |
| 53. | ND021315 | [4] | BOLT | STA |
| 57. | ND026415 | [15] | NUT | STA Superseded by part number: ND027300 |
| 58. | ND034087 | [1] | NUT | STA |
| 59. | ND034086 | [2] | NUT | STA |
| 63. | ND029309 | [9] | SPRING WASHER | STA |
| 64. | ND029248 | [8] | WASHER | STA |
| 66. | ND035940 | [7] | SPRING WASHER | STA |
| 67. | ND029249 | [2] | WASHER | STA |
| 69. | ND029285 | [6] | WASHER | STA |
| 71. | ND035942 | [6] | WASHER | STA |
| 73. | ND029287 | [2] | WASHER | STA |
