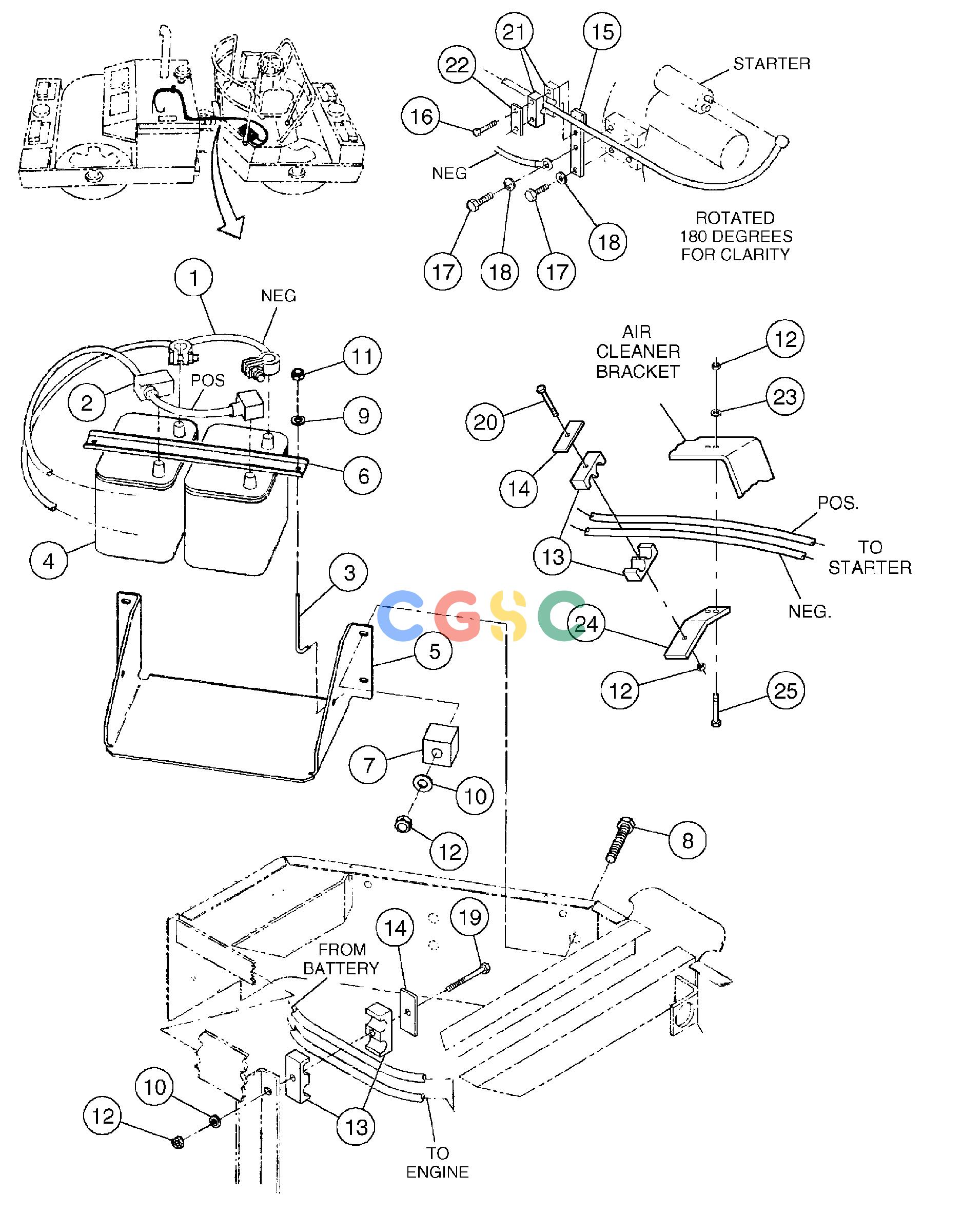

沃尔沃零件查询DD136HF Battery installationS/N 53593 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
555 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM59280099
|
[1] |
Battery cable
|
|
| 2. |
RM13251020
|
[1] |
Battery cable
|
|
| 3. |
RM59027151
|
[2] |
Bolt
|
|
| 4. |
RM54616081
|
[1] |
Battery
|
|
| 5. |
RM59027144
|
[1] |
Battery shelf
|
|
| 6. |
RM59027169
|
[1] |
Plate
|
|
| 7. |
RM58996232
|
[4] |
Spacer
|
|
| 8. |
RM96702402
|
[4] |
Hexagon screw
|
|
| 9. |
VOE955892
|
[2] |
Plain washer
|
|
| 10. |
VOE13955894
|
[5] |
Washer
|
|
| 11. |
RM96704598
|
[2] |
Jam nut
|
|
| 12. |
RM96704606
|
[8] |
Jam nut
|
|
| 13. |
RM59587014
|
[4] |
Clamp
|
|
| 14. |
RM59583500
|
[2] |
Plate
|
|
| 15. |
RM95373973
|
[REQ] |
Locking wire
|
|
| 16. |
RM95920641
|
[2] |
Hexagon screw
|
|
| 17. |
RM96701495
|
[1] |
Hexagon screw
|
|
| 18. |
RM96738596
|
[1] |
Plain washer
|
|
| 19. |
RM96712583
|
[1] |
Hexagon screw
|
|
| 20. |
RM96712583
|
[1] |
Hexagon screw
|
|
| 21. |
RM59680413
|
[2] |
Clamp
|
|
| 22. |
RM59587816
|
[1] |
Cover plate
|
|
| 23. |
VOE13955894
|
[2] |
Washer
|
|
| 24. |
RM13159702
|
[1] |
None
|
|
| 25. |
RM96702659
|
[2] |
Hexagon screw
|
|
