神钢零件查询(6D16-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-025) - TURBO CHARGER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
392 次

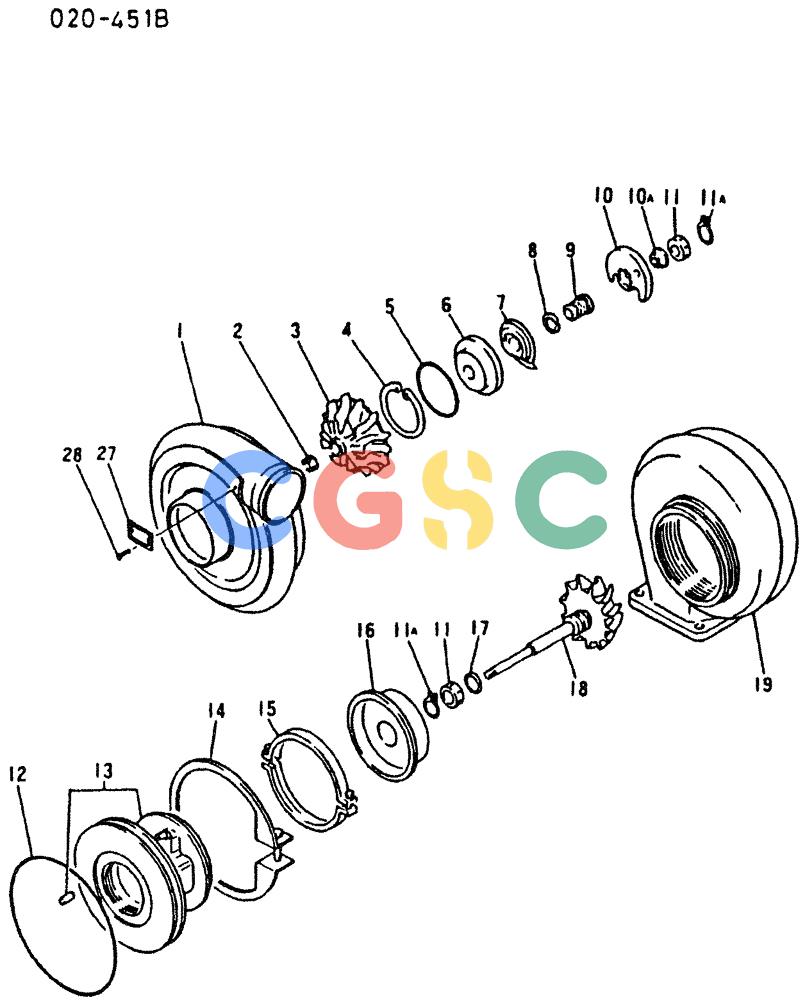

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-28. | VAME047102 | [1] | TURBOCHARGER | KOBTURBOCHARGER ASSY TD07-22A |
| 1. | VAME719975 | [1] | COVER,COMPR | |
| 2. | VAME719861 | [1] | LOCK NUT | KOBNUT,LOCK Superseded by part number: 134956A1 |
| 3. | VAME719952 | [1] | WHEEL,COMPR | |
| 4. | VAME719828 | [1] | SNAP RING | KOBRING,SNAP |
| 5. | VAME719825 | [1] | O-RING | KOBO-RING Superseded by part number: 134964A1 |
| 6. | VAME719824 | [1] | INSERT INSERT | INSERT INSERT |
| 7. | VAME719822 | [1] | DEFLECTOR | KOBDIFELECTOR,OIL |
| 8. | VAME719864 | [1] | PISTON RING | KOBRING,PISTON Superseded by part number: 134944A1 |
| 9. | VAME719860 | [1] | SLEEVE,THRUST SLEEVE,THRUST | SLEEVE,THRUST SLEEVE,THRUST |
| 10. | VAME719030 | [1] | THRUST BEARING | KOBBEARING,THRUST Superseded by part number: 134929A1 |
| 10A. | VAME719056 | [1] | THRUST RING | KOBRING,THRUST |
| 11. | VAME719820 | [2] | BEARING | KOBBEARING Superseded by part number: 134927A1 |
| 11A. | VAME719823 | [2] | SNAP RING | KOBRING,SNAP Superseded by part number: VA4917422300 |
| 12. | VAME719826 | [1] | O-RING | KOBO-RING Superseded by part number: 134965A1 |
| 13. | VAME719942 | [1] | BEARING HOUSING & PIN ASSY | |
| 14. | VAME719829 | [1] | SNAP RING | KOBSNAP RING ASSY |
| 15. | VAME719810 | [1] | COUPLING | KOBCOUPLING ASSY |
| 16. | VAME719940 | [1] | PLATE,TURBINE BACK | |
| 17. | VAME719995 | [1] | PISTON RING SET | KOBRING,PISTON |
| 18. | VAME719944 | [1] | SHAFT & TURBINE WHEEL ASSY | |
| 19. | VAME719934 | [1] | HOUSING,TURBINE | |
| 27. | VAME719637 | [1] | PLATE,NAME | |
| 28. | VAME719741 | [2] | RIVET,SCREW 2X4.8 | |
