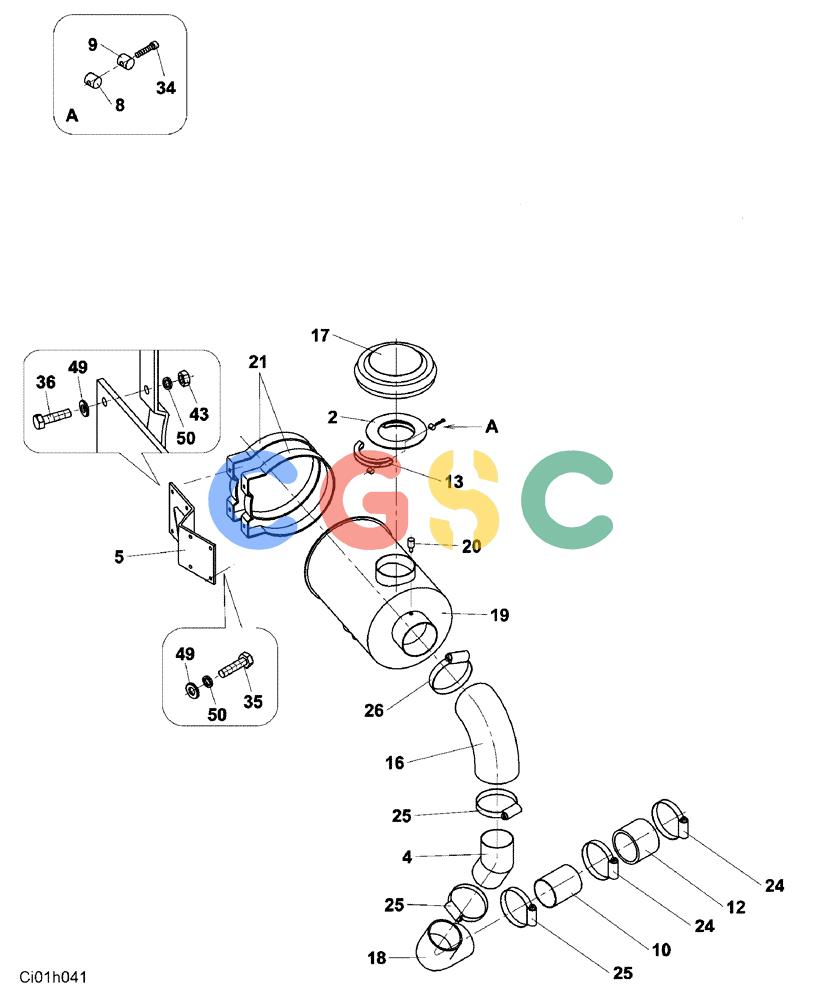

纽荷兰零件查询(CV2000) - VIBRATORY ROLLER (02-006-00[01]) - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
469 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | ND104732 | [1] | PORT | STA |
| 4. | ND104731 | [1] | ELBOW | STA |
| 5. | ND104700 | [1] | HOLDER | STA |
| 8. | ND046952 | [2] | NUT | STA |
| 9. | ND046948 | [2] | WASHER | STA |
| 10. | ND104771 | [1] | PIPE FITTING | STA |
| 12. | ND076198 | [1] | HOSE | STA Superseded by part number: ND115431 |
| 13. | ND104733 | [1] | ADJUSTING SLEEVE | STA |
| 16. | ND065532 | [1] | ELBOW | STA |
| 17. | ND065531 | [1] | COVER | STA |
| 18. | ND065521 | [1] | HOSE | STA |
| 19. | ND065530 | [1] | AIR CLEANER | STA |
| 20. | ND065534 | [1] | WARNING LIGHT | STA |
| 21. | ND065533 | [2] | BRACKET | STA |
| 24. | ND069507 | [2] | CLAMP | STA |
| 25. | ND069508 | [3] | CLAMP | STA |
| 34. | ND024236 | [2] | BOLT | STA |
| 35. | ND021302 | [5] | BOLT | STA |
| 36. | ND021303 | [4] | BOLT | STA |
| 43. | ND034088 | [4] | NUT | STA |
| 49. | ND035941 | [9] | WASHER | STA |
| 50. | ND029266 | [10] | WASHER | STA |
