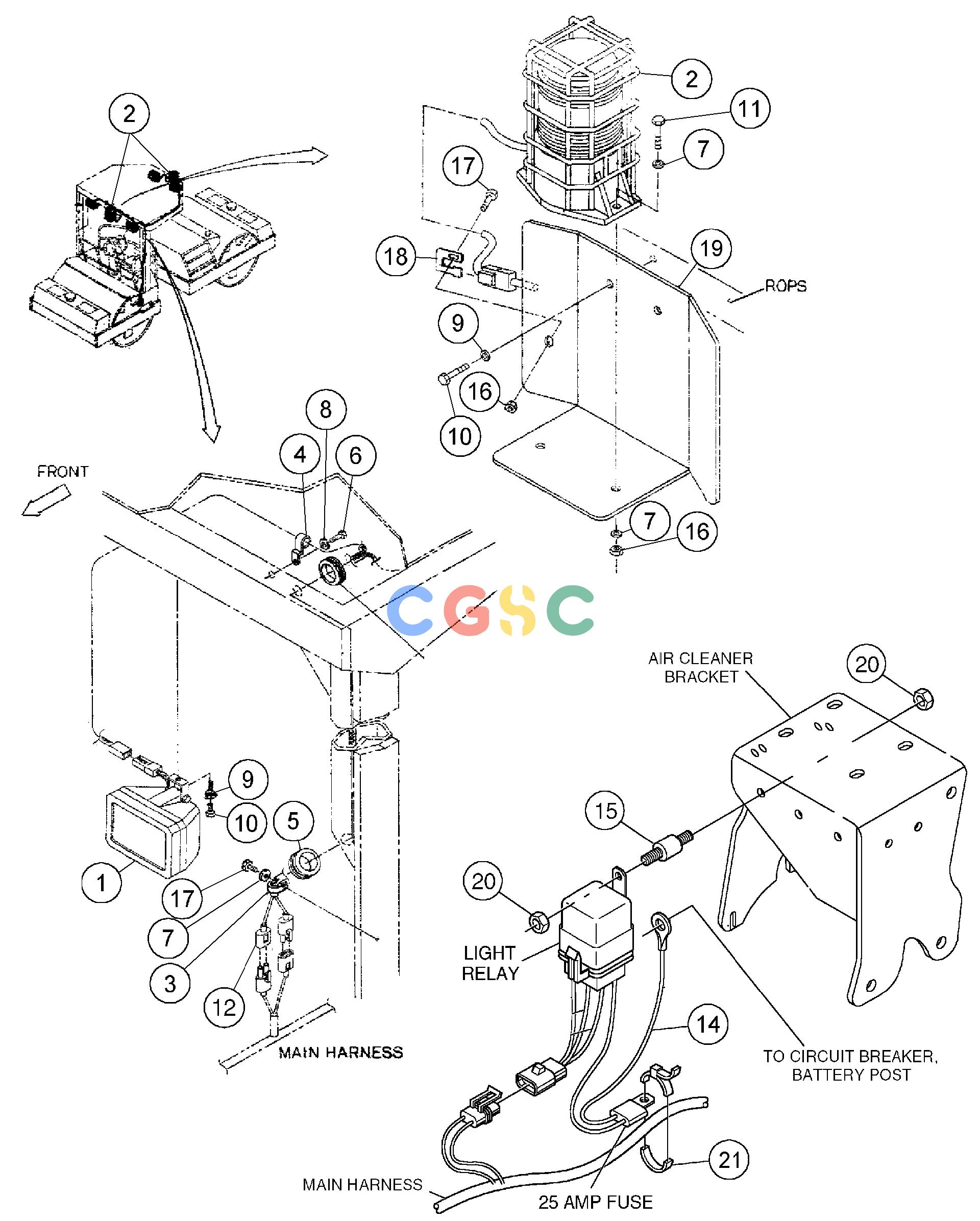

沃尔沃零件查询DD136HF Rotating Beacon InstallationS/N 53593 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
461 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[4] |
Work Lamp
|
|
| 1. |
RM59854943
|
[4] |
Connector
|
|
| 1. |
RM59854828
|
[8] |
Pin
|
|
| 1. |
RM59854877
|
[8] |
Cable seal
|
|
| 1. |
RM59050732
|
[4] |
Lamp
|
|
| 1. |
RM58875543
|
[1] |
Bulb
|
|
| 1. |
RM59050740
|
[4] |
Clip
|
|
| 2. |
RM59083105
|
[2] |
Warning flasher
|
|
| 2. |
RM59023077
|
[1] |
Lens
|
|
| 2. |
RM59022871
|
[1] |
Bulb
|
|
| 3. |
RM59020206
|
[2] |
Clamp
|
|
| 4. |
RM59020305
|
[13] |
Clamp
|
|
| 5. |
RM59044099
|
[2] |
Grommet
|
|
| 6. |
RM96702394
|
[13] |
Hexagon screw
|
|
| 7. |
RM96738554
|
[10] |
Plain washer
|
|
| 8. |
VOE955892
|
[13] |
Plain washer
|
|
| 9. |
VOE13955894
|
[8] |
Washer
|
|
| 10. |
RM96702659
|
[8] |
Hexagon screw
|
|
| 11. |
RM96705249
|
[4] |
Hexagon screw
|
|
| 12. |
RM59077552
|
[1] |
Cable harness
|
|
| 14. |
RM59233676
|
[1] |
Wiring harness
|
|
| 15. |
RM59970384
|
[1] |
Rubber damper
|
|
| 16. |
RM96705132
|
[6] |
Hexagon nut
|
|
| 17. |
RM96705744
|
[4] |
Hexagon screw
|
|
| 18. |
RM59048843
|
[2] |
Clip
|
|
| 19. |
RM59091017
|
[2] |
Bracket
|
|
| 20. |
RM59327825
|
[2] |
Hexagon nut
|
|
| 21. |
RM95424586
|
[REQ] |
Cable tie
|
|
