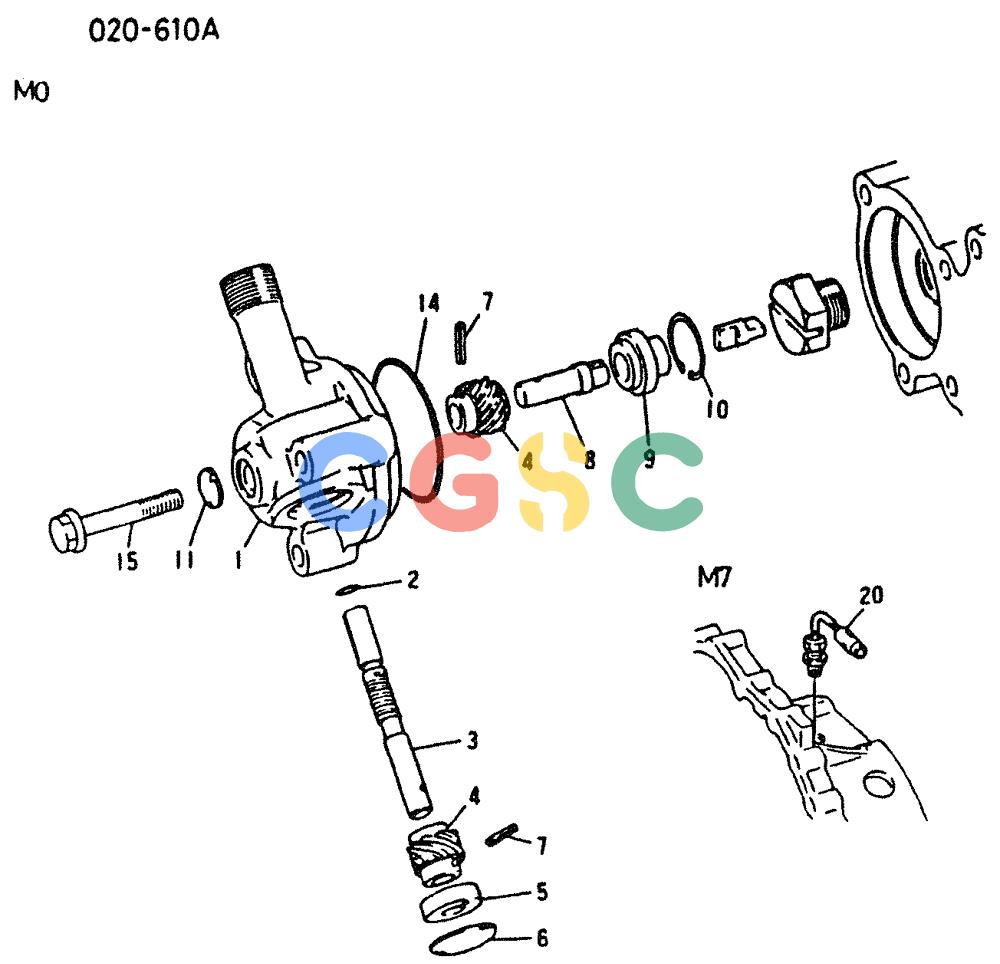

神钢零件查询(6D16-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-038) - TACHOMETER GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
988 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-11. | VAME032821 | [1] | TACHOMETER DRIVE ASSY M22X1.5,FOR M0 ONLY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCASE,TACHO DRIVE,FOR M0 ONLY |
| 2. | VAMH035109 | [1] | O-RING,FOR M0 ONLY | |
| 3. | VA3122530300 | [1] | SHAFT,TACHO DRIVE,FOR M0 ONLY | |
| 4. | VAME068007 | [2] | GEAR GEAR Z=14,FOR M0 ONLY | GEAR GEAR Z=14,FOR M0 ONLY |
| 5. | VAME038075 | [1] | BUSHING BUSHING,FOR M0 ONLY | BUSHING BUSHING,FOR M0 ONLY |
| 6. | VAMF665508 | [1] | PLUG,EXPANSION 28,FOR M0 ONLY | |
| 7. | VAMF472537 | [2] | PIN SPRING PIN,SPG 3X18,FOR M0 ONLY | PIN SPRING PIN,SPG 3X18,FOR M0 ONLY |
| 8. | VAME038073 | [1] | SHAFT,TACHO DRIVE,FOR M0 ONLY | |
| 9. | VAME038074 | [1] | RETAINER,FOR M0 ONLY | |
| 10. | VAMF522215 | [1] | RING,SNAP 25,FOR M0 ONLY | |
| 11. | VAMF665503 | [1] | PLUG | KOBPLUG,EXPANSION 15,FOR M0 ONLY |
| 14. | VAMH035108 | [1] | O-RING O-RING,FOR M0 ONLY | O-RING O-RING,FOR M0 ONLY |
| 15. | VAMF140235 | [1] | BOLT | KOBBOIT,FLAHGE 8X30,FOR M0 ONLY |
| 20. | VAMC845235 | [1] | SENDER UNIT | KOBSENSOR,SPEED,FOR M7 ONLY Superseded by part number: 240067A1 |
