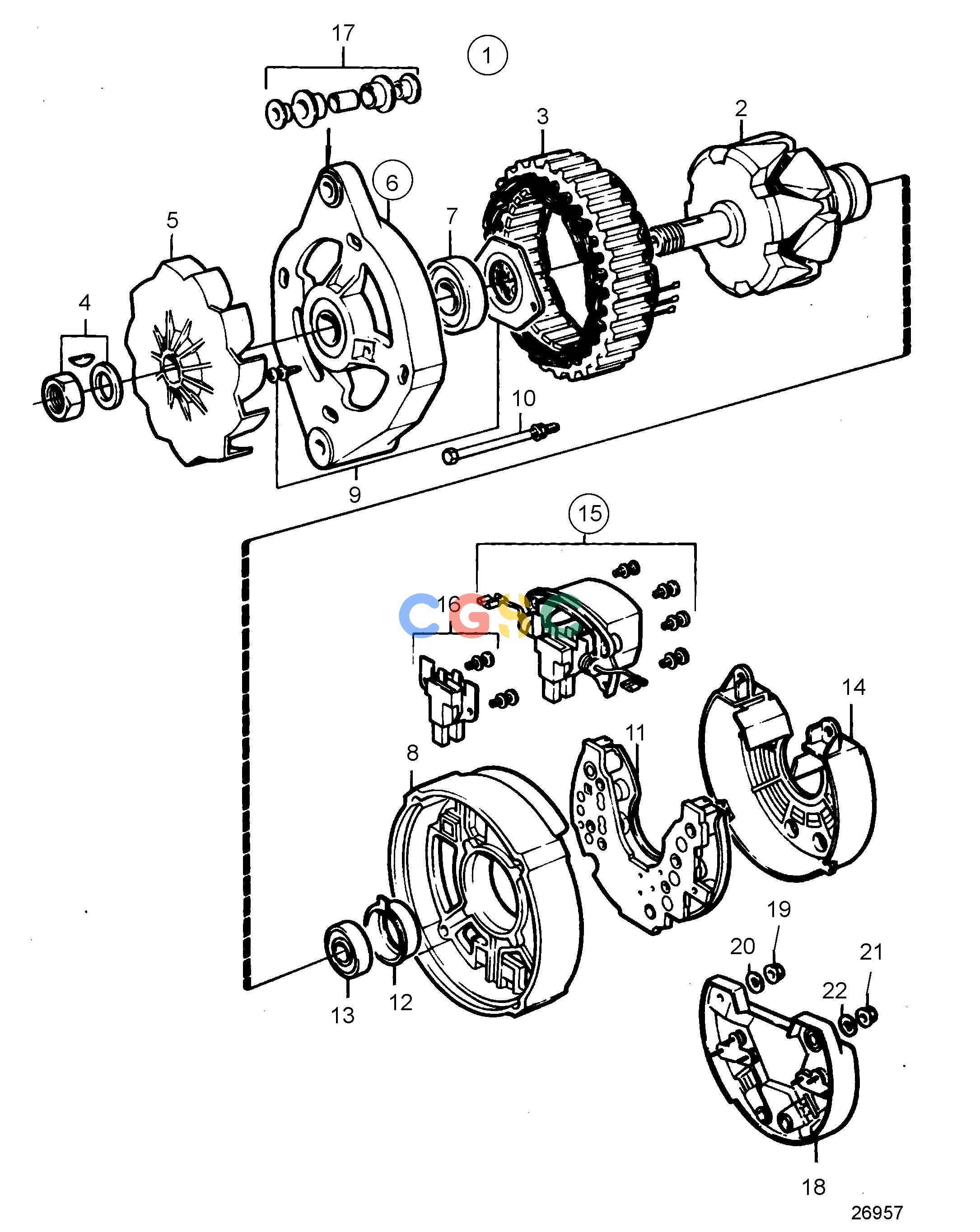

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemAlternator: 847604EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
623 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
847604
|
[1] |
Alternator
|
14V 35A
|
| 2. |
848400
|
[1] |
Rotor
|
|
| 3. |
848401
|
[1] |
Field winding
|
|
| 4. |
838916
|
[1] |
Shaft set
|
|
| 5. |
838917
|
[1] |
Fan
|
|
| 6. |
838914
|
[1] |
End plate
|
|
| 7. |
848402
|
[1] |
Ball bearing
|
|
| 8. |
838915
|
[1] |
End plate
|
|
| 9. |
840625
|
[1] |
Mounting kit
|
|
| 10. |
840626
|
[1] |
Screw kit
|
|
| 11. |
6212687
|
[1] |
Diode retainer
|
|
| 12. |
838919
|
[1] |
Retainer
|
|
| 13. |
840630
|
[1] |
Ball bearing
|
|
| 14. |
840631
|
[1] |
Protecting casing
|
|
| 15. |
858840
|
[1] |
Governor
|
|
| 16. |
840632
|
[1] |
Brush retainer
|
|
| 17. |
840634
|
[1] |
Guide
|
|
| 18. |
840638
|
[1] |
Charge distributor
|
For charging of 2 batteries.
|
| 19. |
955781
|
[1] |
Hexagon nut
|
+
|
| 20. |
949607
|
[1] |
Spring washer
|
|
| 21. |
955780
|
[1] |
Hexagon nut
|
|
| 22. |
941905
|
[1] |
Spring washer
|
|
