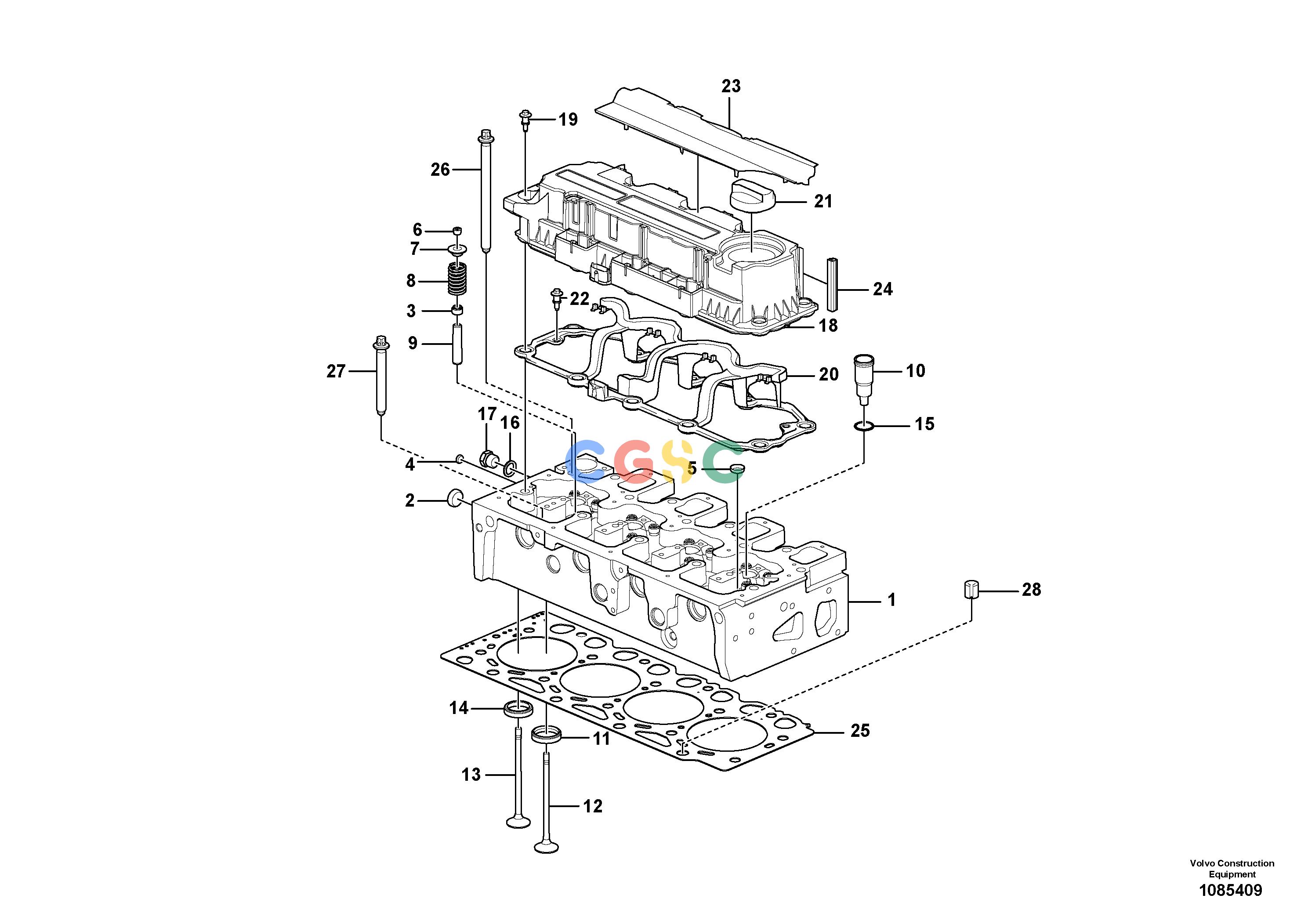

沃尔沃零件查询DD140C Cylinder head with fitting parts290005 - NoneNone17229269, 17507000Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
164 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE22813338
|
[1] |
Cylinder head
|
|
| 2. |
VOE20834024
|
[4] |
Cap plug
|
|
| 3. |
VOE20459855
|
[16] |
Valve seal
|
|
| 4. |
VOE20914266
|
[2] |
Core Plug
|
|
| 5. |
VOE20412733
|
[10] |
Core plug
|
|
| 6. |
VOE20459857
|
[32] |
Valve sleeve
|
|
| 7. |
VOE20788860
|
[16] |
Cap
|
|
| 8. |
VOE21775124
|
[16] |
Valve spring
|
|
| 9. |
VOE22494872
|
[16] |
Valve guide
|
|
| 10. |
VOE20903104
|
[4] |
Sleeve
|
|
| 11. |
VOE21775154
|
[8] |
Valve insert
|
|
| 12. |
VOE22810953
|
[8] |
Inlet valve
|
|
| 13. |
VOE22810655
|
[8] |
Exhaust valve
|
|
| 14. |
VOE21775149
|
[8] |
Valve insert
|
|
| 15. |
VOE20903092
|
[4] |
O-ring
|
|
| 16. |
VOE13969011
|
[1] |
Gasket
|
|
| 17. |
VOE20460000
|
[1] |
Plug
|
|
| 18. |
VOE22537568
|
[1] |
Valve cover
|
|
| 19. |
VOE21774068
|
[12] |
Shoulder screw
|
|
| 20. |
VOE23185128
|
[1] |
Gasket
|
|
| 21. |
VOE20412589
|
[1] |
Filler cap
|
|
| 22. |
VOE21774068
|
[2] |
Shoulder screw
|
|
| 23. |
VOE21791383
|
[1] |
Cover strip
|
|
| 24. |
VOE21775052
|
[2] |
Sealing cup
|
|
| 25. |
VOE21791854
|
[1] |
Gasket
|
THICKNESS = 1.30 MM
|
| 25. |
VOE22343417
|
[1] |
Gasket
|
THICKNESS = 1.40 MM
|
| 25. |
VOE21791807
|
[1] |
Gasket
|
THICKNESS = 1.50 MM
|
| 26. |
VOE21774869
|
[14] |
Flange screw
|
|
| 27. |
VOE20459838
|
[4] |
Bolt
|
|
| 28. |
VOE20459839
|
[2] |
Bushing
|
|
