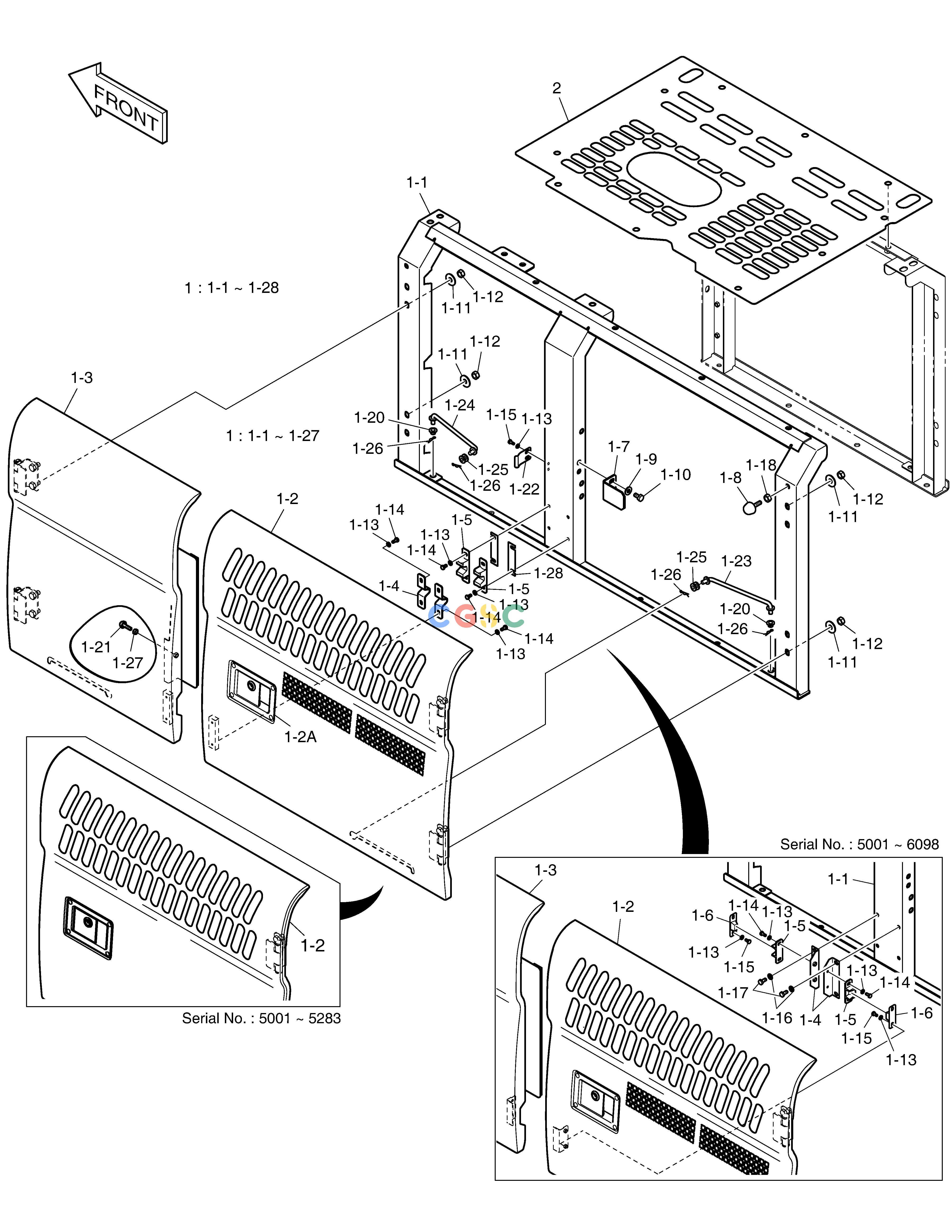

斗山零件查询SIDE DOOR - L.H (TROPICAL) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
163 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1046175A
|
[-] |
COVER;TROPICAL
|
|
| -. |
K1052773
|
[-] |
COVER;TROPICAL
|
|
| 1. |
K1046174A
|
[1] |
DOOR ASS'Y;SIDE(L.H)
|
K1052774
|
| 1. |
K1052774
|
[1] |
DOOR ASS'Y;SIDE(L.H)
|
110982-00132
|
| 1. |
110982-00132
|
[1] |
|
110982-00132A
|
| 1. |
110982-00132A
|
[1] |
|
110982-00132B
|
| 1. |
110982-00132B
|
[1] |
|
|
| 1-1. |
K1038917B
|
[1] |
SUPPORT(L.H)
|
|
| 1-1. |
110958-00230
|
[1] |
|
|
| 1-10. |
S0511853
|
[2] |
BOLT
|
|
| 1-10. |
S0512053
|
[2] |
BOLT
|
|
| 1-11. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 1-11. |
120804-00079
|
[8] |
WASHER
|
|
| 1-12. |
S4012733
|
[8] |
NUT
|
|
| 1-13. |
S5010313
|
[10] |
WASHER
|
|
| 1-14. |
S0504553
|
[4] |
BOLT
|
|
| 1-14. |
S0504553
|
[8] |
BOLT
|
|
| 1-15. |
S0504453
|
[6] |
BOLT
|
|
| 1-15. |
S0504453
|
[2] |
BOLT
|
|
| 1-16. |
S5010513
|
[4] |
WASHER
|
|
| 1-17. |
S0508753
|
[4] |
BOLT M8X1.25X18
|
|
| 1-18. |
S4012633
|
[3] |
NUT
|
|
| 1-2. |
K1045433
|
[1] |
DOOR;SIDE
|
K1052775
|
| 1-2. |
K1052775
|
[1] |
DOOR;SIDE
|
|
| 1-2. |
110982-00133
|
[1] |
|
110982-00133A
|
| 1-2. |
110982-00133A
|
[1] |
|
|
| 1-20. |
K1000602
|
[2] |
. BUSHING
|
|
| 1-21. |
K1048085
|
[1] |
STOPPER;RUBBER
|
|
| 1-22. |
K1039869B
|
[1] |
PLATE;LOCK
|
|
| 1-23. |
623-00074B
|
[1] |
. STAY ASSY(R.H)
|
101582-00619A
|
| 1-23. |
101582-00619A
|
[1] |
|
|
| 1-24. |
623-00075B
|
[1] |
. STAY ASSY(L.H)
|
|
| 1-24. |
101582-00618A
|
[1] |
|
|
| 1-25. |
K1008335
|
[2] |
. BUSHING
|
|
| 1-26. |
2705-9002
|
[4] |
PIN
|
|
| 1-27. |
S4012533
|
[1] |
NUT
|
|
| 1-28. |
110947-00027
|
[2] |
. SHIM
|
|
| 1-2A. |
125-00034A
|
[1] |
LOCK
|
|
| 1-3. |
K1038919B
|
[1] |
DOOR(L.H)
|
|
| 1-3. |
110982-00131
|
[1] |
|
|
| 1-3. |
110982-00131A
|
[1] |
|
|
| 1-4. |
2116-1522
|
[2] |
PLATE
|
|
| 1-4. |
250201-00028
|
[2] |
. PLATE
|
|
| 1-5. |
2161-9052
|
[2] |
STOPPER;PLATE
|
|
| 1-5. |
110956-00002
|
[2] |
|
110956-00002A
|
| 1-5. |
110956-00002A
|
[2] |
. STOPPER
|
|
| 1-6. |
2161-9053
|
[2] |
STOPPER;RUBBER
|
|
| 1-7. |
K1038920
|
[1] |
PLATE;LOCK
|
|
| 1-8. |
K1001260A
|
[1] |
STOPPER
|
|
| 1-9. |
2114-1058D45
|
[2] |
. WASHER
|
|
| 1-9. |
120804-00078
|
[2] |
WASHER
|
|
| 2. |
K1052808
|
[1] |
COVER;MUFFLER
|
|
