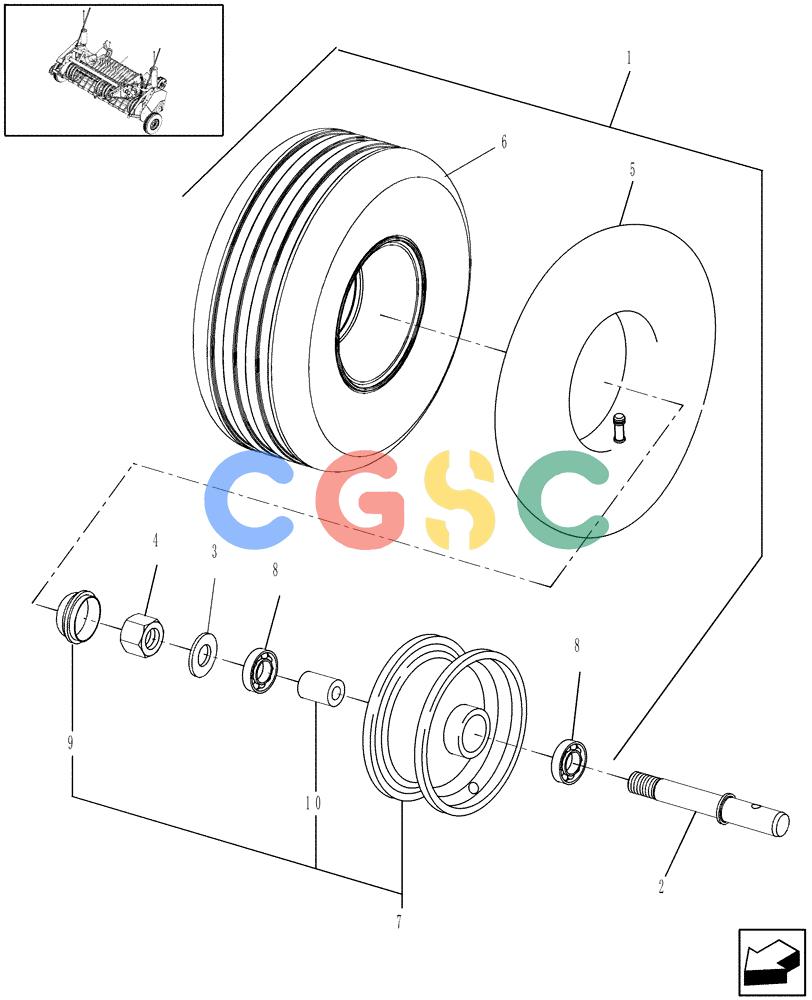

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (11.10[2]) - WHEELS & TIRES, WIDE PICKUP , 15 X 6.00 - 6, USED ON EUROPE ROTOR BALERS, P.I.N. Y9N043085 & AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84607730
|
[1] |
WHEEL ASSY,370mm OD x 160mm W
|
ZED
Pickup, 15 x 6.00-6
|
| 2. |
84132501
|
[1] |
PIN
|
PLO
|
| 3. |
140103
|
[1] |
WASHER,26mm ID x 38mm OD x 1mm Thk
|
ZED
Superseded by part number: 140229
|
| 4. |
9837788
|
[1] |
NUT,M24 x 3, Cl 8.8
|
ZED
|
| 5. |
84429037
|
[1] |
TIRE TUBE
|
ZED
Inner
|
| 6. |
84429038
|
[1] |
TYRE/TIRE
|
ZED
15 x 6.00-6
|
| 7. |
84429039
|
[1] |
RIM
|
ZED
Includes: Ref. 9 - 11
|
| 8. |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
|
| 9. |
84036651
|
[1] |
CAP
|
ZED
|
| 10. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Spacer
|
