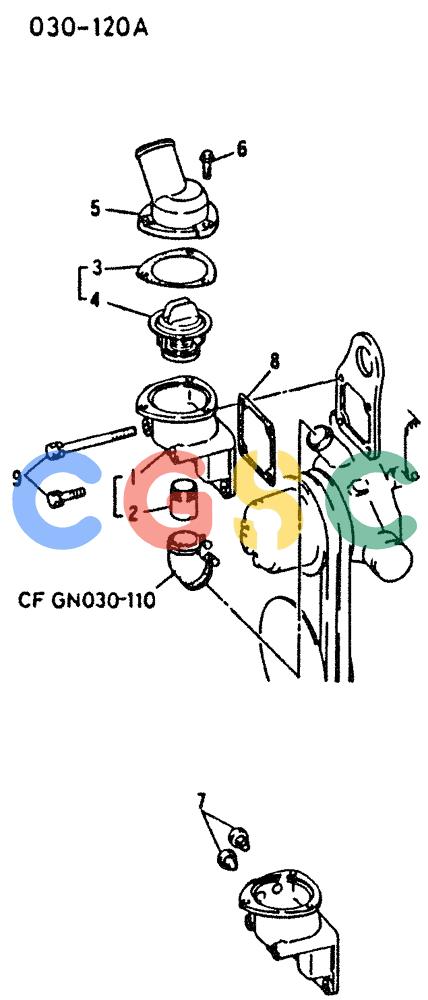

神钢零件查询(6D16-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (01-003) - WATER PIPE AND THERMOSTAT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
578 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME035274 | [1] | CASE | KOBTHERMOSTAT CASE ASSY Superseded by part number: VAME047999 |
| 1. | VAME035281 | [1] | THERMOSTAT | KOBCASE,THERMOSTAT Superseded by part number: VAME047981 |
| 2. | VAME035254 | [1] | UNIVERSAL JOINT | KOBJOINT,BY-PASS |
| 3-4. | VAME999463 | [1] | THERMOSTAT | KOBTHERMOSTAT KIT 76.5°C (FOR SERVICE ONLY) Superseded by part number: 77278300, VAME994514 |
| 3. | VAME035100 | [1] | GASKET | KOBGASKET Superseded by part number: VAME303375 |
| 4. | VAME035320 | [1] | THERMOSTAT THERMOSTAT 76. 5\u00b0C | THERMOSTAT THERMOSTAT 76. 5°C |
| 5. | VAME039575 | [1] | COVER | KOBCOVER,THERMOSTAT |
| 6. | VAMF140227 | [3] | FLANGE BOLT | KOBBOLT,FLANGE 8X25 |
| 7. | VA3124618702 | [2] | PLUG | KOBPLUG Superseded by part number: 240292A1 |
| 8. | VAME031082 | [1] | GASKET | KOBGASKET,HANGER Superseded by part number: VAME074770 |
| 9. | VAMH000517 | [2] | BOLT | KOBBOLT,SEAL 10X30 |
| . . | VAMH000537 | [2] | BOLT | KOBBOLT,SEAL 10X105 |
