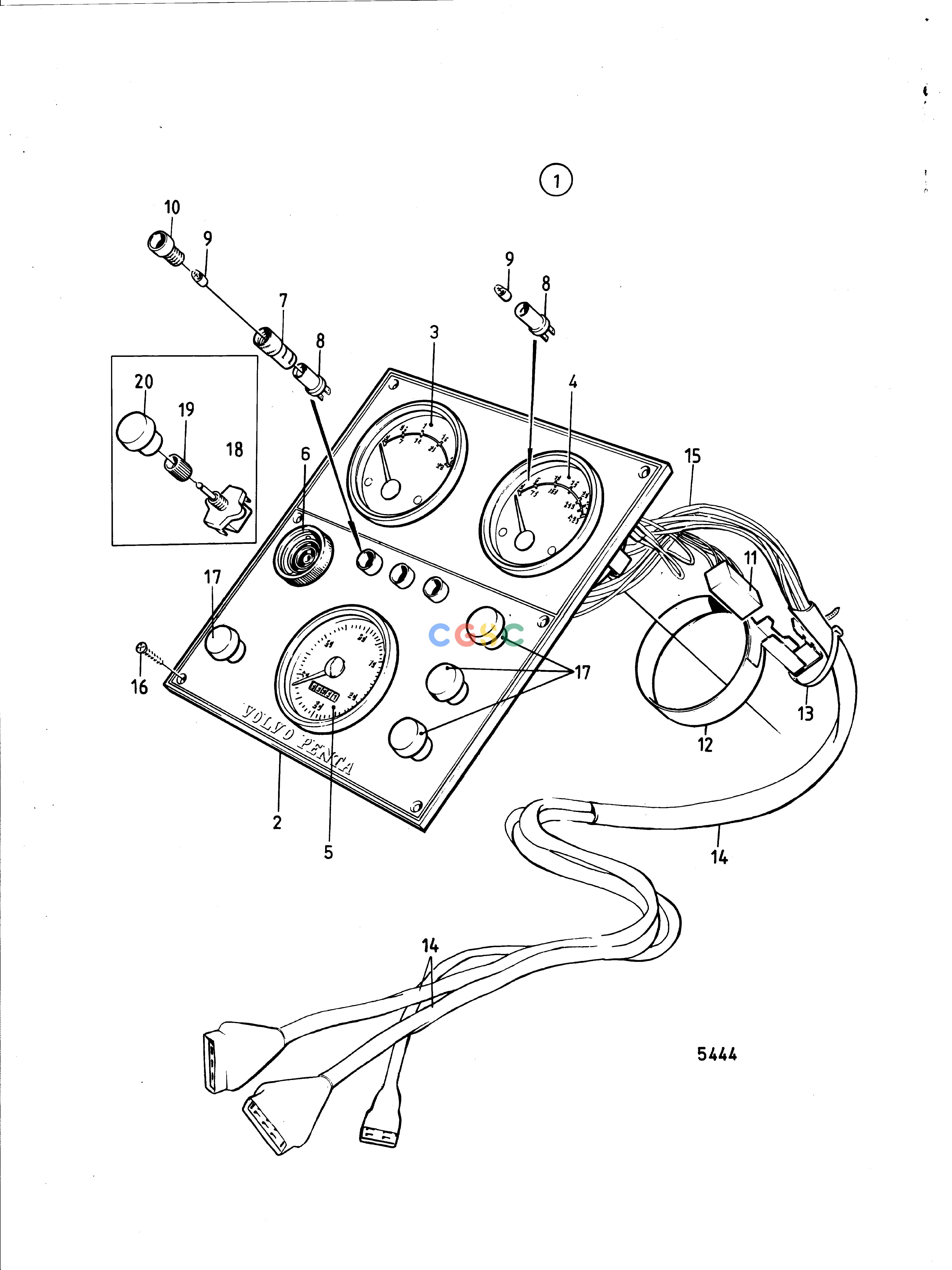

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemInstrument Panel: 837993EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
925 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837993
|
[1] |
Instrument panel
|
12V
|
| 2. |
837538
|
[1] |
Instrument plate
|
|
| 3. |
837755
|
[1] |
Instrument
|
|
| 4. |
837748
|
[1] |
Instrument
|
|
| 5. |
845479
|
[1] |
Hour counter
|
|
| 6. |
827597
|
[1] |
Signalling device
|
|
| 7. |
819350
|
[3] |
Sleeve
|
|
| 8. |
808175
|
[6] |
Bulb socket
|
|
| 9. |
19923
|
[6] |
Bulb
|
|
| 10. |
827766
|
[3] |
Lens
|
|
| 11. |
837674
|
[1] |
Alarm separator
|
|
| 12. |
837859
|
[1] |
Anchorage
|
|
| 13. |
948210
|
[1] |
Cable tie
|
|
| 14. |
837997
|
[1] |
Cable block
|
|
| 15. |
7743260_076
|
|
cables and terminals screw
|
|
| 16. |
944540
|
[4] |
Screw
|
|
| 17. |
845071
|
[4] |
Plug
|
|
| 18. |
875819
|
[1] |
Switch
|
|
| 19. |
843002
|
[1] |
Nut
|
|
| 20. |
837726
|
[1] |
Knob
|
|
