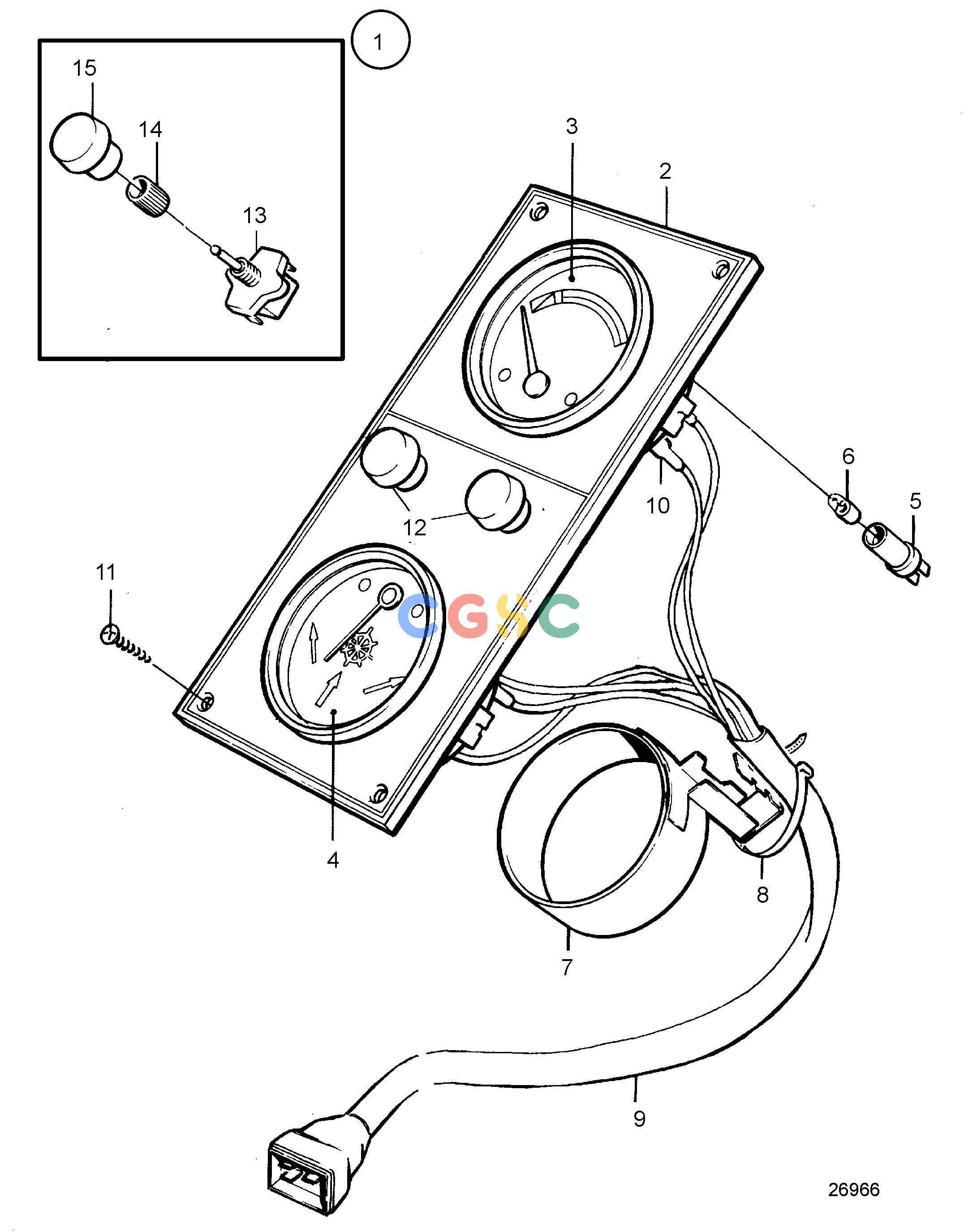

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemInstrument Panel: 837996EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
888 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837996
|
[1] |
Instrument panel
|
24V
|
| 2. |
837539
|
[1] |
Instrument plate
|
|
| 3. |
837761
|
[1] |
Tank gauge
|
|
| 4. |
837731
|
[1] |
Rudder indicator
|
|
| 5. |
808175
|
[2] |
Bulb socket
|
|
| 6. |
182059
|
[2] |
Bulb
|
|
| 7. |
837859
|
[1] |
Anchorage
|
|
| 8. |
948210
|
[1] |
Cable tie
|
|
| 9. |
837998
|
[1] |
Cable block
|
|
| 10. |
7743260_076
|
|
cables and terminals screw
|
|
| 11. |
944540
|
[4] |
Screw
|
|
| 12. |
845071
|
[2] |
Plug
|
|
| 13. |
875819
|
[1] |
Switch
|
|
| 14. |
843002
|
[1] |
Nut
|
|
| 15. |
837726
|
[1] |
Knob
|
|
