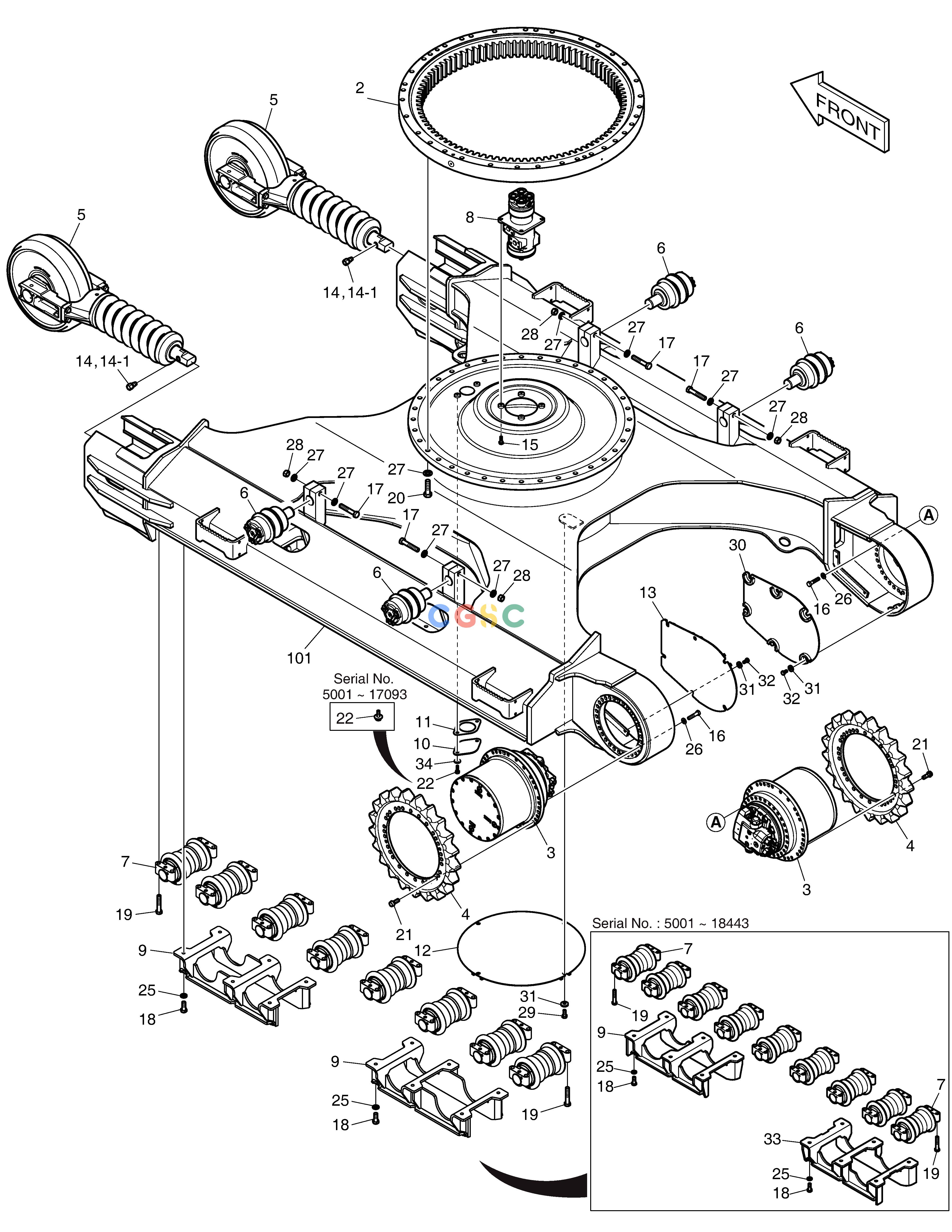

斗山零件查询TRACK FRAME - HEAVY DUTY(DX225LCA) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650105-00188
|
[-] |
|
|
| 10. |
621-02938B
|
[1] |
COVER
|
|
| 101. |
160617-00370
|
[1] |
|
|
| 101. |
160617-00370C
|
[1] |
|
|
| 11. |
180-00463
|
[1] |
PACKING
|
|
| 12. |
110513-01301
|
[1] |
|
110513-01301A
|
| 12. |
110513-01301A
|
[1] |
|
|
| 13. |
110508-14174A
|
[1] |
|
|
| 14. |
422-00055
|
[2] |
VALVE;GREASE
|
|
| 14. |
410143-00002
|
[2] |
|
|
| 14-1. |
401106-00230
|
[1] |
SEAL
|
|
| 14-1. |
401106-00513
|
[1] |
|
|
| 15. |
S0515366
|
[4] |
BOLT
|
|
| 16. |
S0565666
|
[60] |
BOLT
|
|
| 17. |
S0571166
|
[4] |
BOLT
|
|
| 18. |
S0721466
|
[24] |
BOLT M16X1.5X40
|
|
| 19. |
S0765966
|
[72] |
BOLT
|
|
| 19. |
S0765966
|
[64] |
BOLT
|
|
| 2. |
140109-00048
|
[1] |
|
140109-00048A
|
| 2. |
140109-00048A
|
[1] |
|
|
| 20. |
S0770266
|
[36] |
BOLT M20X1.5X70
|
|
| 21. |
120-00050B
|
[60] |
BOLT;FLANGE
|
|
| 22. |
DS0025016
|
[2] |
BOLT
|
|
| 22. |
S0512266
|
[2] |
BOLT
|
|
| 25. |
K1014251
|
[24] |
WASHER;HARDEN
|
|
| 26. |
2114-1816A
|
[60] |
WASHER
|
|
| 27. |
2114-9012A
|
[44] |
WASHER
|
|
| 28. |
S4013133
|
[4] |
NUT
|
|
| 29. |
S0515266
|
[4] |
BOLT
|
|
| 3. |
170401-00039B
|
[2] |
|
|
| 30. |
110508-14175A
|
[1] |
|
|
| 31. |
120810-00100
|
[16] |
|
|
| 32. |
S0515066
|
[12] |
BOLT
|
|
| 33. |
200112-00102
|
[2] |
|
|
| 34. |
120804-00078
|
[2] |
WASHER
|
|
| 4. |
200108-00008A
|
[2] |
|
|
| 5. |
200101-00024B
|
[2] |
|
|
| 5. |
200101-00024E
|
[2] |
|
|
| 6. |
200105-00025
|
[4] |
|
|
| 6. |
200105-00022A
|
[4] |
|
|
| 7. |
200104-00044A
|
[18] |
|
|
| 7. |
200104-00044A
|
[16] |
|
|
| 8. |
400826-00011A
|
[1] |
JOINT,CENTER
|
|
| 9. |
200112-00101
|
[2] |
|
|
| 9. |
200112-00176
|
[4] |
|
|
