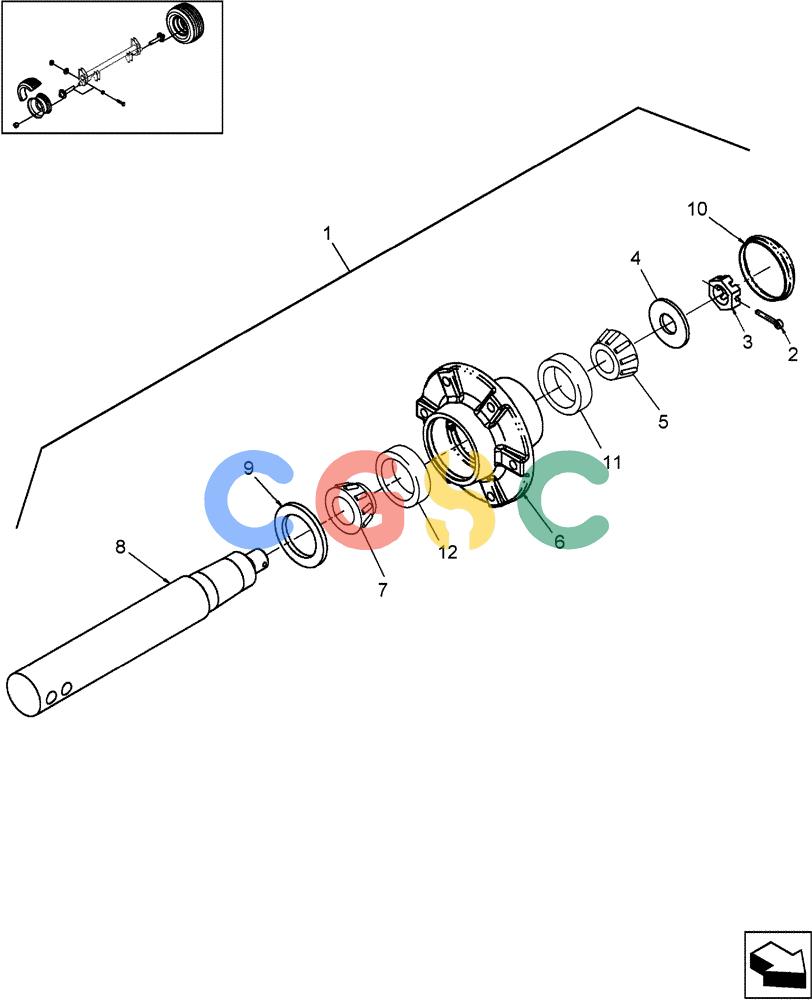

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (11.40) - WHEELS, HUB & SPINDLE, STANDARD DUTY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86974344
|
[1] |
HUB
|
PA
& Spindle, 2-Hole, Used with 14L-17 Tire & Wheel Superseded by part number: 87663732
|
| 1. |
84349225
|
[1] |
HUB
|
NH
& Spindle, 1-Hole
|
| 2. |
432-1220
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 3. |
603373
|
[1] |
JAM NUT,Slotted, 1" - 14, Gr 2
|
NH
Jam, G2, 1"-14 Superseded by part number: 143183
|
| 4. |
495-21106
|
[1] |
WASHER,1"
|
CAS
Superseded by part number: 87374
|
| 5. |
619386R91
|
[1] |
BEARING ASSY,1.7812" ID x 3.0625" OD x 0.7812"
|
IH
Superseded by part number: 86512027
|
| 6. |
86979537
|
[1] |
HUB
|
PA
|
| 7. |
533729R91
|
[1] |
ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"
|
IH
Cone Superseded by part number: 199954
|
| 8. |
86979855
|
[1] |
SPINDLE
|
PA
2-Hole, Used with 14L-17 Tire & Wheel
|
| 8. |
84349220
|
[1] |
SPINDLE
|
GI
1-Hole
|
| 9. |
245856
|
[1] |
OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk
|
NH
|
| 10. |
86900188
|
[1] |
CAP
|
PA
|
| 11. |
619387R1
|
[1] |
BEARING CUP
|
IH
Superseded by part number: 86512027
|
| 12. |
376463C1
|
[1] |
BEARING CUP
|
IH
Superseded by part number: 199955
|
