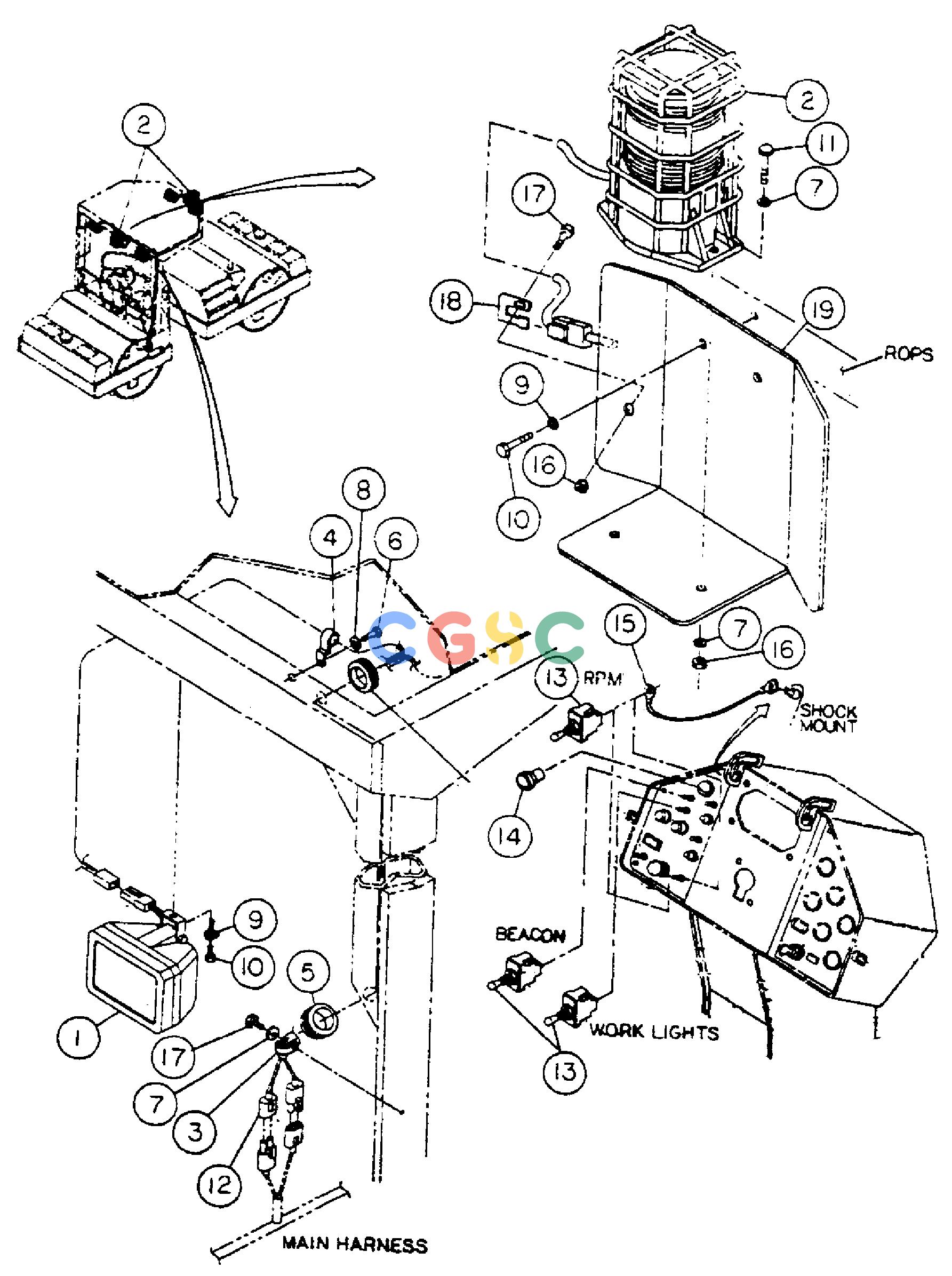

沃尔沃零件查询DD146HF HID/work light installationS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
277 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[4] |
Work lights
|
|
| 2. |
RM59083105
|
[2] |
Warning flasher
|
|
| 2. |
RM59023077
|
[1] |
Lens
|
|
| 2. |
RM59022871
|
[1] |
Bulb
|
|
| 3. |
RM59020206
|
[2] |
Clamp
|
|
| 4. |
RM59020305
|
[13] |
Clamp
|
|
| 5. |
RM59044099
|
[2] |
Grommet
|
|
| 6. |
RM96702394
|
[13] |
Hexagon screw
|
|
| 7. |
RM96738554
|
[10] |
Plain washer
|
|
| 8. |
VOE955892
|
[13] |
Plain washer
|
|
| 9. |
RM96712674
|
[8] |
Plain washer
|
|
| 10. |
RM96702659
|
[8] |
Hexagon screw
|
|
| 11. |
RM96705249
|
[4] |
Hexagon screw
|
|
| 12. |
RM59077552
|
[1] |
Cable harness
|
|
| 13. |
RM59950493
|
[2] |
Toggle switch
|
|
| 14. |
RM59039990
|
[1] |
Indicator lamp
|
|
| 15. |
RM59053470
|
[1] |
Ground Wire,jum
|
|
| 16. |
RM96705132
|
[6] |
Hexagon nut
|
|
| 17. |
RM96705744
|
[4] |
Hexagon screw
|
|
| 18. |
RM59048843
|
[2] |
Clip
|
|
| 19. |
RM59091017
|
[2] |
Bracket
|
|
