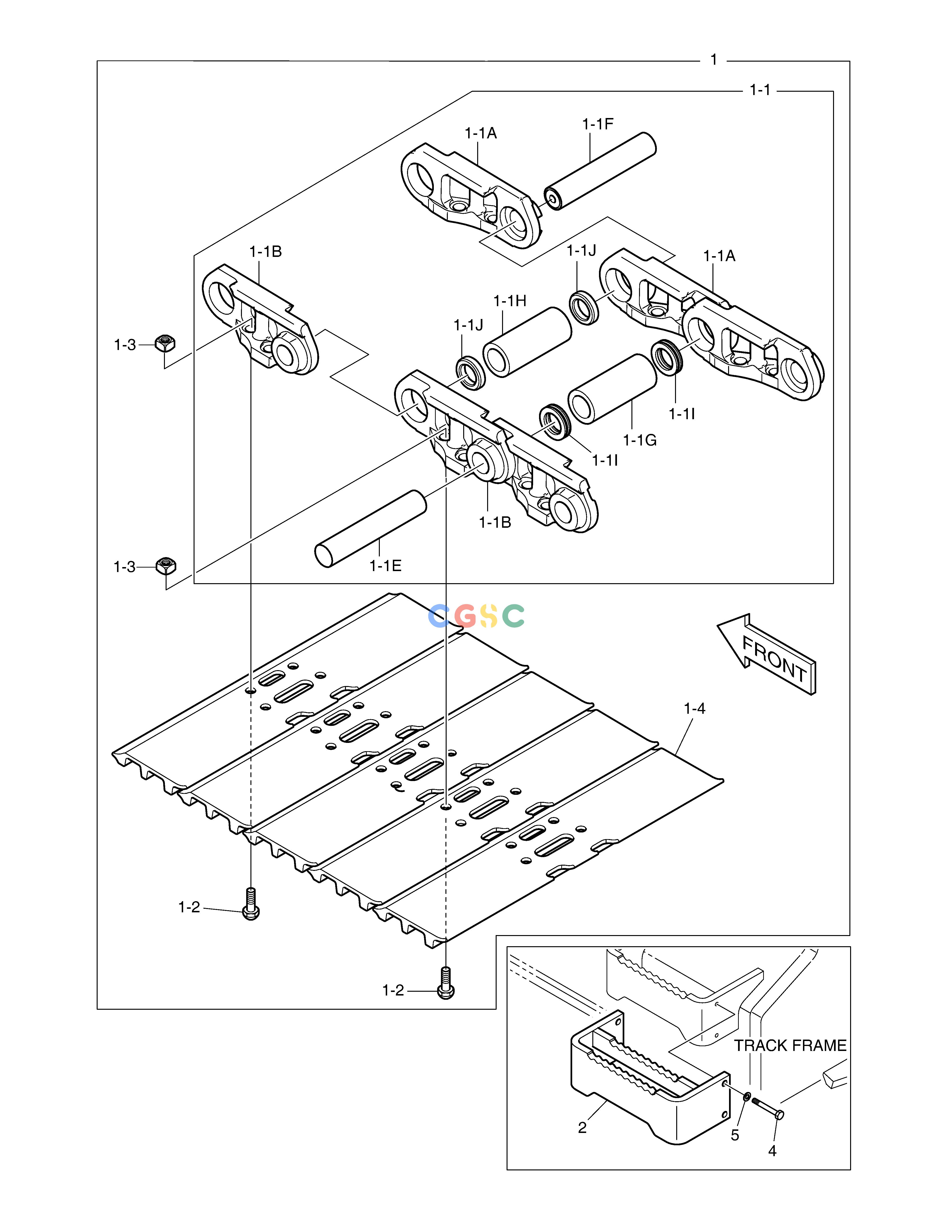

斗山零件查询TRACK SHOE ASS'Y - 800G(DX220A) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
303 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
200106-00440
|
[-] |
|
|
| 1. |
200106-00432
|
[2] |
|
|
| 1-1. |
200103-00084A
|
[1] |
|
|
| 1-1A. |
101539-00136
|
[45] |
|
|
| 1-1B. |
101539-00137
|
[45] |
|
|
| 1-1E. |
2123-6060
|
[44] |
PIN
|
|
| 1-1F. |
120501-01341
|
[1] |
|
|
| 1-1G. |
130702-00118
|
[44] |
|
|
| 1-1H. |
130702-00119
|
[1] |
|
|
| 1-1I. |
180-00441
|
[88] |
SEAL;DUST
|
|
| 1-1J. |
2114-6035
|
[2] |
SPACER
|
|
| 1-2. |
2120-6017
|
[180] |
BOLT
|
|
| 1-3. |
120312-00134
|
[180] |
|
|
| 1-4. |
200106-00262D3
|
[45] |
|
|
| 2. |
110955-00107B
|
[4] |
|
|
| 4. |
S0560466
|
[16] |
BOLT
|
|
| 5. |
S5102703
|
[16] |
WASHER
|
|
