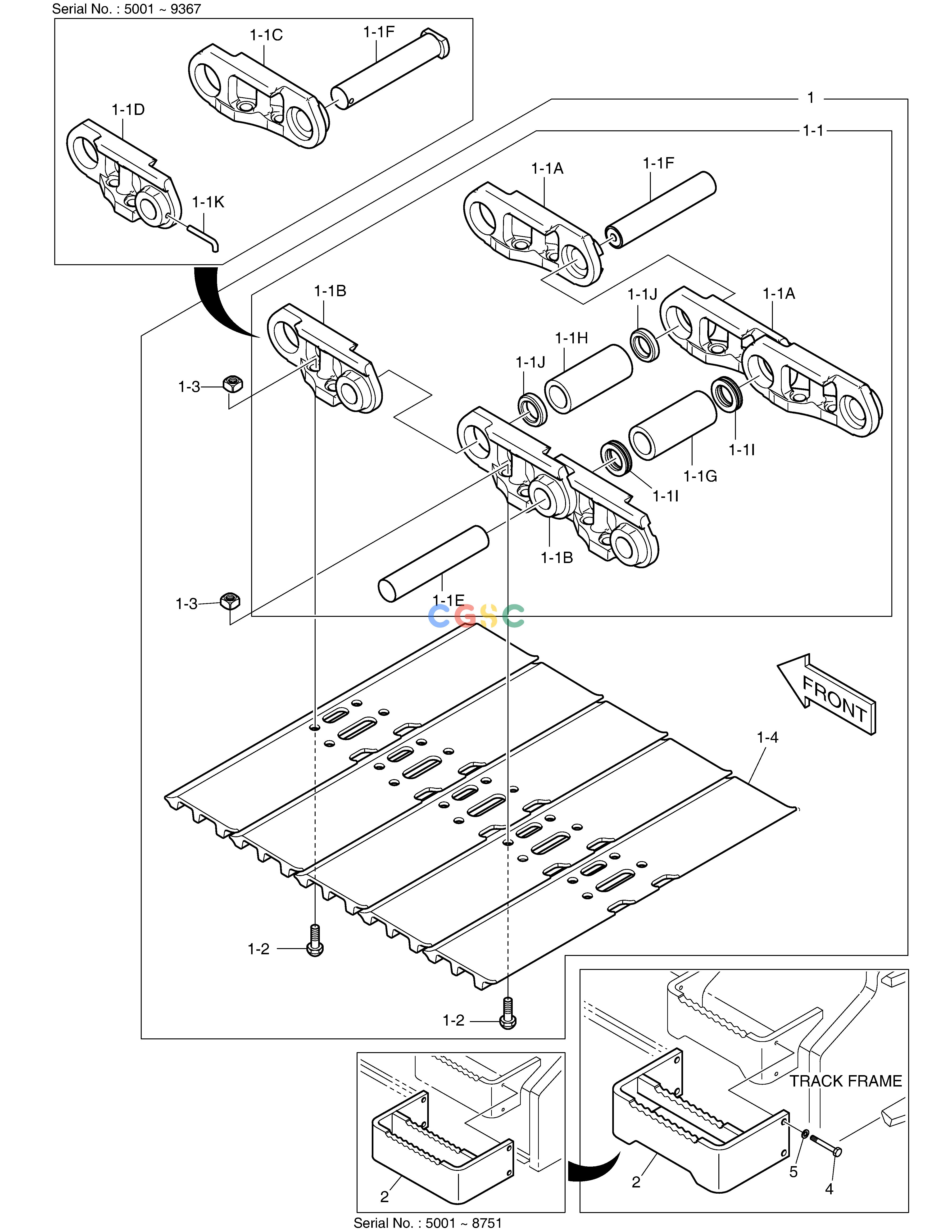

斗山零件查询TRACK SHOE ASS'Y - 900G(DX225LCA) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
298 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045591A
|
[-] |
TRACK SHOE ASS'Y
|
|
| -. |
200106-00319
|
[-] |
|
|
| 1. |
K1045508
|
[2] |
TRACK SHOE ASS'Y
|
200106-00349
|
| 1. |
200106-00349
|
[2] |
|
200106-00349A
|
| 1. |
200106-00349A
|
[2] |
|
|
| 1-1. |
K1038366
|
[1] |
TRACK LINK ASS'Y
|
200103-00102
|
| 1-1. |
200103-00102
|
[1] |
|
200103-00102A
|
| 1-1. |
200103-00102A
|
[1] |
|
|
| 1-1A. |
K1038367
|
[48] |
LINK;TRACK(RH)
|
|
| 1-1A. |
K1038367
|
[49] |
LINK;TRACK(RH)
|
|
| 1-1B. |
K1038368
|
[48] |
LINK;TRACK(LH)
|
|
| 1-1B. |
K1038368
|
[49] |
LINK;TRACK(LH)
|
|
| 1-1C. |
K1038429
|
[1] |
LINK;MASTER(RH)
|
|
| 1-1D. |
K1038430
|
[1] |
LINK;MASTER(LH)
|
|
| 1-1E. |
K1038369
|
[48] |
PIN
|
|
| 1-1F. |
K1038370
|
[1] |
PIN;MASTER
|
|
| 1-1F. |
120501-01370
|
[1] |
|
|
| 1-1G. |
K1038371
|
[48] |
BUSHING
|
|
| 1-1H. |
K1038372
|
[1] |
.. BUSHING,MASTER
|
|
| 1-1I. |
K1038373
|
[96] |
.. SEAL,DUST
|
|
| 1-1J. |
K1038374
|
[2] |
.. SPACER
|
|
| 1-1K. |
K1038376
|
[1] |
PIN;SMALL
|
|
| 1-2. |
K1038377
|
[196] |
BOLT
|
|
| 1-3. |
K1038378
|
[196] |
. NUT
|
|
| 1-4. |
K1045480
|
[49] |
SHOE 900mm
|
|
| 2. |
K1050309
|
[4] |
STEP
|
110955-00108
|
| 2. |
110955-00108
|
[4] |
|
110955-00108A
|
| 2. |
110955-00108A
|
[4] |
|
|
| 2. |
110955-00108C
|
[4] |
|
|
| 4. |
S0558266
|
[16] |
BOLT
|
|
| 4. |
S0560466
|
[16] |
BOLT
|
|
| 5. |
S5102603
|
[16] |
. WASHER
|
|
| 5. |
S5102703
|
[16] |
WASHER
|
|
