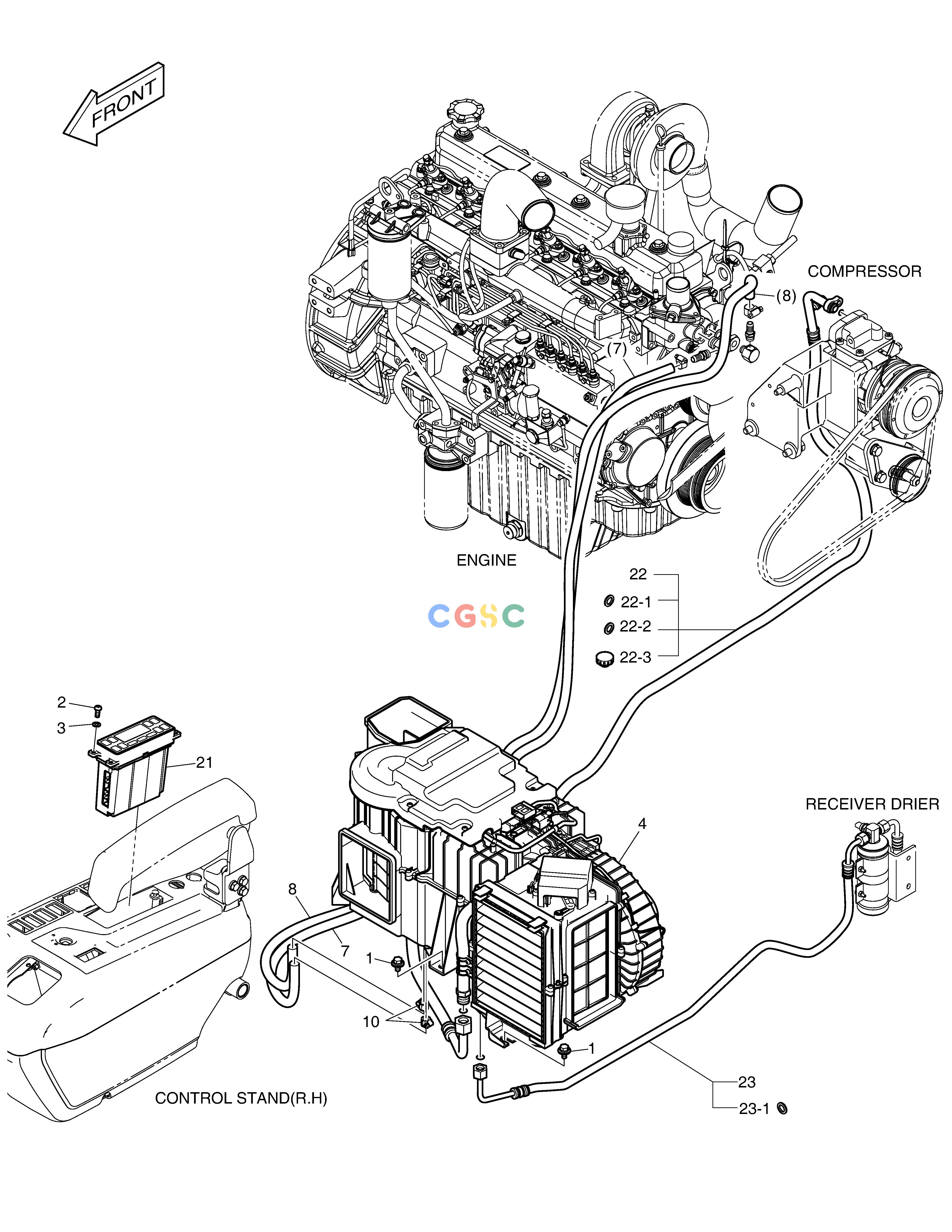

斗山零件查询VENTILATION - ROPS DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
827 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00579
|
[-] |
|
|
| 1. |
DS0025033
|
[6] |
BOLT
|
|
| 10. |
DS2807026
|
[2] |
|
|
| 2. |
S3450833
|
[4] |
BOLT
|
|
| 21. |
543-00107
|
[1] |
CONTROL PANEL,AIR CON
|
|
| 22. |
K1001278C
|
[1] |
HOSE;SUCTION
|
|
| 22. |
420102-00630A
|
[1] |
|
|
| 22-1. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 22-2. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 22-3. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 23. |
K1001280C
|
[1] |
HOSE;LIQUID(2)
|
|
| 23-1. |
K1011388
|
[2] |
O-RING
|
|
| 3. |
S5000213
|
[4] |
. WASHER
|
|
| 4. |
440205-00033
|
[1] |
|
|
| 7. |
2185-1308D5
|
[1] |
HOSE;RUBBER
|
|
| 8. |
2185-1308D5
|
[1] |
HOSE;RUBBER
|
|
