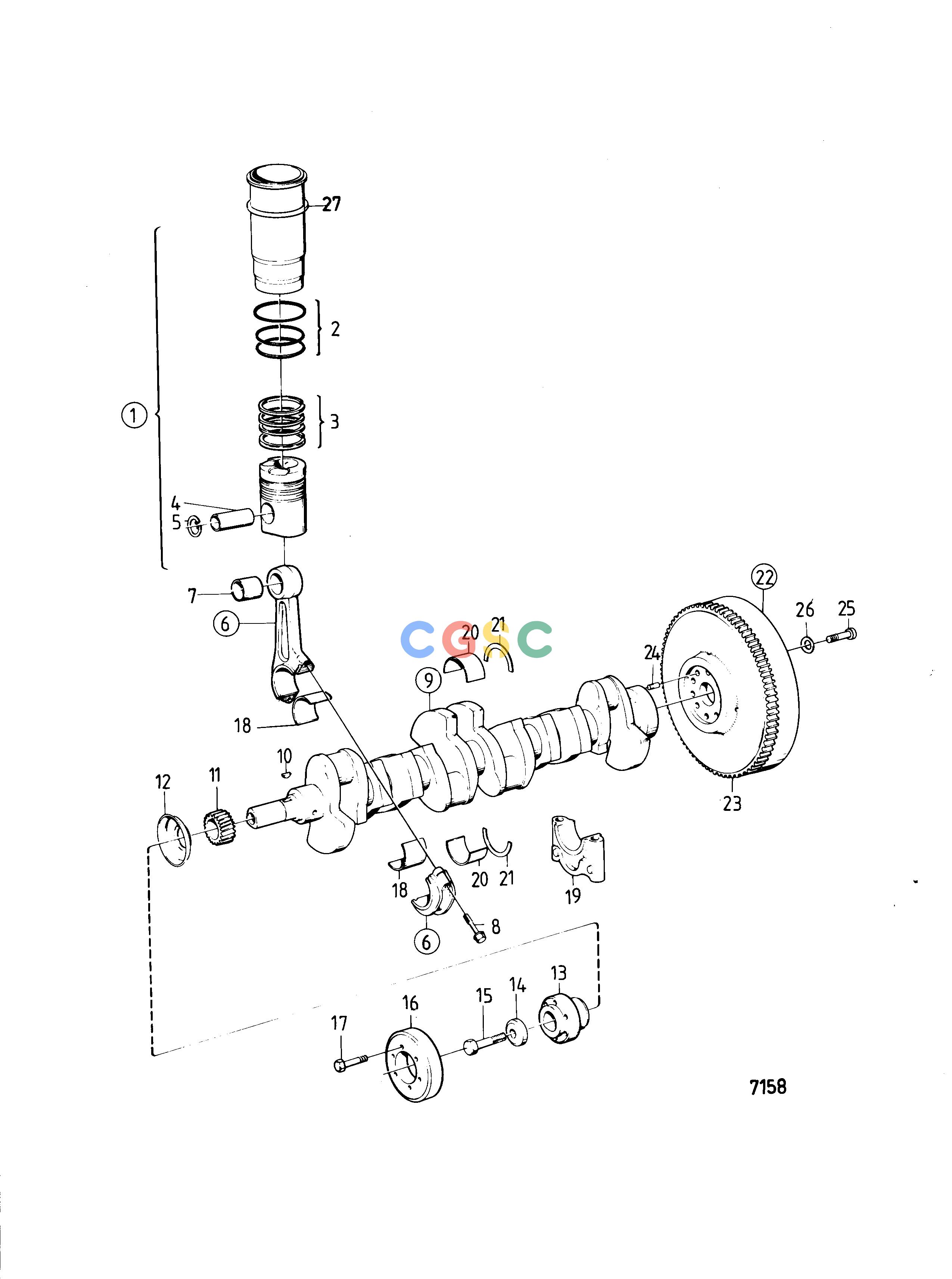

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EEngineCrankshaft and Related PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
767 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
875677
|
[6] |
Cylinder liner kit
|
|
| 2. |
275735
|
[6] |
Sealing ring kit
|
|
| 3. |
275375
|
[6] |
Piston ring kit
|
|
| 4. |
421033
|
[6] |
Gudgeon pin
|
Std D
|
| 4. |
421300
|
[6] |
Gudgeon pin
|
0,05mm o.s
|
| 4. |
421302
|
[6] |
Gudgeon pin
|
0,20mm o.s
|
| 5. |
914525
|
[12] |
Snap ring
|
|
| 6. |
843678
|
[6] |
Connecting rod
|
|
| 7. |
471364
|
[6] |
Bushing
|
|
| 8. |
420126
|
[12] |
Hexagon screw
|
|
| 9. |
847998
|
[1] |
Crankshaft
|
|
| 10. |
422253
|
[1] |
Woodruff key
|
|
| 11. |
421080
|
[1] |
Crankshaft gear
|
|
| 12. |
420172
|
[1] |
Oil deflector
|
|
| 13. |
836304
|
[1] |
Hub
|
|
| 14. |
420124
|
[1] |
Washer
|
|
| 15. |
417464
|
[1] |
Screw
|
|
| 16. |
844675
|
[1] |
Vibration damper
|
|
| 17. |
955548
|
[8] |
Hexagon screw
|
|
| 18. |
270115
|
[6] |
Big-end bearing kit
|
Std D
|
| 18. |
270116
|
[6] |
Big-end bearing kit
|
0,25mm u.s
|
| 18. |
270117
|
[6] |
Big-end bearing kit
|
0,50mm u.s
|
| 18. |
270118
|
[6] |
Big-end bearing kit
|
0,75mm u.s
|
| 18. |
270119
|
[6] |
Big-end bearing kit
|
1,00mm u.s
|
| 18. |
270120
|
[6] |
Big-end bearing kit
|
1,25mm u.s
|
| 19. |
7743260_002
|
|
bearing cap
|
|
| 20. |
270432
|
[7] |
Main bearing kit
|
Std D
|
| 20. |
270433
|
[7] |
Main bearing kit
|
0,25mm u.s
|
| 20. |
270434
|
[7] |
Main bearing kit
|
0,50mm u.s
|
| 20. |
270435
|
[7] |
Main bearing kit
|
0,75mm u.s
|
| 20. |
270436
|
[7] |
Main bearing kit
|
1,00mm u.s
|
| 20. |
270437
|
[7] |
Main bearing kit
|
1,25mm u.s
|
| 21. |
276754
|
[1] |
Thrust washer kit
|
Std D
|
| 21. |
276755
|
[1] |
Thrust washer kit
|
0,1mm o.s
|
| 21. |
276756
|
[1] |
Thrust washer kit
|
0,2mm o.s
|
| 21. |
276757
|
[1] |
Thrust washer kit
|
0,3mm o.s
|
| 22. |
848350
|
[1] |
Flywheel
|
|
| 23. |
420067
|
[1] |
Gear ring
|
|
| 24. |
950677
|
[1] |
Pin
|
|
| 25. |
944710
|
[6] |
Hexagon screw
|
|
| 26. |
467773
|
[6] |
Washer
|
|
| 27. |
466114
|
[1] |
Adjusting washer
|
TH=0.2mm
|
| 27. |
466183
|
[1] |
Adjusting washer
|
TH=0.3mm
|
| 27. |
466184
|
[1] |
Adjusting washer
|
TH=0.5mm
|
