纽荷兰零件查询(CV2000) - VIBRATORY ROLLER (10-006-00[01]) - HYDRAULIC CIRCUIT - OPERATOR'S COMPARTMENT TILTING CYLINDER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
582 次

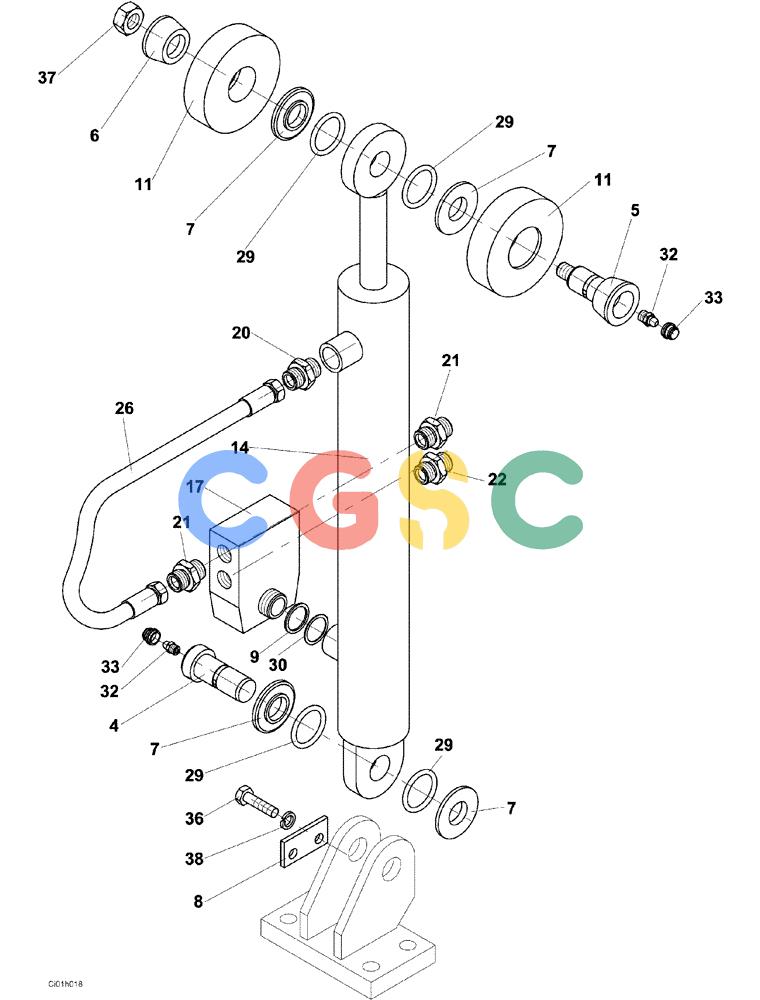

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | ND049262 | [1] | PIN | STA |
| 5. | ND049272 | [1] | SCREW | STA |
| 6. | ND049270 | [1] | NUT | STA |
| 7. | ND049260 | [4] | INSERT | STA |
| 8. | ND049268 | [1] | COVER PLATE | STA |
| 9. | ND098409 | [1] | WASHER | STA |
| 11. | ND054249 | [2] | SPACER | STA |
| 14. | ND068088 | [1] | CYLINDER | STA Superseded by part number: ND102044 |
| 17. | ND067917 | [1] | LOCK VALVE | STA Superseded by part number: ND067918 |
| 20. | ND062198 | [1] | HYD CONNECTOR | STA |
| 21. | ND062200 | [2] | HYD CONNECTOR | STA |
| 22. | ND062221 | [1] | HYD CONNECTOR | STA |
| 26. | ND061935 | [1] | HOSE | STA |
| 29. | ND079727 | [4] | O-RING | STA33 x 2,5 |
| 30. | ND073355 | [1] | SEAL | STA |
| 32. | ND070133 | [2] | LUBE NIPPLE,M10 x 1 | STA |
| 33. | ND064758 | [2] | PLUG | STA |
| 36. | ND021292 | [2] | BOLT | STA |
| 37. | ND026471 | [1] | NUT | STA |
| 38. | ND035940 | [2] | SPRING WASHER | STA |
