| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

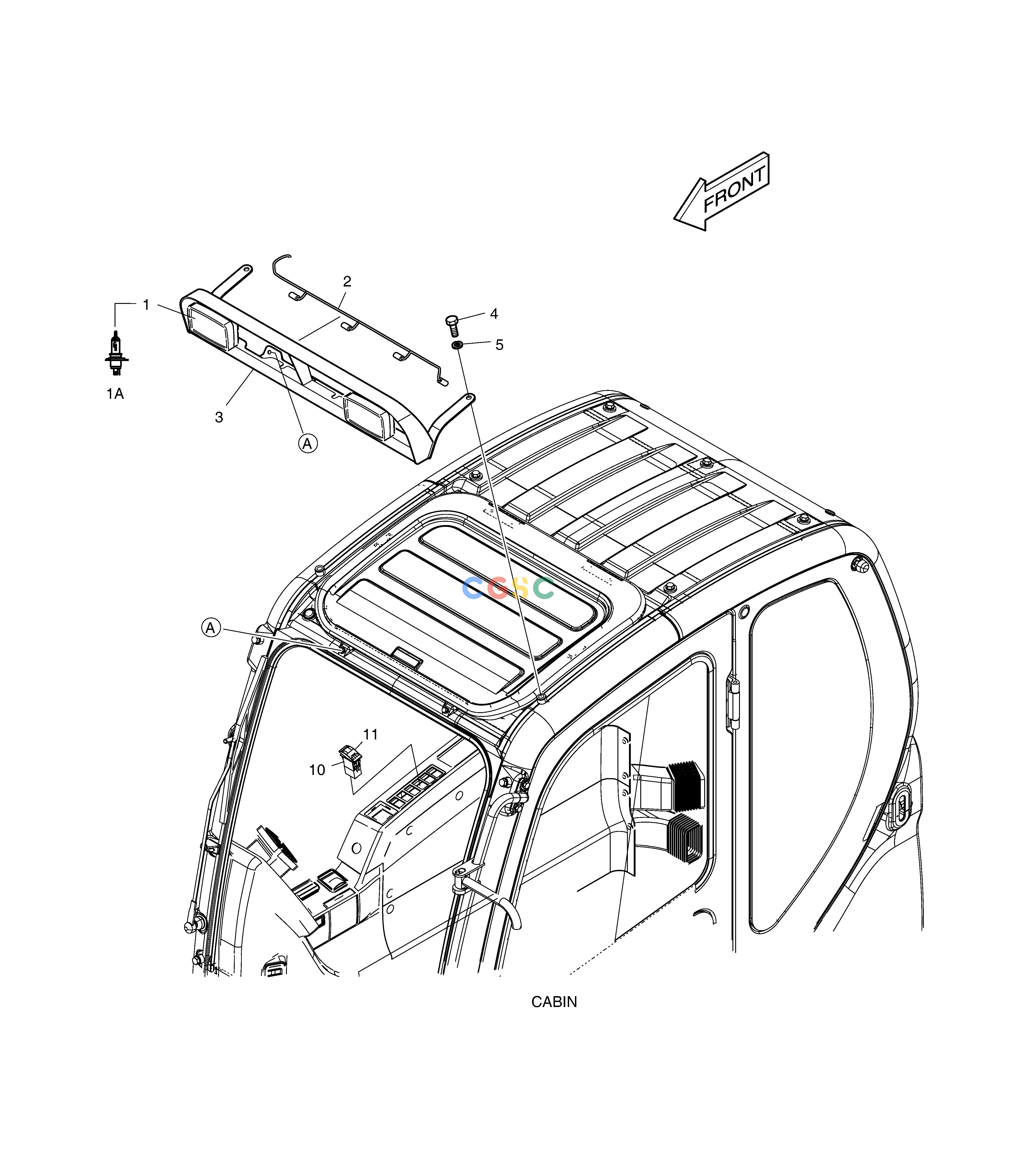

| -. | K1007403B | [-] | WORKING LAMP-2 LAMP | |
| -. | 300619-02738 | [-] | ||
| 1. | 534-00085 | [2] | LAMP | |
| 10. | 549-00103 | [1] | SWITCH | |
| 11. | K1002406D13 | [1] | ACTUATOR | |
| 1A. | 2515-1016D4 | [1] | . BULB,HALOGEN | |
| 2. | 530-00430A | [1] | HARNESS;FRONT LAMP | |
| 2. | 310207-02564B | [1] | HARNESS | |
| 3. | 195-02908E | [1] | BRACKET | |
| 4. | 2120-2166D54 | [2] | BOLT | |
| 5. | 2114-1898D6 | [2] | WASHER |
